EK-Quantum Torque 6-Pack HTC 16 - Black
- SKU: 13370818
- Manufacturer: ekwb
- MPN: 3831109824467
- Availability: CONTACT US

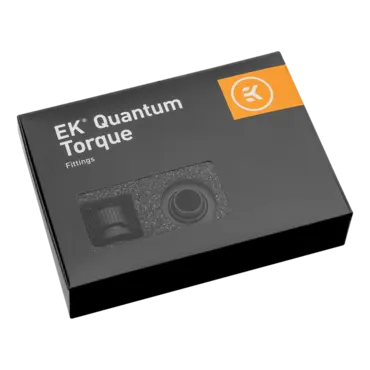

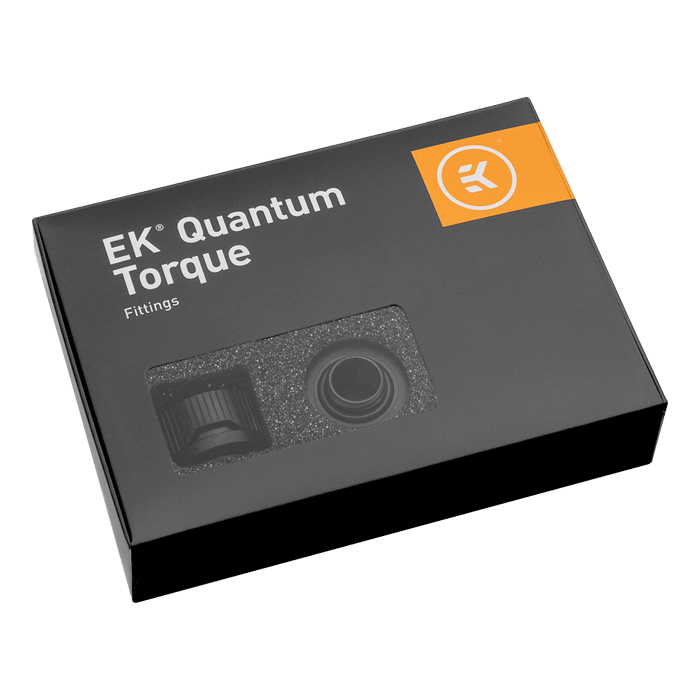

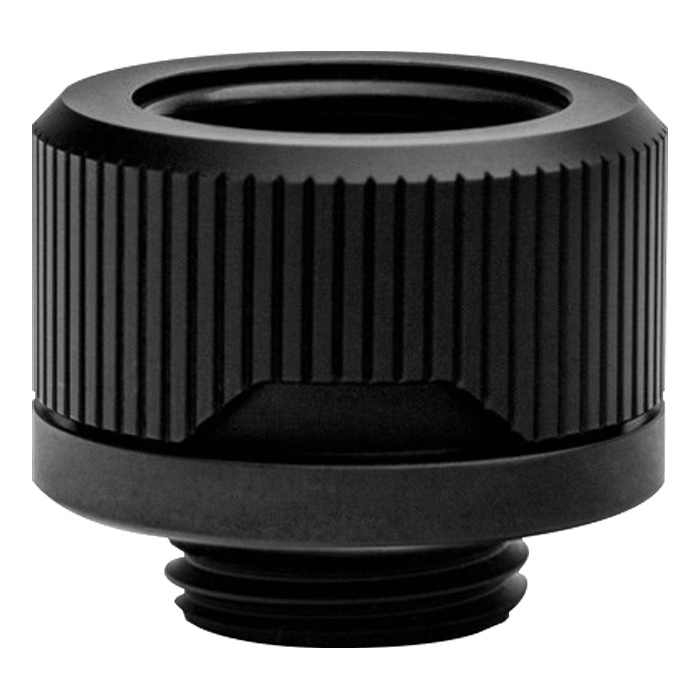

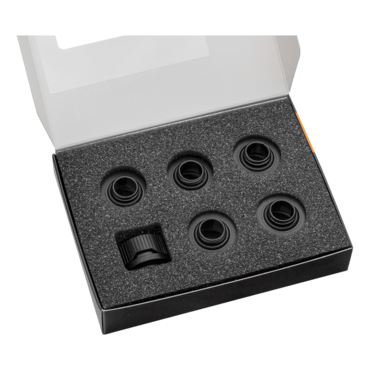

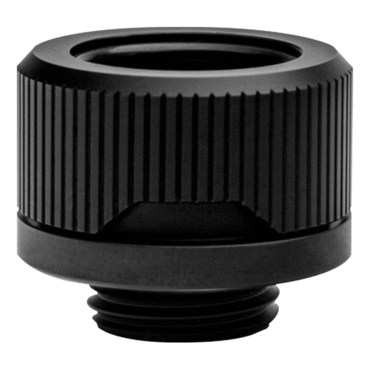

ekwb EK-Quantum Torque 6-Pack HTC 16 (3831109824467). EK-Quantum Torque 6-Pack HTC 16 is a fitting multipack containing six EK-Torque HTC fittings. These are EK's premium 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products. To make sure they are undamaged in transport, they are packed in a box cushioned in black foam.
Technical data:
- Finish: Satin black
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 16mm OD
- The outer diameter of a fitting: 24mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- The aesthetic rings are sold separately.
Additional Info
| Threads | G1/4 |
