EK-Quantum Torque HDC 12 - Black
- SKU: 13329427
- Manufacturer: ekwb
- MPN: 3831109814413
- Availability: CONTACT US
Price
$10.33

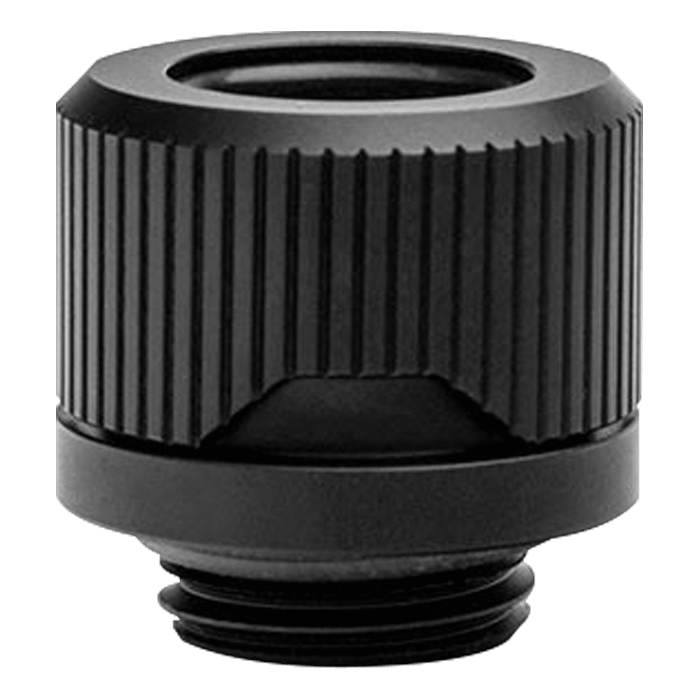

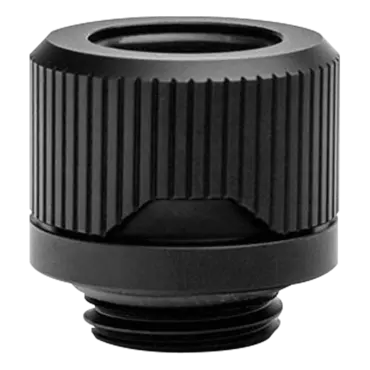

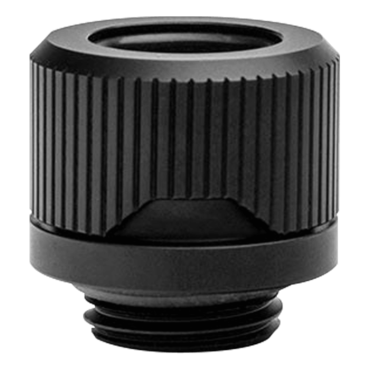

EK-Quantum Torque HDC 12 - Black
ekwb EK-Torque HTC-12 (3831109814413). EK-Torque HTC 12 fittings are EK's new minimalistic 12mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
Technical data:
- Finish: Satin black
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to use a =chamfer tool= on the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage.
- This product should NOT be installed with any aluminum =Fluid Gaming= parts!
- EK strongly recommends the use of =PETG inserts= with the use of PETG tubes.
- The aesthetic rings are sold separately.
Additional Info
| Material / Design / Color option | Black |
| Threads | G1/4 |
