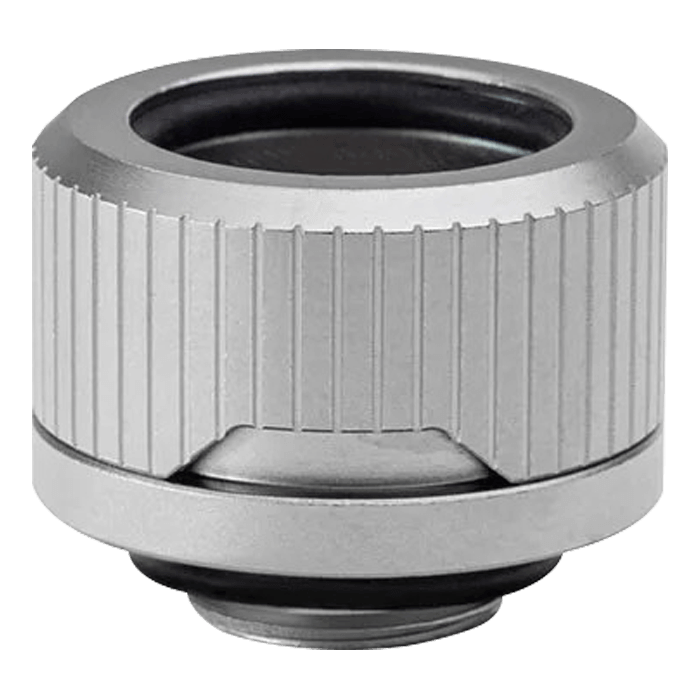

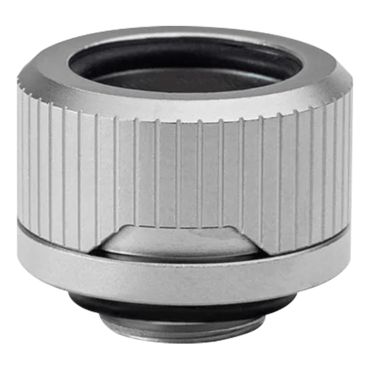

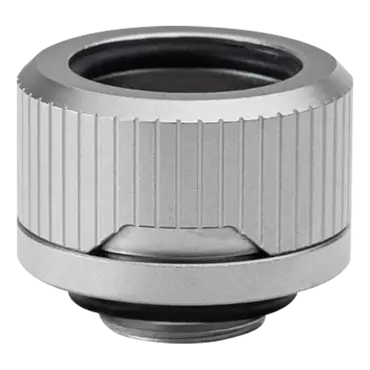

EK-Quantum Torque HDC 16 - Satin Titanium
- SKU: 13528676
- Manufacturer: EK
- MPN: 3831109823804
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
EKWB EK-Quantum Torque HDC 16 (3831109823804). EK-Quantum Torque HDC 16 fittings are EK's new minimalistic 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
Technical data:
- Material: Brass
- Finish: Satin Silver
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 16mm OD
- The outer diameter of a fitting: 24mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to use a chamfer tool on the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- EK strongly recommends the use of PETG inserts with the use of PETG tubes.
- Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
- The aesthetic rings are sold separately.
Additional Info
| Threads | G1/4 |
