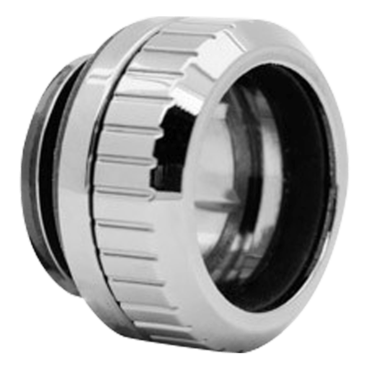

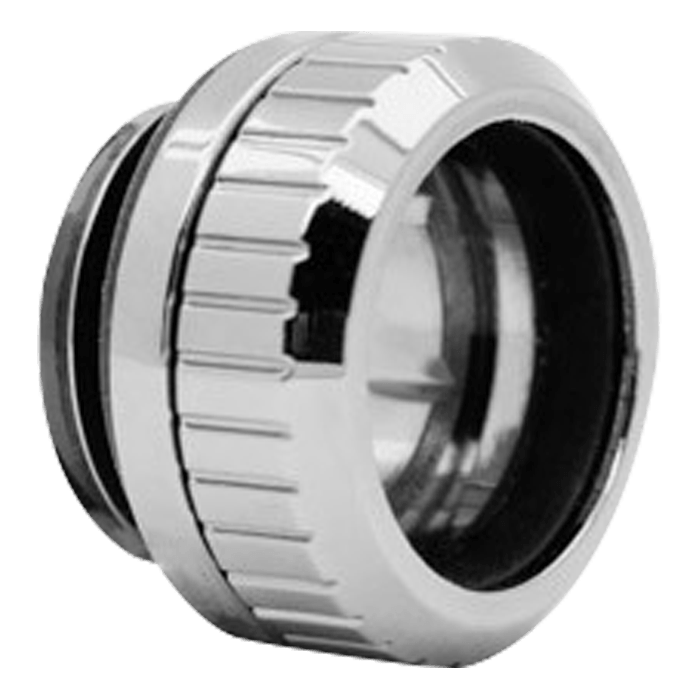

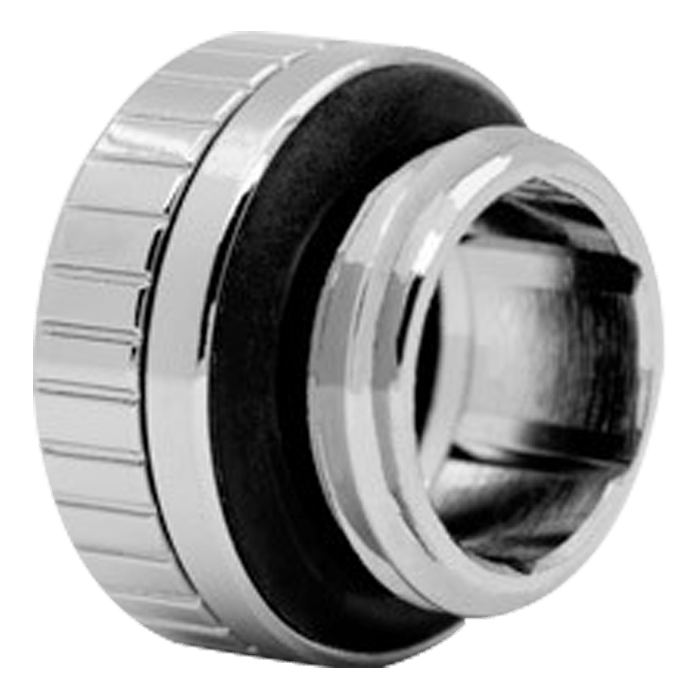

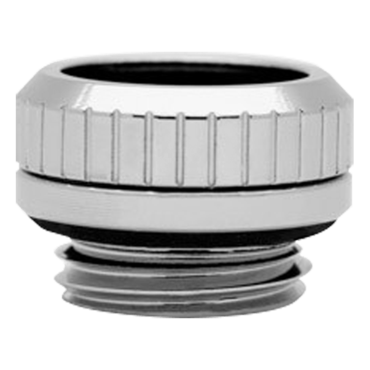

EK-Quantum Torque Micro HDC 12 - Nickel
- SKU: 15100868
- Manufacturer: EK
- MPN: 3831109837382
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Quantum Torque Micro HDC 12 (3831109837382). EK-Quantum Torque Micro HDC 12 - Nickel is a premium 12mm fitting made for solid tubing, such as acrylic, PETG, and brass. A much smaller footprint will allow tube placement in places where a regular fitting would be too large or inconvenient. It was named Micro due to an installed height of only 11.5mm, which is 23% shorter than standard Torque HDC 12 fittings. The outer diameter of the fitting is also significantly smaller than its bigger brother, with only 16mm across the fitting.
Technical data:
- Finish: Nickel
- Material: Brass
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 16mm
- Installed height: 11.5mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel, Glass.
Made in Europe - Slovenia!
| Material / Design / Color option | Nickel |
| Threads | G1/4 |
