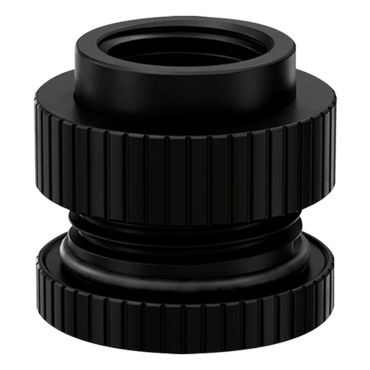

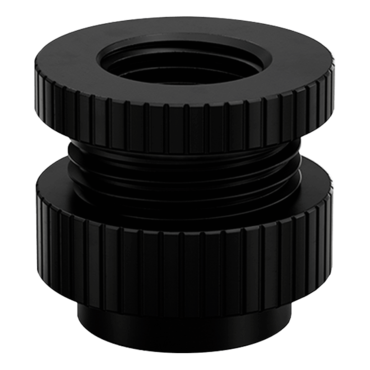

EK-Quantum Torque Pass-Through G1/4 - Black
- SKU: 16138692
- Manufacturer: EK
- MPN: 3831109905456
- Availability: LOW STOCK
EK-Quantum Torque Pass-Through G1/4 - Black
ekwb EK-Quantum Torque Pass-Through G1/4 (3831109905456). The EK-Quantum Torque Pass-Through G1/4 - Black is a panel-mounted adapter fitting. Equipped with female G1/4" BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.
Technical data:
- Threading: 2 x G 1/4" (Female-Female)
- Thread length: 4.5mm
- Hole Diameter: 20.0mm
- Max thickness of the wall to bridge: 6mm
- Installation height on the side of the screw: 4mm
- Installation height on the side of the nut: min 7mm/max 16mm
- Width: 23.0mm
- Length: 21.0mm
| Material / Design / Color option | Black |
| Threads | G1/4, G1/4 |
