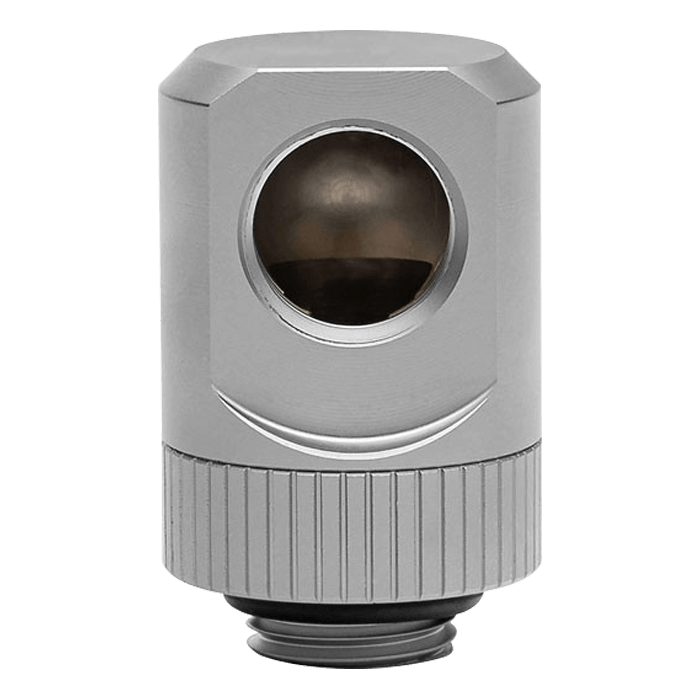

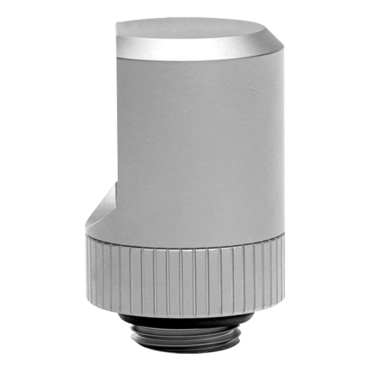

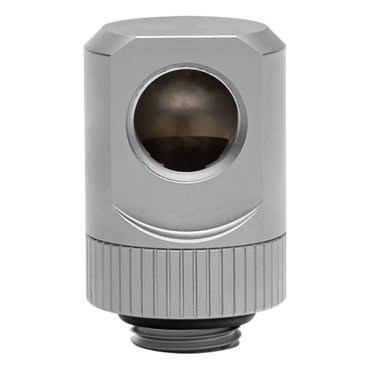

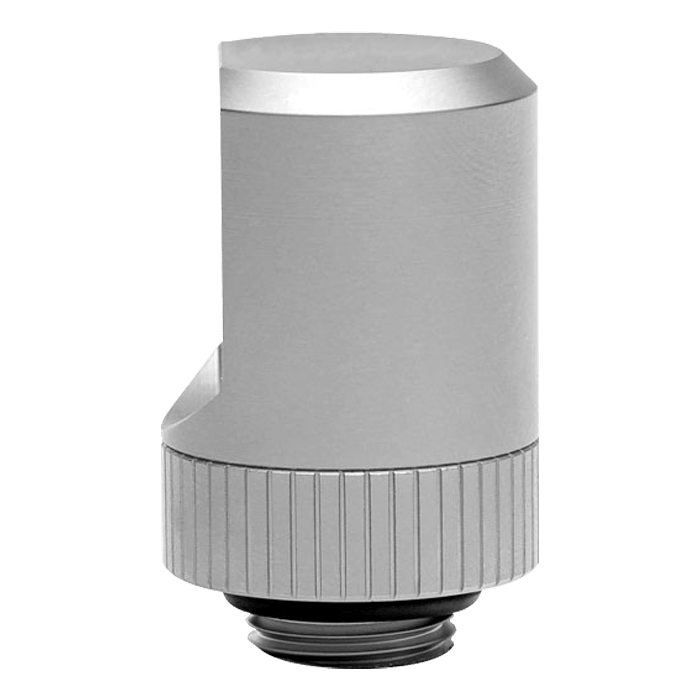

EK-Quantum Torque Rotary 90° - Satin Titanium
- SKU: 13528679
- Manufacturer: EK
- MPN: 3831109823903
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
EKWB EK-Quantum Torque Rotary 90° (3831109823903). EK-Quantum Torque Rotary (Adapter Fitting) is a revolvable angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality satin silver finish while the seal is made by quality rubber O-rings. Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. It is an extremely secure and sturdy piece that will last for many future builds.
Technical specifications:
- Material: Brass
- Finish: Satin Silver
- Threads:
* G1/4" BSP; 4,5mm male thread length
* G1/4" BSP; 6mm female thread length
- The outer diameter: 23mm
- Installed height: 31,5mm
- Sealed with high-quality NBR o-ring
PLEASE NOTE:
- Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
Additional Info
| Threads | G1/4 |
