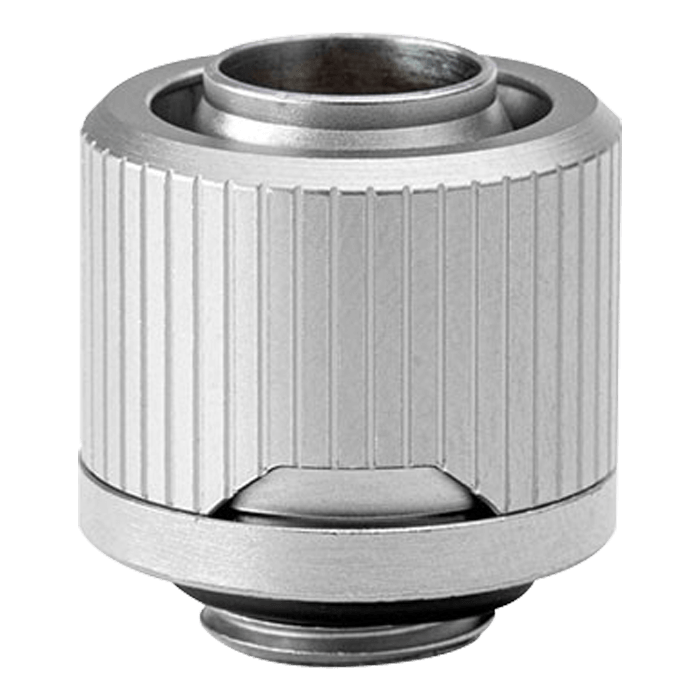

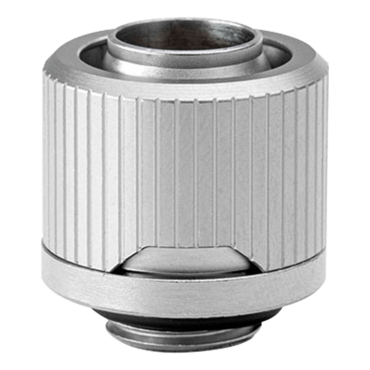

EK-Quantum Torque STC 12/16 - Satin Titanium
- SKU: 13528685
- Manufacturer: EK
- MPN: 3831109823866
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
EKWB EK-Quantum Torque STC 12/16 (3831109823866). EK-Quantum Torque STC 12/16 fittings are EK's new minimalistic 12/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
Technical data:
- Material: Brass
- Finish: Satin Silver
- Thread: G1/4" BSPP; 4.5mm male thread length
- Supported tube: 12/16mm (ID/OD)
- The outer diameter of a fitting: 23mm
- Installed height: 19mm
- Compatible soft tubing: PVC, EPDM, Norprene, silicone and most other flexible tubes
Made in Europe - Slovenia!
PLEASE NOTE:
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- The aesthetic rings are sold separately.
Additional Info
| Threads | G1/4 |
