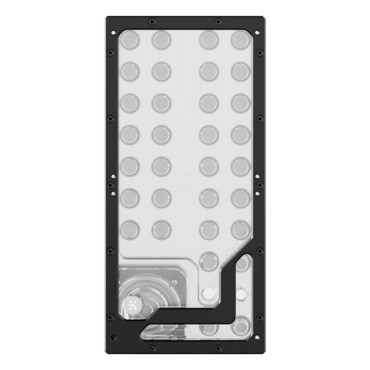

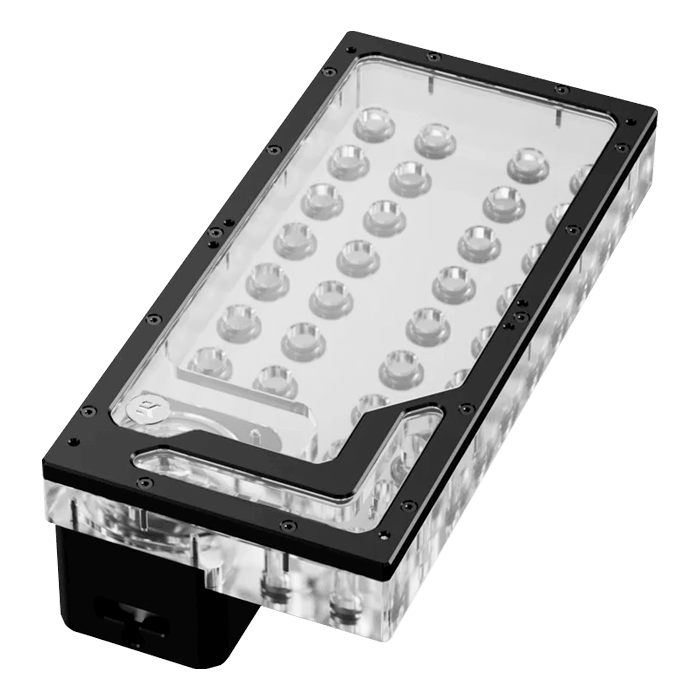

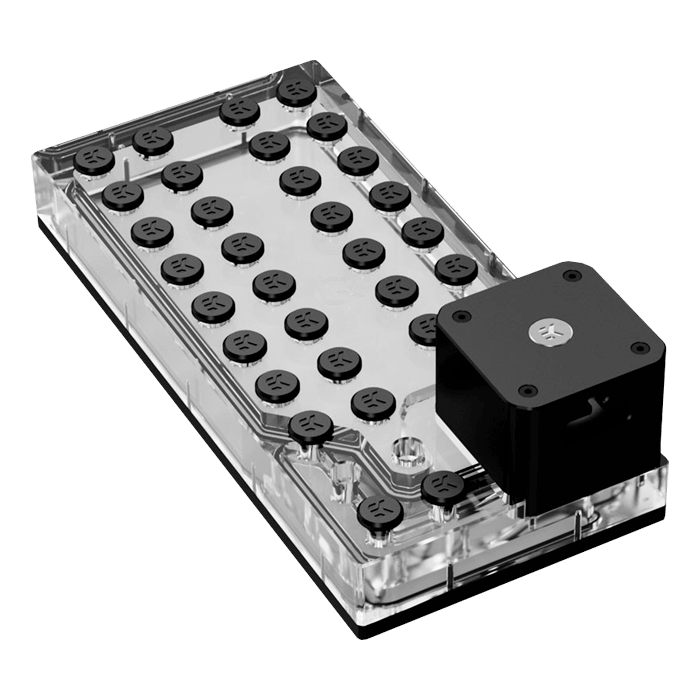

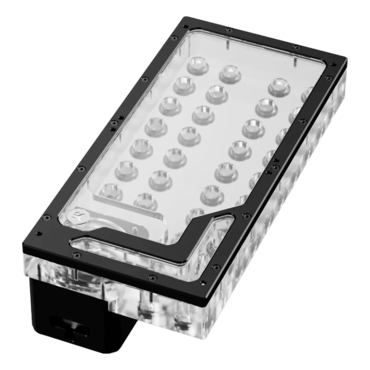

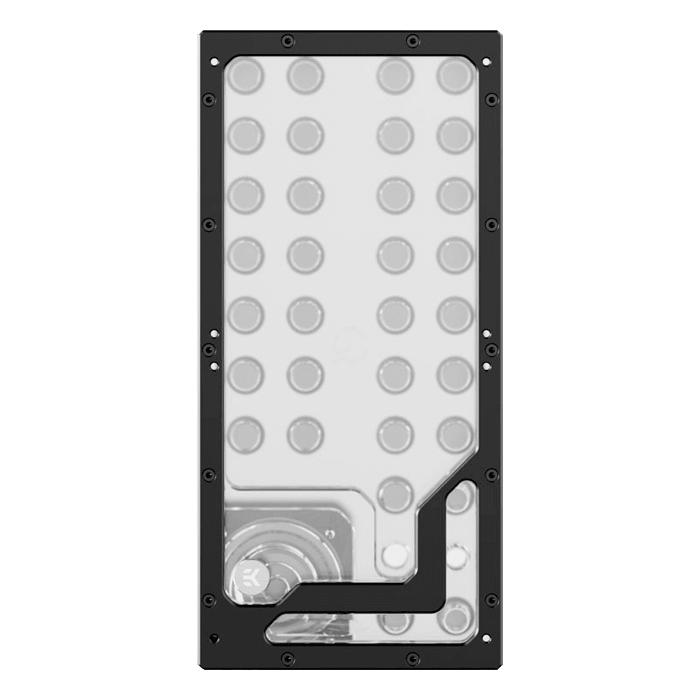

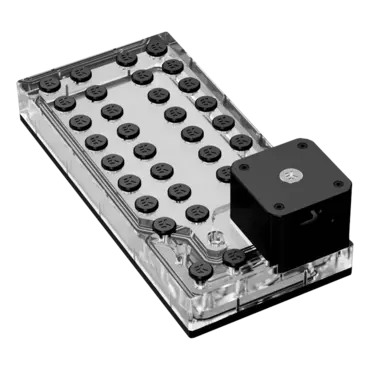

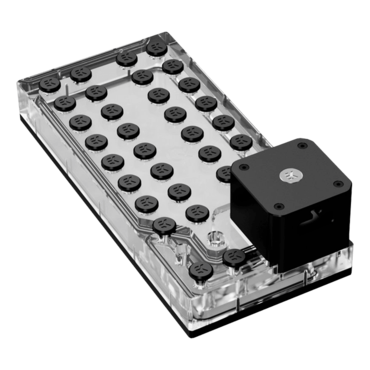

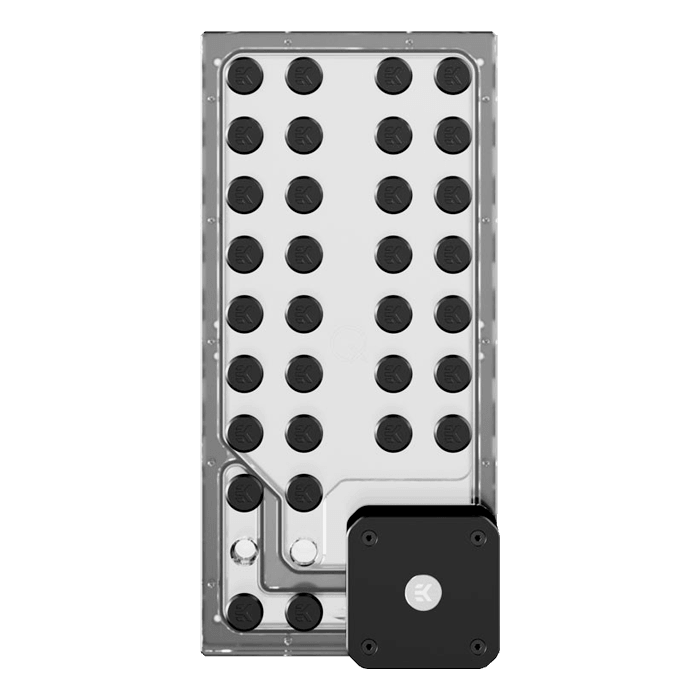

EK-QuantumX Loophole Distroplate D5 PWM - Black
- SKU: 17098307
- Manufacturer: EK
- MPN: 3831109908440
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-QuantumX Loophole Distroplate D5 PWM (3831109908440) is a custom water-cooling reservoir, routing, and pump solution that can be mounted on 140mm fan patterns inside the chassis (provided there’s enough room for it in the case). It is unique in the sense that there are no pre-made channels for coolant routing. Instead, the channels are built by the user. As the waterway has no prebuilt inner channels but rather an “open space” internal structure, the user can custom-route tubes from one port to another within the distro itself using micro 90-degree angled adapters and micro HDP or HDC fittings.
Reservoir:
– Dimensions with the attached pump (W x D x H): 140 x 87 x 294mm
– Reservoir volume: ~562ml
– G1/4″ ports: 34
– Plugs: 32 pieces with covers
– Frame: black anodized aluminum
– Pump cover: black anodized aluminum
Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
– EK-QuantumX Loophole Distroplate D5 PWM - Black
– EK-Quantum Convection D5 - Black
– 8x M3x20 7991DIN mounting screws
– 8x Acetal distancers
– 8x M4 0,8mm metal washer
– 1x 2,5mm Allen Key
– 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
– 32x Nickel-plated brass plugs
– 32x EK-Quantum Torque Plug cover - Black
Made in Slovenia - EU!
| Material / Design / Color option | Nickel Plexi |
| Threads | G1/4 |
