EK-Torque Angled 45° - Black

  • SKU: 13353812
  • Manufacturer: ekwb
  • MPN: 3831109814482
  • Availability: LOW STOCK
Starting At
EK-Torque Angled 45° - Black

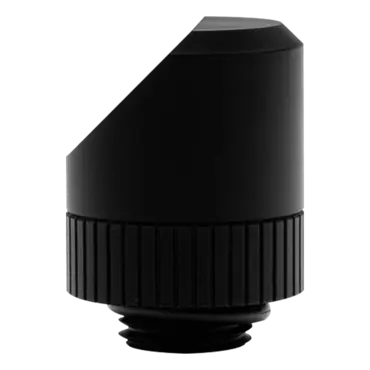

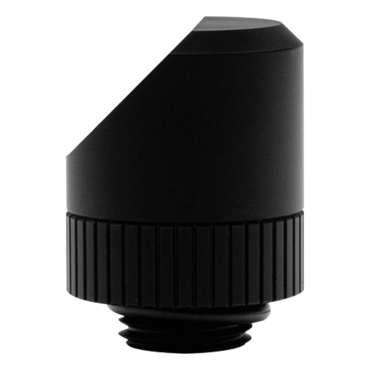

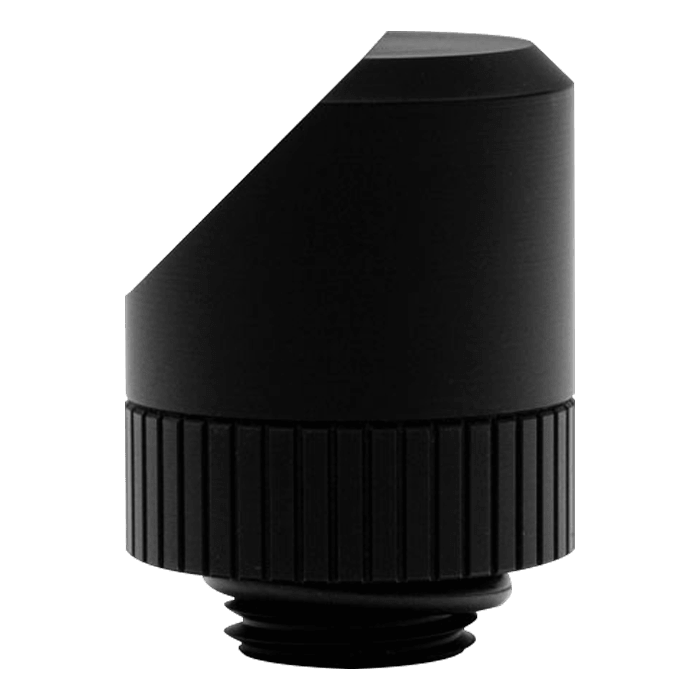

ekwb EK-Torque Angled 45° (3831109814482). EK-Torque (Adapter Fitting) - Black is a revolvable angled (45°) adapter fitting with G1/4" threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Satin Black finish while the seal is made by quality rubber O-rings. Black EK-Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. It is an extremely secure and sturdy piece that will last for many future builds.

Technical specifications:
- Material: made of nickel plated brass
- Threads:
* G1/4" BSP; 4,5mm male thread length
* G1/4" BSP, 6mm female thread length
- The outer diameter: 23mm
- Installed height: 26mm
- Sealed with high-quality NBR o-ring.

ROHS compliant!

Additional Info

Material / Design / Color option Black
Threads G1/4
