EK-Torque HTC-16 - Black

Quantity:
  • SKU: 13353218
  • Manufacturer: ekwb
  • MPN: 3831109815977
  • Availability: IN STOCK
Starting At
$7.49
Quantity:

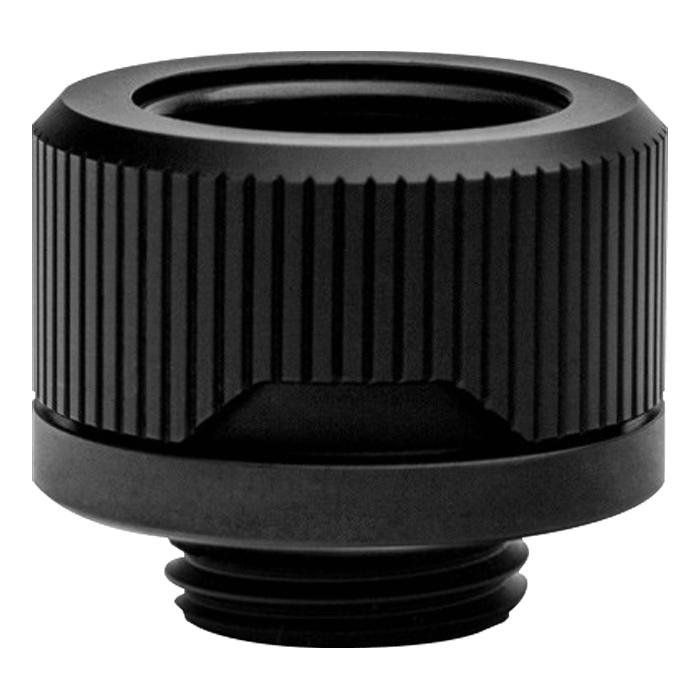

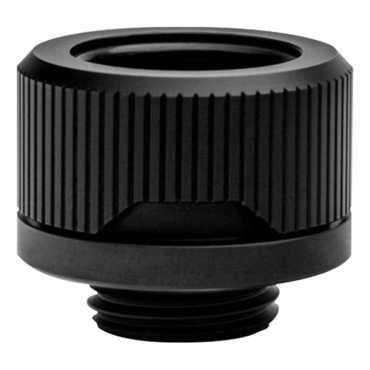

EK-Torque HTC-16 - Black

ekwb EK-Torque HTC-16 (3831109815977). EK-Torque HTC 16 fittings are EK's new minimalistic 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.

  • Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
  • Do not use excessive force when inserting solid tube!
  • Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
  • It is mandatory to use a chamfer tool on the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • EK strongly recommends the use of PETG inserts with the use of PETG tubes.
  • The aesthetic rings are sold separately.
Finish Satin black
Thread G1/4" BSP; 4.5mm male thread length
Supported tube 16mm OD
The outer diameter of a fitting 24mm
Installed height 15mm
Compatible solid tubing Acrylic, PETG, Copper, Brass, Stainless Steel
