EK-XRES 250 SPC PWM Classic RGB - Plexi (incl. pump)

  • SKU: 13306296
  • Manufacturer: ekwb
  • MPN: 3831109817421
  • Availability: LOW STOCK
Starting At
$73.49 $104.98

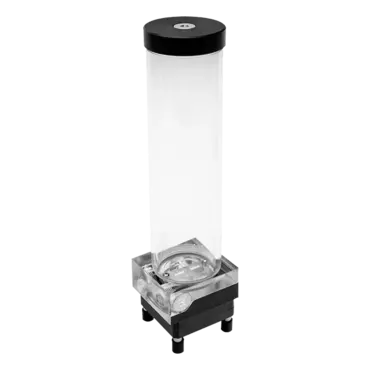

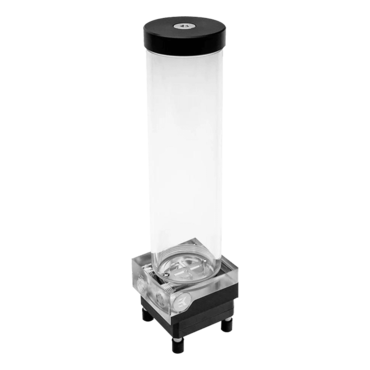

EK-XRES 250 SPC PWM Classic RGB - Plexi (incl. pump)

ekwb EK-XRES 250 SPC PWM Classic RGB (3831109817421). EK-XRES 250 SPC PWM Classic RGB – Plexi (incl. pump) is a value-oriented water cooling pump-reservoir combo. It has been designed to be an entry-class combo solution that is able to offer great hydraulic performance complemented with RGB LEDs for modern aesthetics. The combo unit comes with a 120mm fan mount holder included.

Pump electrical and mechanical properties:

- Motor: Electronically commuted motor
- Rated voltage: 12V DC
- Power consumption: 6W
- Maximum pressure head: 2.2m
- Maximum flow: 250 L/h
- Maximum system temperature: 50°C
- Materials: PPS-GF30, EPDM O-rings, Aluminium oxide, graphite
- Power connector: 4-Pin PWM FAN connector
- RGB connector - 4-pin 12V ( G R B )

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present


- Pump reservoir combo unit
- 120mm fan hole pattern mounting frame
- Mounting mechanism and all required screws and washers


  • The SPC pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
  • This product is NOT compatible with DDC Heatsink Housing!

Additional Info

Threads G1/4
