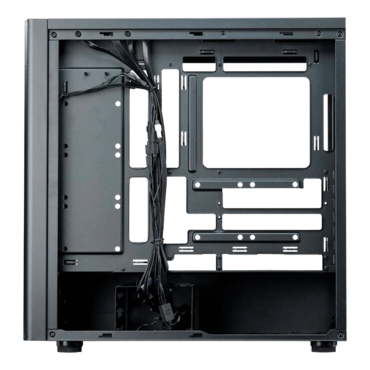

| Product Name |
ELITE 502 |
| Product Name |
ELITE 502 White |
| Model Number |
ELITE 502: E502-KGNN-S00 |
| Model Number |
ELITE 502 White: E502-WGNN-S00 |
| Color(s) |
ELITE 502: Black / ELITE 502 White: White |
| Materials - Exterior |
Steel |
| Materials - Right Side Panel |
Steel |
| Materials - Left Side Panel |
TG |
| Dimensions (L x W x H) |
474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions) |
| Volume (incl. Protrusions) |
49.73 L |
| Motherboard Support |
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm
motherboards, may impact cable management)
|
| Expansion Slots |
7 |
| 5.25" Drive Bays |
N/A |
| 3.5" Drive Bays |
2 |
| 2.5" Drive Bays |
2 (Max.6) |
| I/O Panel - USB Ports |
1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out |
3.5 mm Combo x 1 |
| Fan Support - Front |
(Filtered) 140 mm x 3 / 120 mm x 3 |
| Fan Support - Top |
(Filtered) 140 mm x 2 / 120 mm x 3 |
| Fan Support - Rear |
1x 120mm |
| Pre-installed Fans - Front |
3x 120mm ARGB Fans |
| Pre-installed Fans - Top |
N/A |
| Pre-installed Fans - Rear |
N/A |
| Radiator Support - Front |
120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm) |
| Radiator Support - Top |
120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear |
120mm |
| Clearance - CPU Cooler |
170mm |
| Clearance - PSU |
170 / 210mm (w/o HDD Cage) |
| Clearance - Graphics Card (installed 3.5"HDD BRK) |
360 / 410 mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray |
33-35 mm |
| Dust Filters |
Top, Front, Bottom |
| Power Supply Support |
ATX |
| Warranty |
2 years |
| Series |
Elite Series |
| Size |
Mid Tower |
