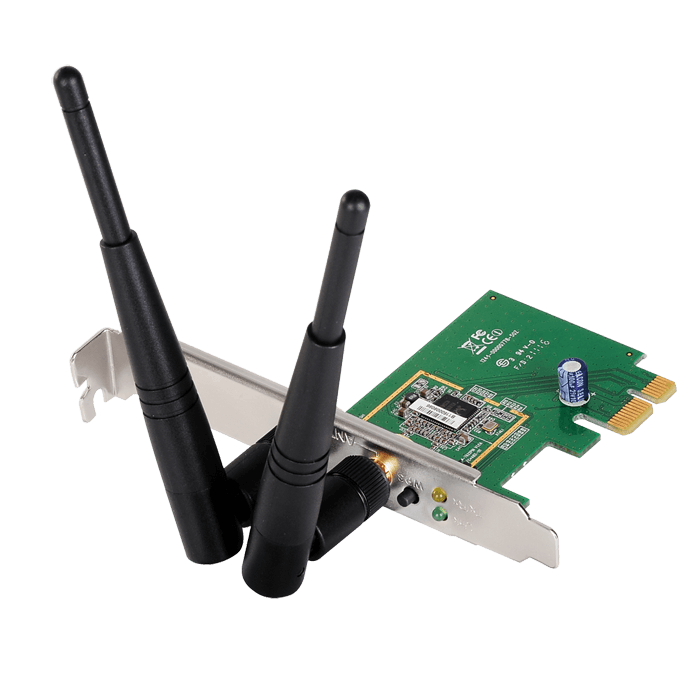

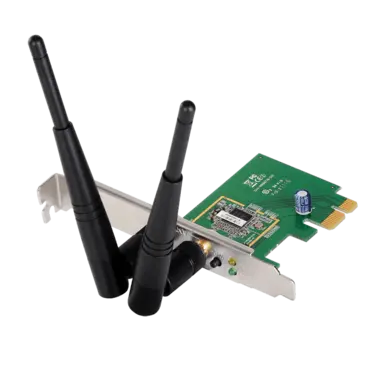

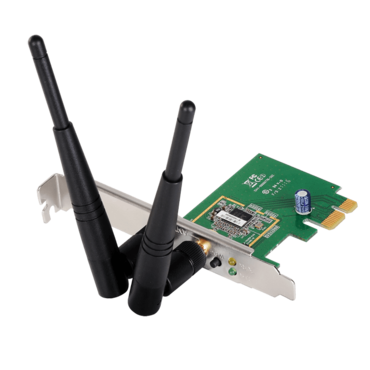

EW-7612PIn V2, N300, Single-Band, Wi-Fi 4, PCIe Wireless Adapter

  • SKU: 8543605
  • Manufacturer: EDIMAX
  • MPN: EW-7612PIN V2
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
EW-7612PIn V2, N300, Single-Band, Wi-Fi 4, PCIe Wireless Adapter

EW-7612PIn is a wireless PCI Express adapter that provides a simple and easy way to add or upgrade wireless connectivity to your desktop. This wireless PCI Express adapter supports higher data rates up to 300Mpbs when connected to a wireless 802.11n device. You can also connect to any public wireless hotspot for Internet access to retrieve email, surf web sites or use instant messaging. EW-7612PIn gives you the freedom to join the network.

  • Complies with wireless 802.11b/g/n standards with data rates up to 300Mbps.
  • Increases wireless coverage 4 times farther.
  • Built in 3dBi high-gain detachable antennas.
  • Includes multi-language EZmax setup wizard.
  • Supports 64-/128-bit WEP, WPA, WPA2 encryptions and WPS-compatibilities.
Model EW-7612PIn
Standards IEEE 802.11b/g/n
Wireless Data Rates Up to 300Mbps
Security 64/128 bit WEP Encryption and WPA-PSK
WPA2-PSK and WPS security
Interface PCI Express
Frequency Band 2.412 GHz - 2.462 GHz
Channels (FCC) 2.4GHz: 1~11
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DSSS
Antenna 2 x External 3dBi antenna
System Requirements OS: WinXP/Vista/Win7, Linux
Dimensions 2.6" x 1.7" (excluding antenna)
Temperature 0°C - 40°C (32°F - 104°F)
Humidity 10% - 90%, Non-Condensing
