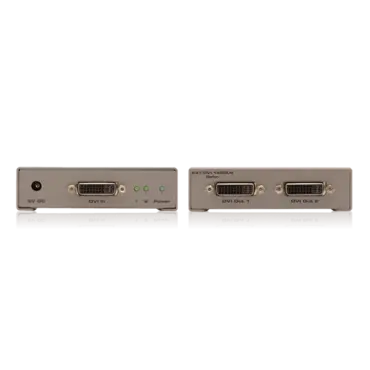

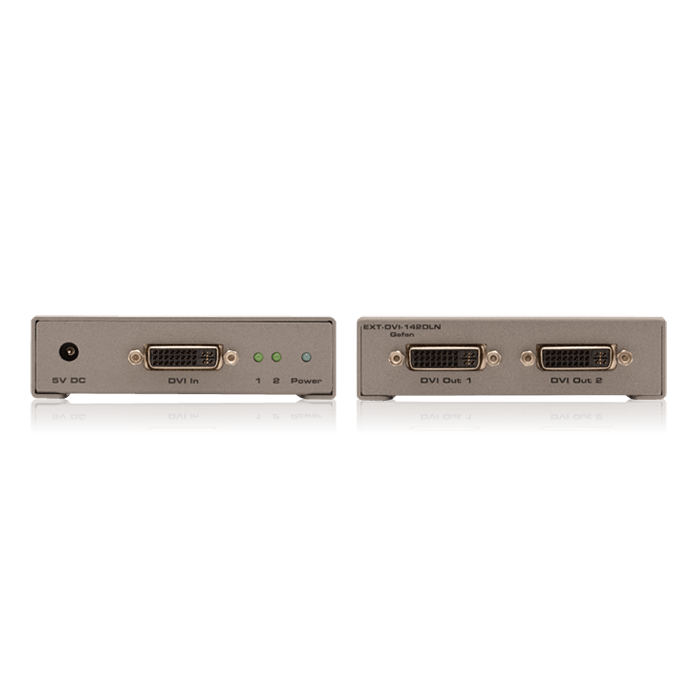

EXT-DVI-142DLN, 1 x 2 Dual-Link DVI Distribution Amplifier
One Dual Link DVI Source Splitter to two Dual Link DVI Outputs
The new and improved dual link 1:2 DVI DL Distribution Amplifier splits video using a dual link DVI source such as a computer to two DVI dual link outputs such as monitors, without losing picture quality or the high resolution. Multiple1:2 DVI DL units can be cascaded from one to the next to create a flexible Dual Link DVI distribution system that can connect to multiple displays.
- Split a Dual Link DVI signal to two DVI Dual Link outputs
- Allows simultaneous display of source on two screens
- Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
- Auto EQ compensates for any imperfections in the image
- Power On indicator
- DVI Link indicators
- Supports DDWG standard for DVI-compliant monitors
- HDCP pass-through on output #1
- Maximum Pixel Clock: 2 x 165 MHz
- Video Input Connector: (1) DVI-D, 29-pin, female
- Video Output Connectors: (2) DVI-D, 29-pin, female
- Power On indicator: (1) LED, blue
- Link indicators: (2) LED, green
- Power Consumption: 5 W (max.)
- Power Supply: 5V DC
- Operating Temperature: +32 to +104 °F (0 to +40 °C)
- Operating Humidity: 20% to 80% RH, non-condensing
- Storage Temperature: -4 to +140 °F (-20 to +60 °C)
- Storage Humidity: 20% to 90% RH, non-condensing
- MTBF: 50000 hours
- Dimensions (W x H x D): 4" x 1.25" x 3.25" (102mm x 32mm x 83mm)
- Shipping Weight: 2 lbs (0.9 kg)
