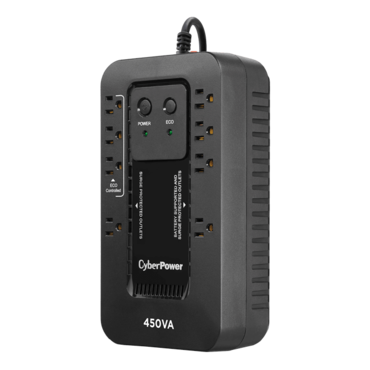

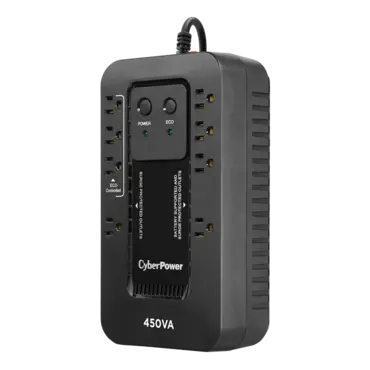

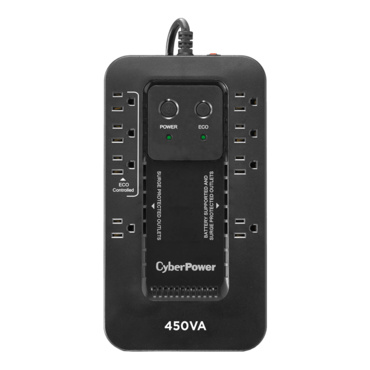

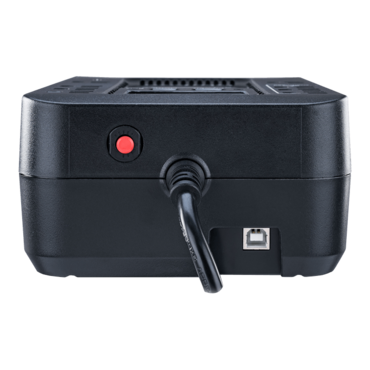

Ecologic EC450G, 450 VA/260 W, Simulated Sine Wave, Tower UPS
Quantity:
- SKU: 12785761
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: EC450G
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$62.95
- Capacity: 450 VA / 260 W
- Topology: Standby
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB
- Management software: PowerPanel® Personal
- Warranty: 3 year
- ENERGY STAR® certified: Yes
| General | |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Energy Star Certified | Yes |
| UPS Topology | Standby |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12V/2.9Ah |
| Battery Type | Sealed Lead-Acid |
| Runtime at Full Load | 2 minutes |
| Runtime at Half Load | 6 minutes |
| Runtimes | 11.5 min. (90W), 3.3 min. (200W) |
| Typical Recharge Time | 8 hours |
| User Replaceable | Replaceable by qualified technician |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 26.92 x 7.87 x 14.99 (cm) |
| Physical Dimensions – (WxHxD) (in) | 10.6 x 3.1 x 5.9 (in) |
| Physical Dimensions – (WxHxD) (mm) | 269 x 79 x 150 (mm) |
| Weight (kg) | 2.04 |
| Weight (lb) | 4.5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 2.49 |
| Shipping – Weight (lb) | 5.5 |
| Shipping Dimensions – (WxHxD) (cm) | 11.13 x 20.65 x 33.66 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 4.38 x 8.13 x 13.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 111.25 x 206.5 x 336.55 (mm) |
| Input | |
| Circuit Breaker | 10A |
| Cord Length (ft) | 5 ft |
| Frequency Range | 47 – 63 Hz |
| Input Voltage Range | 96-140Vac |
| Nominal Input Voltage | 120Vac |
| Plug Style | Right Angle, 45° Offset |
| Plug Type | NEMA 5-15P |
| Output | |
| On Battery Frequency | 50/60 Hz ± 1% (auto-sensing) |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Eco Controlled | 3 |
| Outlets – Surge-Only Protected | 4 |
| Outlets – Total | 8 |
| Outlets – Transformer-Spaced | 2 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
| Transfer Time | 4 ms |
| VA | 450 VA |
| Watts | 260 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression | 526 J |
| Management & Communications | |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Communication Cable | USB Cable |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On, ECO On/Off |
| Software | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Environmental | |
| Operating Elevation | 0 – 10,000 ft (0 – 3,000 m) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Elevation | 0 – 50,000 ft (0 – 15,000 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 3 Years Limited |
