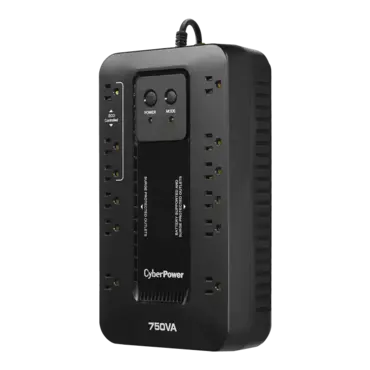

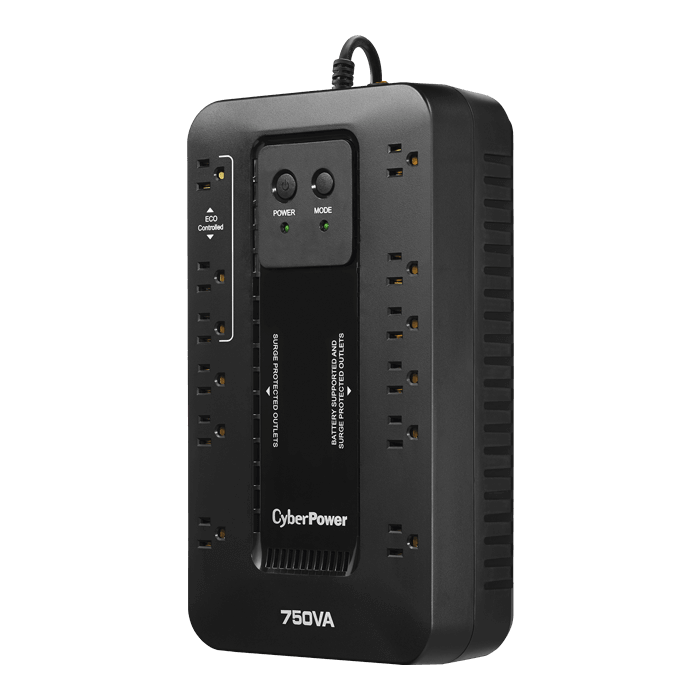

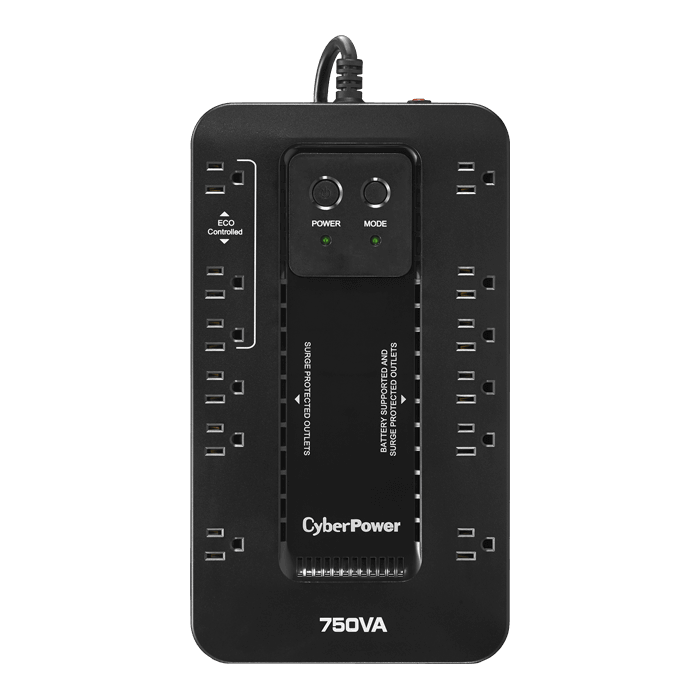

Ecologic EC750G, 750 VA/450 W, Simulated Sine Wave, Tower UPS

Quantity:
  • SKU: 7777359
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: EC750G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$98.95
Quantity:
  • Capacity: 750 VA / 450 W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 12 × NEMA 5-15R
  • Communication: USB
  • Management software: PowerPanel® Personal
  • Warranty: 3 year
General
Energy Saving GreenPower UPS™ High-Efficiency
Energy Star Certified Yes
UPS Topology Standby
Battery
Battery Type Sealed Lead-Acid Battery
Field-serviceable Battery Replaceable by qualified technician
Runtime at Full Load 2.8 min
Runtime at Half Load 10 min
Typical Recharge Time 8 Hours
Dimensions
Physical Dimensions – (WxHxD) (cm) 30.99 x 7.87 x 17.78 (cm)
Physical Dimensions – (WxHxD) (in) 12.2 x 3.1 x 7 (in)
Physical Dimensions – (WxHxD) (mm) 310 x 79 x 178 (mm)
Weight (kg) 3.49
Weight (lb) 7.7
Dimensions – Shipping
Shipping – Weight (kg) 4.31
Shipping – Weight (lb) 9.5
Shipping Dimensions – (WxHxD) (cm) 11.05 x 24.13 x 38.1 (cm)
Shipping Dimensions – (WxHxD) (in) 4.35 x 9.5 x 15 (in)
Shipping Dimensions – (WxHxD) (mm) 110.49 x 241.3 x 381.0 (mm)
Input
Cord Length 5 ft (2 m)
Input Frequency Range 47 – 63 Hz
Input Plug Type NEMA 5-15P
Nominal Input Voltage 120 VAC
Plug Style Right Angle – 45° Offset
Output
On Battery Frequency 50/60 Hz ± 1% (auto-sensing)
On Battery Voltage 120 VAC ± 5%
On Battery Waveform Simulated Sine Wave
Outlets – Battery & Surge Protected 6
Outlets – Eco Controlled 3
Outlets – Surge-Only Protected 6
Outlets – Total 12
Outlets – Widely Spaced 4
Overload Protection Internal Circuitry Limiting
Circuit Breaker Protected
Typical Transfer Time 4 ms
VA 750 VA
Watts 450 W
Management & Communications
Audible Alarms Battery Mode
Low Battery
Overload
HID Compliant USB Port Yes
LED Indicators Power On
ECO On/Off
Management Cable USB Cable
Software (Free Download) PowerPanel® Personal
Physical
Color Black
Form Factor Compact
Keyhole Mounting Slots Yes
Environmental
Operating Elevation 0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity 0 – 90 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Certifications
Environmental RoHS Compliant
Safety UL1778, cUL CSA C22.2 No.107.3-05, FCC/DoC Class B
Surge Protection & Filtering
EMI/RFI Filtration Yes
Surge Suppression (Joules) 526
Warranty
Connected Equipment Guarantee Lifetime
Extended Warranty Option WEXT5YR-U1B
Product Warranty 3 Years Limited Warranty
