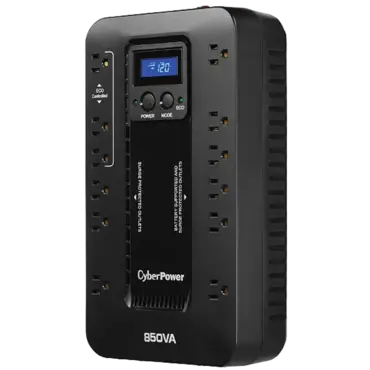

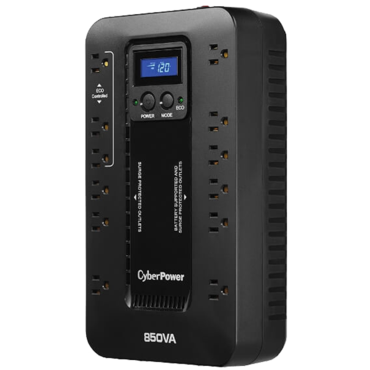

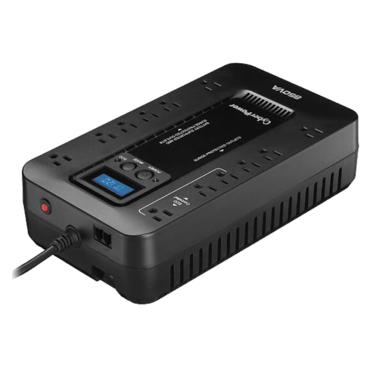

Ecologic EC850LCD, LCD, 850 VA/510 W, Simulated Sine Wave, Tower UPS
- SKU: 7777372
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: EC850LCD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The CyberPower Ecologic UPS Series EC850LCD uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs and is an ENERGY STAR listed product. The multifunction diagnostic LCD gives users the ability to check the operating status of the UPS and assist in trouble-shooting power anomalies.
The CyberPower EC850LCD features ECO technology with three surge protected ECO outlets. When ECO mode is on and the battery backup detects that your computer is off (or in Sleep mode), computer peripherals connected to the ECO outlets will be turned off (USB connection required). This provides additional reductions in power usage and greater energy savings.
| General | |
|---|---|
| UPS Topology | Standby |
| Energy Saving | GreenPower UPS™ High Efficiency |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 96Vac - 140Vac |
| Frequency | 47Hz - 63Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle - 45° Offset |
| Cord Length | 5' |
| Output | |
| VA | 850 |
| Watts | 510 |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 50/60Hz ± 1% (auto-sensing) |
| On Battery Waveform | Simulated Sine Wave |
| Outlets - Total | 12 |
| Outlet Type | NEMA 5-15R |
| Outlets - Eco Controlled | 3 |
| Outlets - Battery & Surge Protected | 6 |
| Outlets - Surge-Only Protected | 6 |
| Outlets - Widely Spaced | 4 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4ms |
| Battery | |
| Runtimes | 10.4 min. (210W), 2.15 min. (425W) |
| Runtime at Half Load (min) | 6 |
| Runtime at Full Load (min) | 1 |
| Battery Type | Sealed Lead-Acid |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 526 Joules |
| Phone Protection RJ11 | 1-In, 1-Out |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| Multifunction LCD Panel | Yes |
| HID Compliant USB Port | Yes |
| Management Cable | USB Cable |
| LED Indicators | Power On, ECO on/off |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions (WxHxD) (in.) | 12.2 x 3.1 x 7 |
| Weight (lbs.) | 7.7 |
| Shipping Dimensions (WxHxD) (in.) | 15 x 4.3 x 9.5 |
| Shipping Weight (lbs.) | 7.8 |
| Environmental | |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Operating Relative Humidity | 0% - 90% non-condensing |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5°F to 113°F / -15°C to 45°C |
| Storage Relative Humidity | 0% - 95% non-condensing |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Certifications | |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
