Economy, Network Server Surge Protector, 1U Rack-Mount, 14-Outlet, 15-ft. Cord, 3000 Joules, 1800W, 120V AC, Black

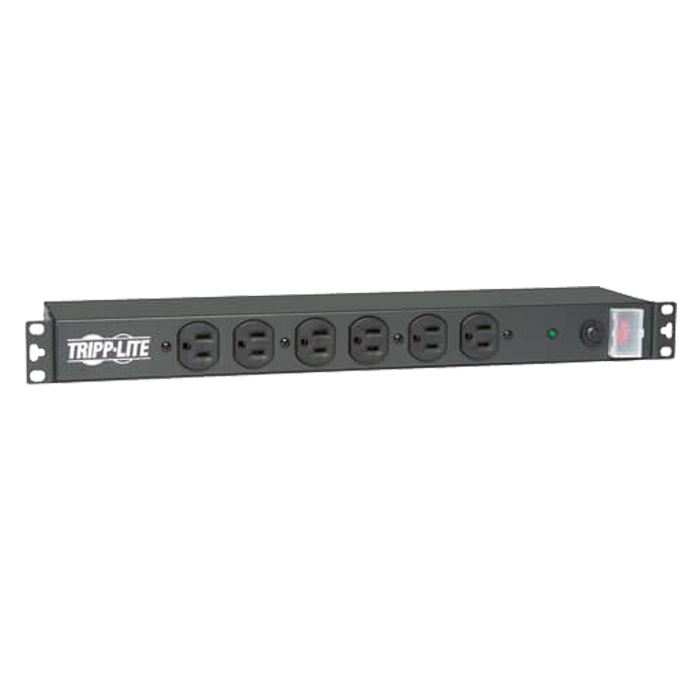

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.
- 3000 joules AC surge suppression with EMI/RFI filtering
- 14 NEMA 5-15R output receptacles (6 front/8 rear)
- 15 foot AC cord with NEMA 5-15P straight-in plug connection
- Diagnostic LED confirms suppressor operation
- Lighted power switch confirms power on/off status
- Snap-in switch guard prevents accidental turn off
- 15 amp capacity with circuit breaker
- 120V AC, 50/60Hz electrical compatibility
Output | |
---|---|
Frequency Compatibility | 50 / 60 Hz |
Output Receptacles | (14) 5-15R |
Output (Watts) | 1800 |
Circuit Breaker (amps) | 15 |
Input | |
Nominal Input Voltage(s) Supported | 120V AC |
Recommended Electrical Service | 120V (110-125V) |
Input Connection Type | NEMA 5-15P input plug |
Input Cord Length (ft.) | 15 |
Voltage Compatibility (VAC) | 120 |
Maximum Surge Amps | 120000 |
Physical | |
Shipping Dimensions (hwd / in.) | 2.25 x 20.5 x 9.25 |
Shipping Weight (lbs.) | 5.5 |
Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 4 |
Unit Weight (lbs.) | 4.6 |
Material of Construction | Metal |
Included Mounting Accessories | Included mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options |
Housing Color | Black |
Receptacle Color | Black |
Color (AC Line Cord) | Black |
Form Factors Supported | 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options |
Outlets Measurement (Center to Center) | Distance between front outlets = 38.9mm; Distance between rear outlets = 38.9mm |
