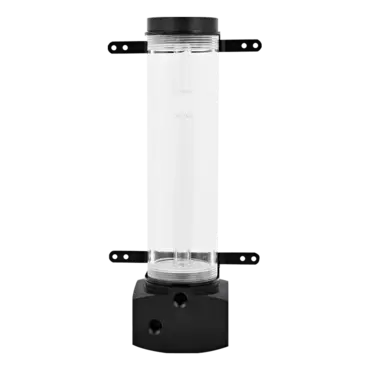

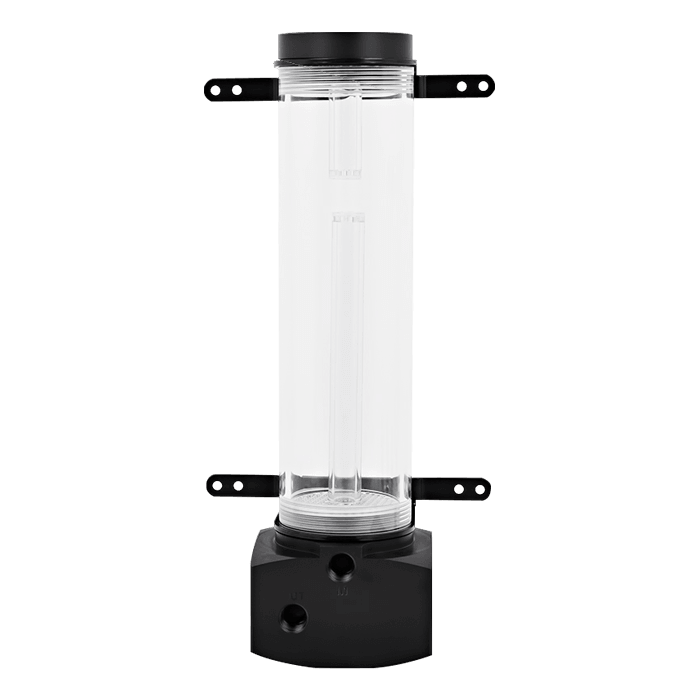

Eisbecher D5 250mm Acetal reservoir incl. 1x VPP655 Pump

Quantity:
  • SKU: 12374935
  • Manufacturer: Alphacool
  • MPN: 13291
  • Availability: LOW STOCK
Starting At
$189.75
Quantity:

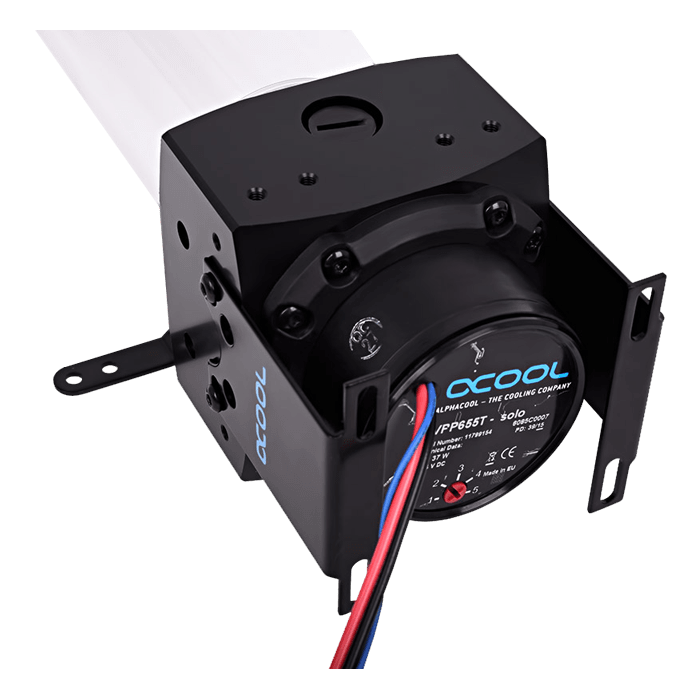

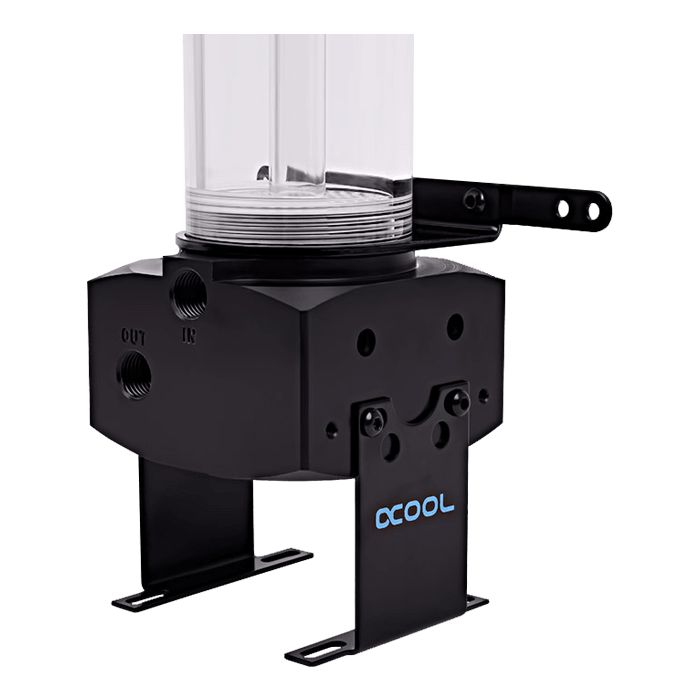

This "Eisbecher" is the big brother to the DDC version. The pump is mounted with a mounting ring which holds the pump with eight screws. Four LEDs, which are plugged into the pump socket, illuminate this plexiglass version. The lighting module enables illumination from above. Small rising pipes and Bubble Down also do their work perfectly here. The pump can be mounted either on the bracket or the included stands. In case there is space in the 3.5" hard drive cages in the case, the pump socket also comes with the appropriate screw threads (requires pump decoupling with M4 internal and external threads - Art. 13701).

Included in Delivery:

  • 8x M4x12mm screws
  • 8x M4x8mm screws
  • 4x M4 nuts
  • 1x mounting ring
  • 1x O-ring ID ca. 54mm
  • 2x stands
  • 1x hexagonal wrench 2.5mm

Dimensions - 250mm Version:

  • Dimensions incl. bracket incl. stands (LxWxD): 3245 x 136 x 80mm
  • Dimensions without bracket incl. stands (LxWxD): 324 x 87.5 x 80mm
  • Plexiglass tube diameter: 60mm

Pump: Alphacool VPP655 - Single Edition

Technical Details:

  • Dimensions (WxHxD): 65x65x57mm (without attachments)
  • Motor: electronically commutated spherical motor
  • Standard voltage: 12V DC
  • Power consumption: 23W
  • Acceptable voltage: 8-24V DC
  • Pressure at 12V: 3.7m water head
  • Maximum flow rate: 1500L/h
  • Pump fluids: water, water/glycol mixture
  • Maximum system temperature: 60°C
  • Materials used: stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminium oxide, hard carbon
  • Special features: adjustable to five levels
  • Level 1: 1800 U/min
  • Level 2: 2550 U/min
  • Level 3: 3300 U/min
  • Level 4: 4050 U/min
  • Level 5: 4800 U/min
  • Power connection: 4 pin Molex

Scope of Delivery:

  • 1x Alphacool Eisbecher D5 250mm Acetal incl. 1x Alphacool VPP655
Color: black
Manufacturer: Alphacool
Connector: G1/4" inner thread
Fillport: G1/4" inner thread
LED hole: Not available
Model of reservoir: Tubing - reservoirs 60mm
Pump compatibility: For 1x D5
Material: POM
Number of connections: 4
Preinstalled pump: Yes
