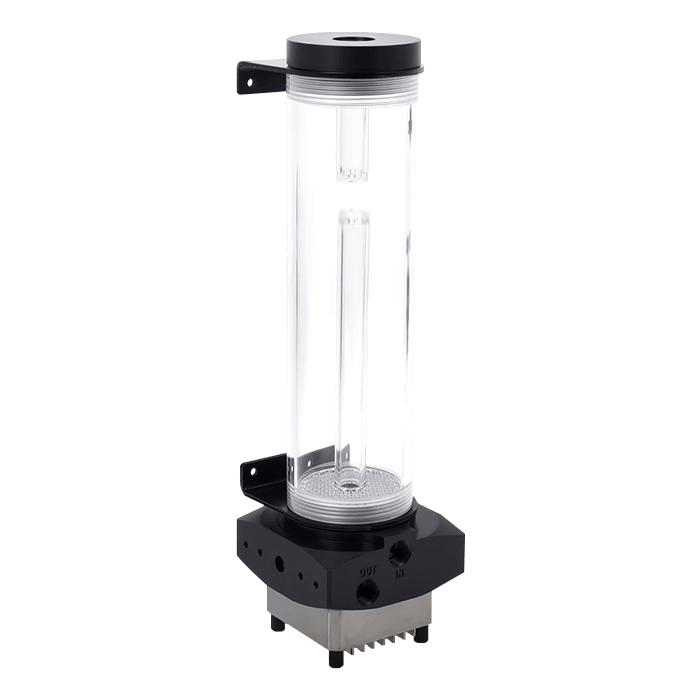

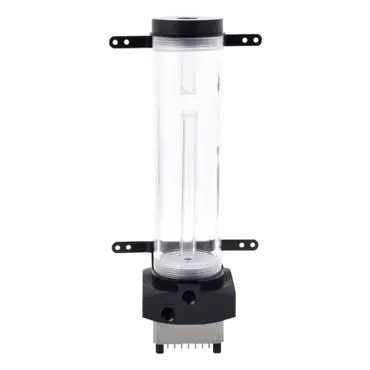

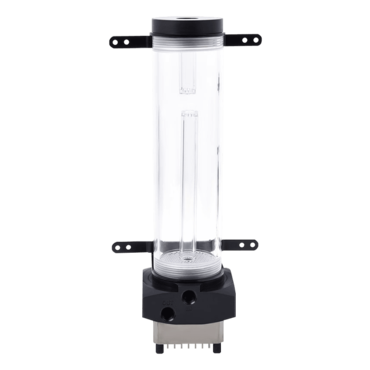

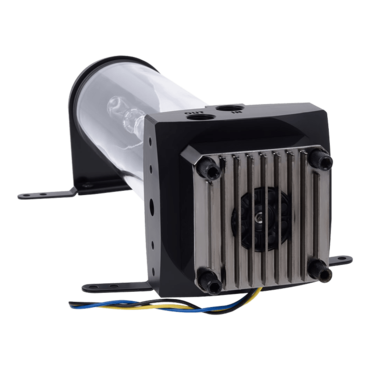

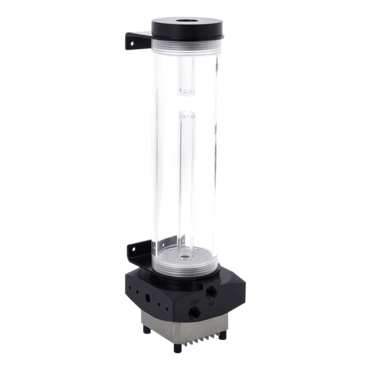

Eisbecher DDC 250mm Acetal reservoir incl. 1x DDC310 Pump

The "Eisbecher" for the Laing DDC pump leaves no possibilities unexplored. The pump is easily attached to the underside with four screws. For the best overall appearance, Alphacool recommends using the metal bottom for the Laing DDC. For the plexiglass version, there are two 5mm holes for LEDs as well as a lighting module in the cap for illumination from above. Small standpipes and Bubble Down also do their work faultlessly here. The "Eisbecher" can be mounted either with the mounting bracket or with the included stands. If there is room in the 3.5" hard drive cage inside the case, the pump socket also has threads for this (requires pump decoupling with M4 inner and outer threads - Art. 13701).

Dimensions for 250mm Version:

• Measurements incl. bracket and stands (LxWxD): 304 x 136 x 88mm
• Measurements without bracket incl. stands (LxWxD): 304 x 87 x 88mm
• Plexiglass tube diameter: 60mm

Please Note:
To use the inlet from the top you will need a G1/4" extension piece (Art. 17254-17257), as the thread is set into the lid a few mm and many nozzles will not screw in properly.

Pump: Alphacool Laing DDC310 - Single Edition - black

• Technical Details:
• Dimensions: 61 x 60 x 21mm
• Colour: Black nickel, black
• Power input: 10W
• Material: brass, stainless steel, aluminium oxide, hard carbon
• Maximum head: 2.44m
• Maximum system temperature: 60°C
• Maximum flow rate: 200L/h
• Voltage: 12V DC
• Electrical connection: 4 pin Molex
• RPM signal: 3 pin Molex

Scope of Delivery:

• 1x Alphacool Eisbecher DDC 250mm Acetal incl. 1x Alphacool DDC310
