Eiszapfen G1/4" 90° Rotary L-Connector - Black
- SKU: 12374751
- Manufacturer: Alphacool
- MPN: 17248
- Availability: IN STOCK
Alphacool’s Eiszapfen Connector Series is the high-end execution of these tried-and-true connectors!
Every requirement you could have of a connector is met with this series: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is. Components are available in brilliant chrome or a deep, matte black, which will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!
Anyone looking for colourful options has them: the O-rings in the shipment come in three colours. With the available UV-light option, these will even light up in the corresponding colour.

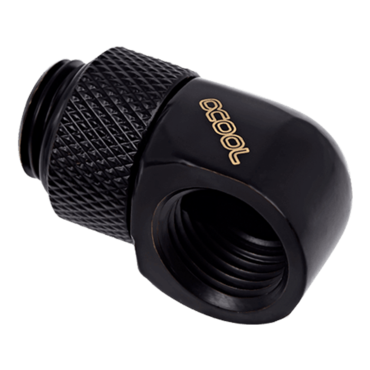

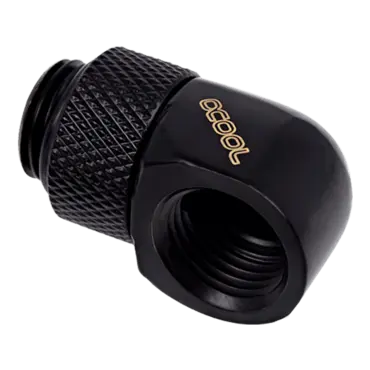

Model: Rotatable L-Connector
This 90° angle adapter has a rotatable ¼” external screw thread on one side and a ¼” internal thread on the other side. This connector is mostly useful in cases where there is little space available and a
special solution is needed.
Technical Specifications:
Scope of Delivery:
Attention: The manufacturer Mayhems advises that Mayhems fluids, especially the Aurora line of products, have been manufactured and distributed solely for show and modding purposes. These should not be utilized in the system for more than 14 days.
We would also like to advise that Mayhems fluids can damage water cooling products, and using Mayhems fluids can thereby void the warranties offered by the following manufacturers: Koolance, Phobya, Alphacool, Aqua Computer, Watercool.
Damages such as: clogging, corrosion of aluminium radiators, deterioration of glued containers, etc., are a consequence of the use of Mayhems, but will not be reimbursed by Mayhems. Use is therefore at one’s own risk.
- Material: Brass
- Colour: Deep Black
- Length: 32mm
- Width: 18mm
- Hight: 18mm
| 1. Side: | G1/4" inner thread |
| Material: | Brass |
| Color: | black mat |
| Thread length: | 5mm |
| Manufacturer: | Alphacool |
| Compatibility: | Soft tubing (PVC, Silikon, Neoprene) |
| 2. Side: | G1/4" outer thread |
| Specification: | Shape: 90° angled |
| Rotatable: | Yes (360°) |
| Dimensions (L x B x H): | 32 x 18 x 18mm |
