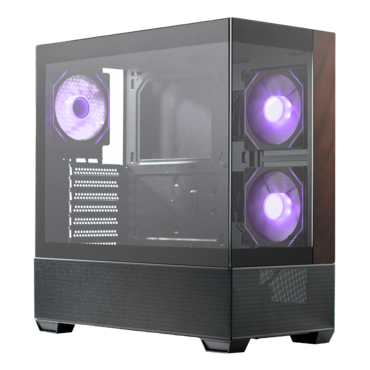

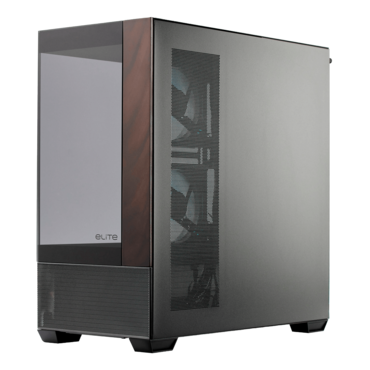

Elite 690 Wood, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 20073341
- Manufacturer: COOLER MASTER
- MPN: E690-KHNN-S00
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Elite 690 Wood, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

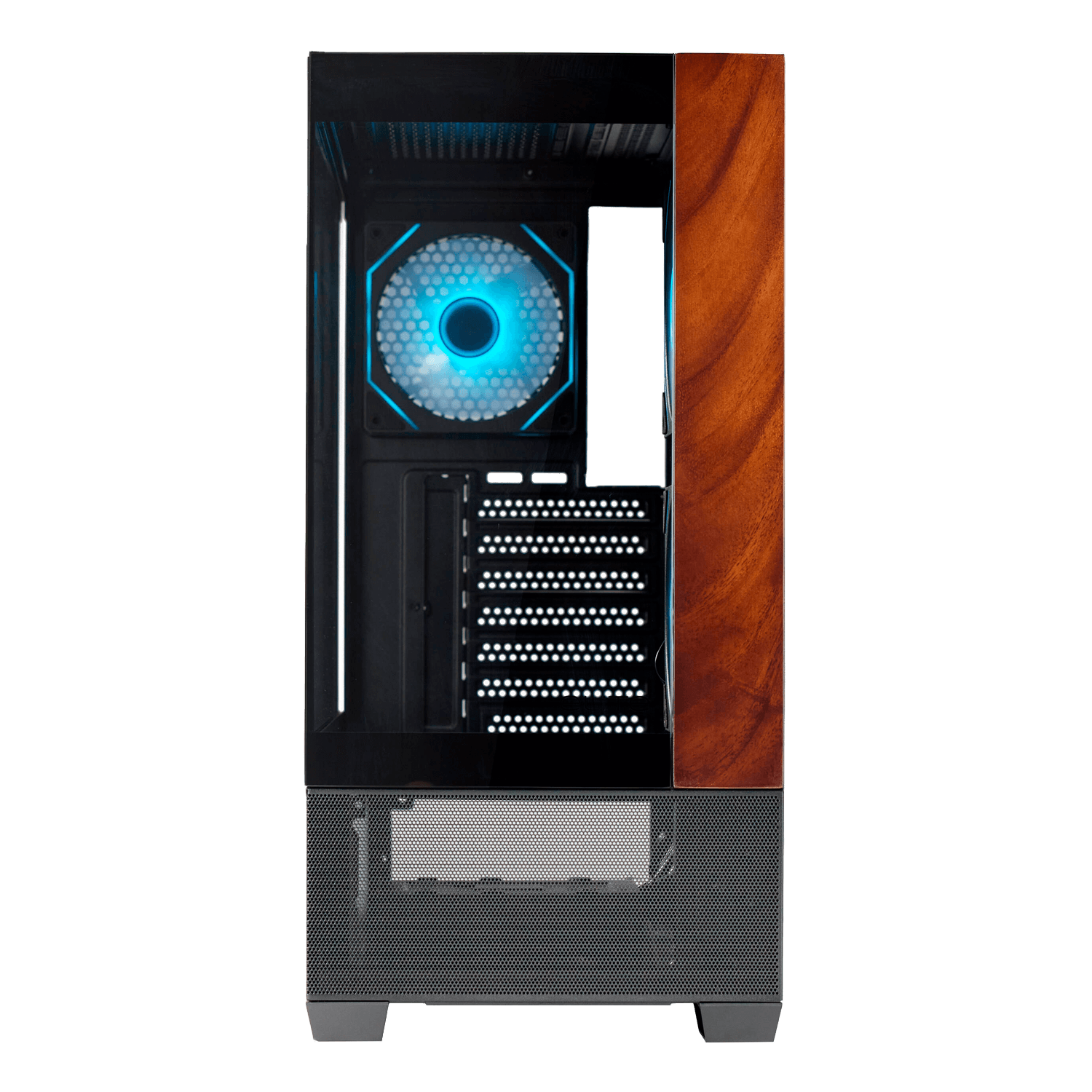

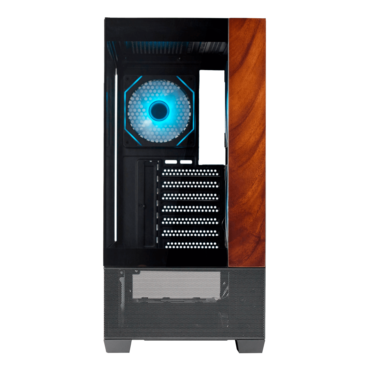

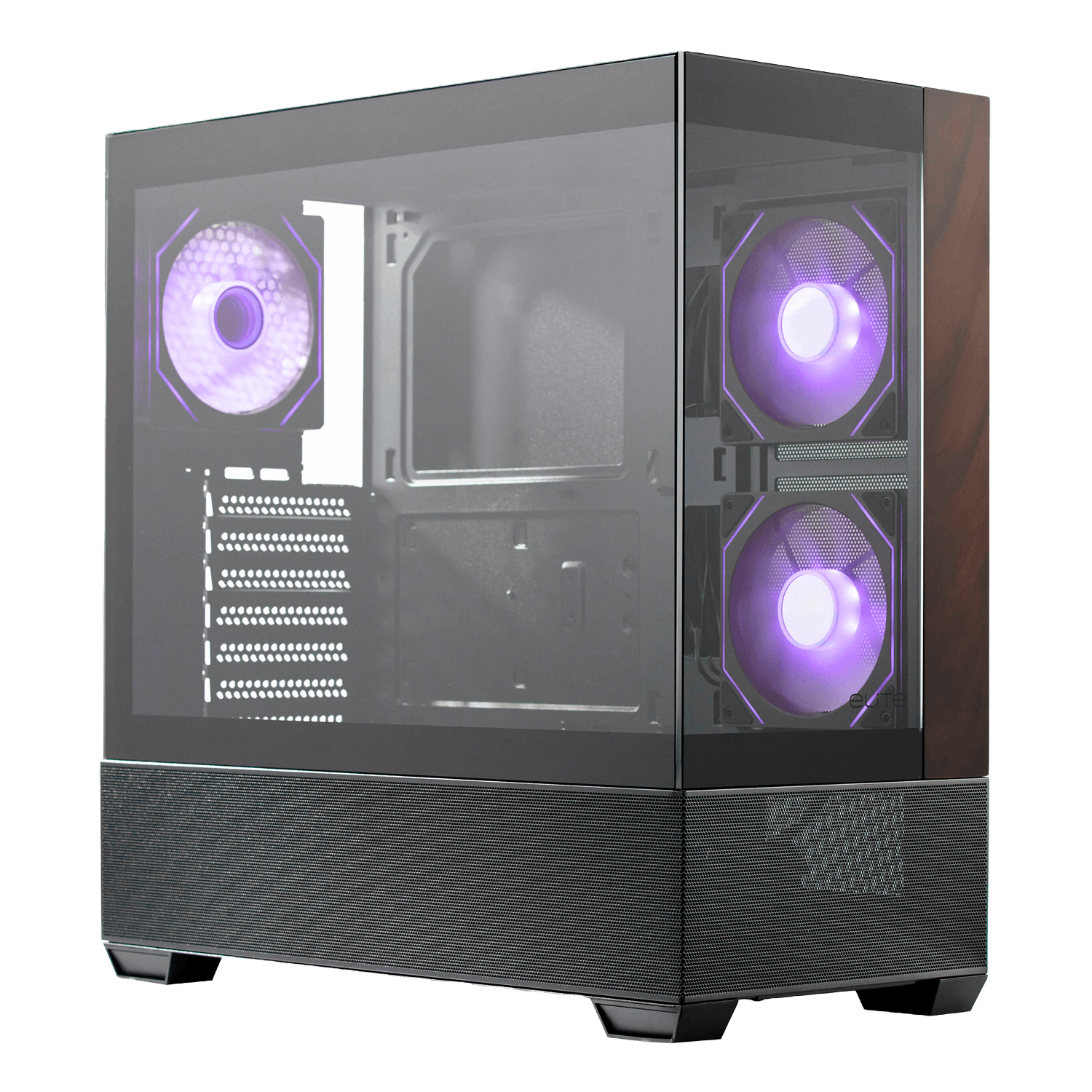

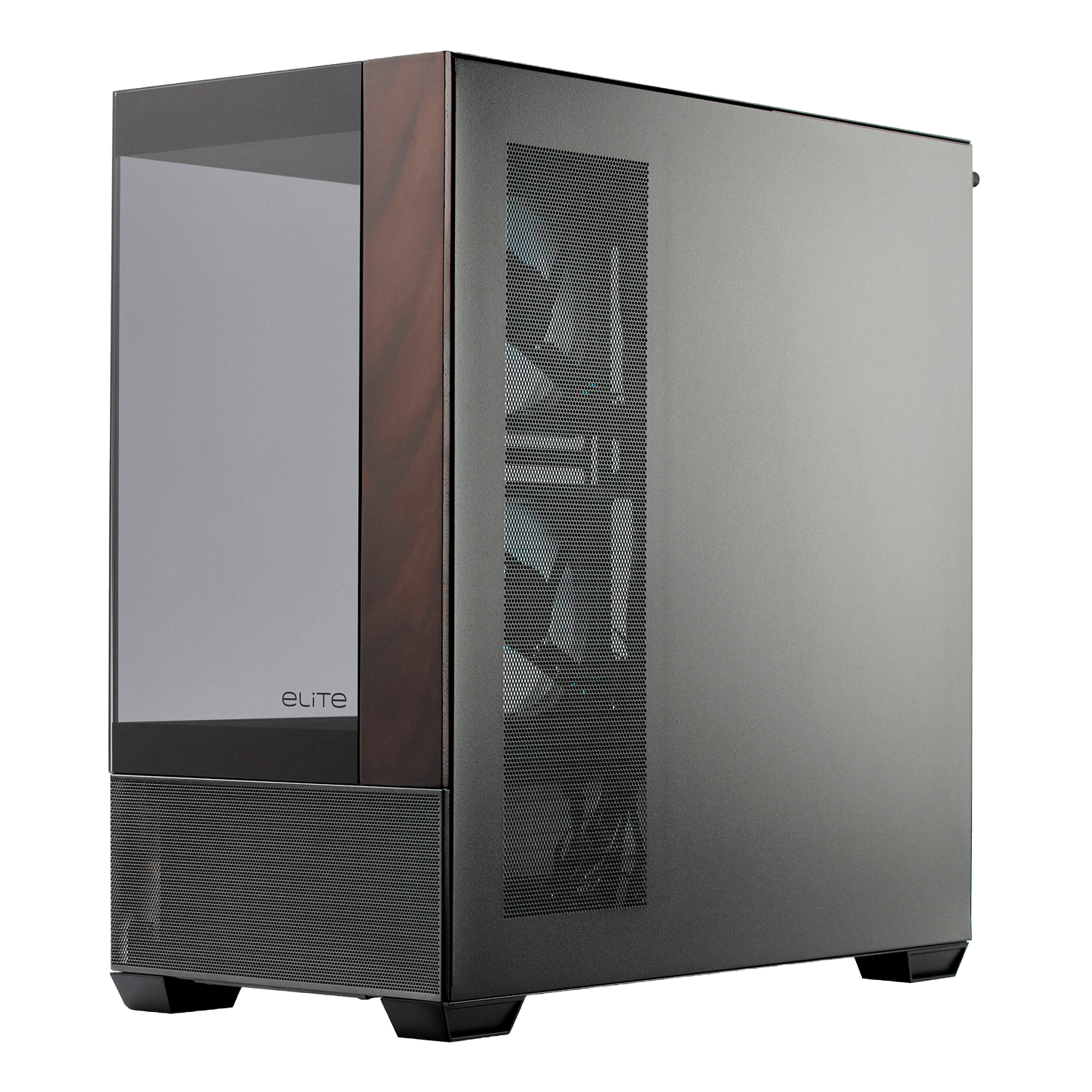

The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.
| Model Number | Black: E690-KHNN-S00, White: E690-WHNN-S00 |
| Color(s) | Black / White |
| Materials - Front Panel | Tempered Glass + Wood |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions) |
| Volume | 42.93 L (Liters Incl. Protrusions) |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |

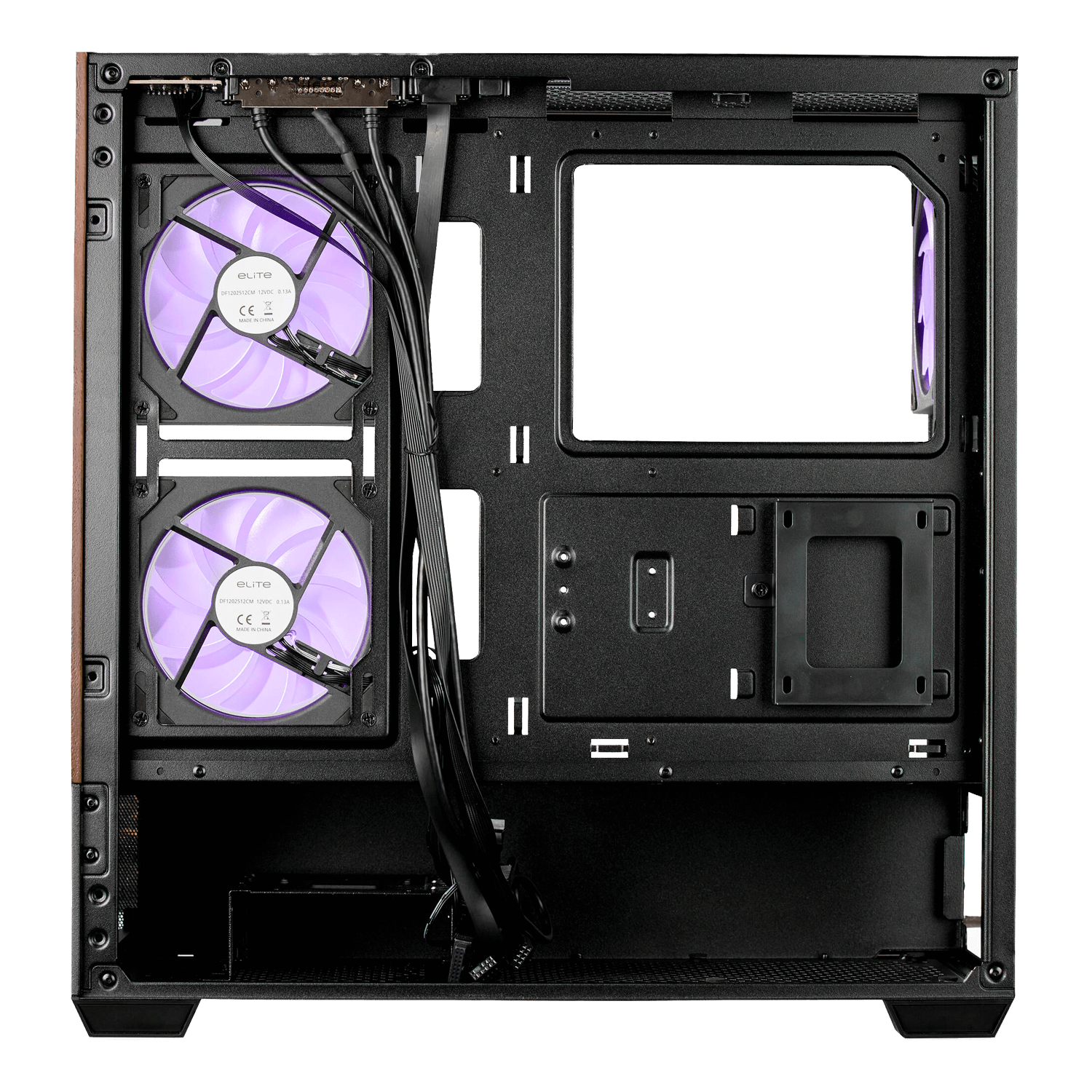

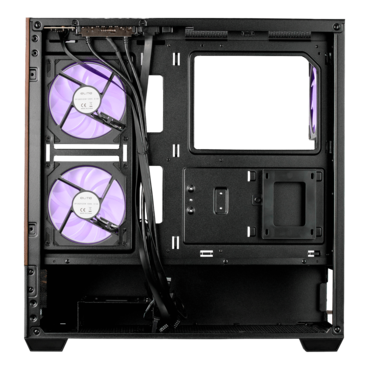

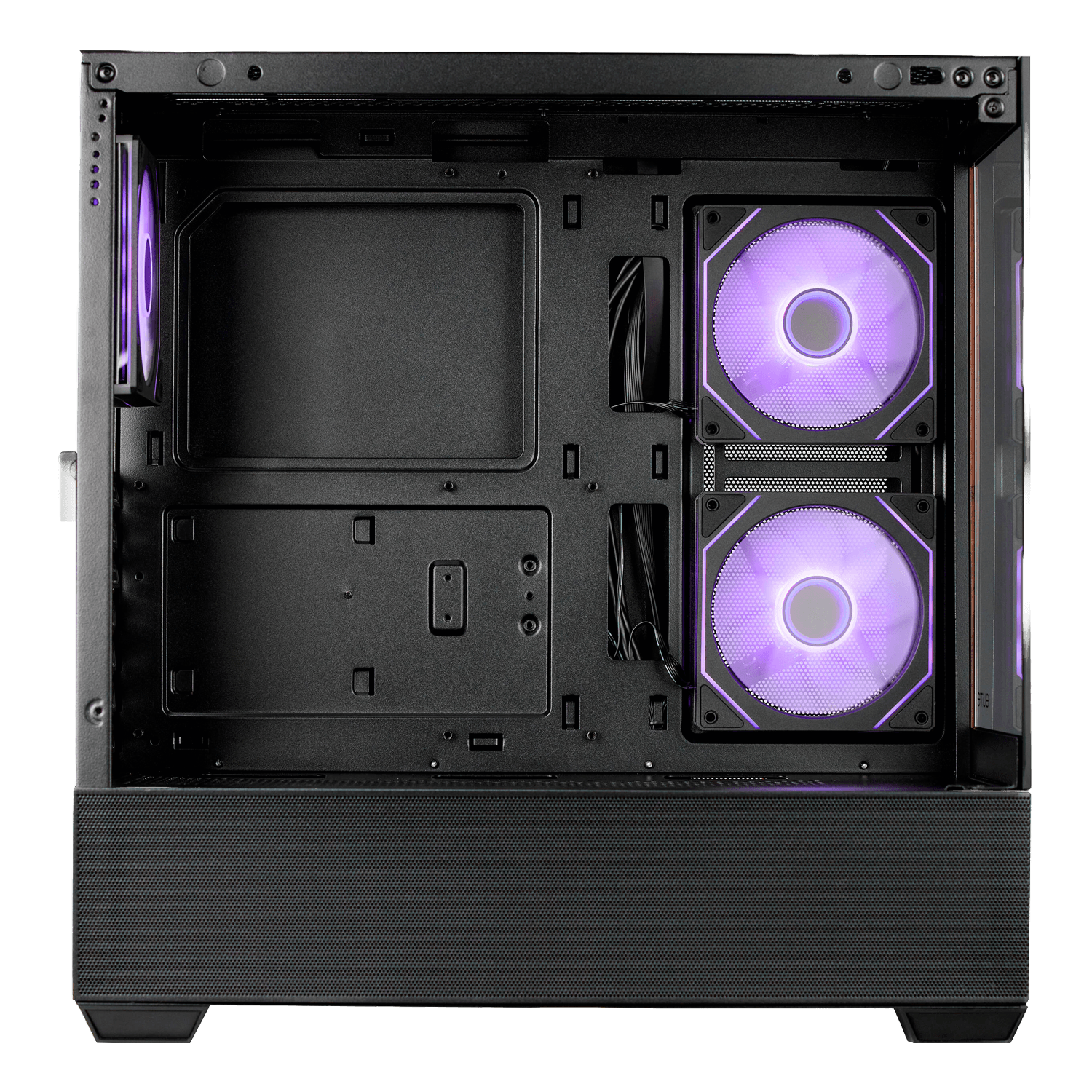

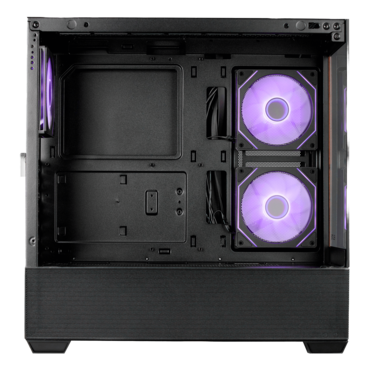

| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
| Fan Support - Top | 2x 140mm / 3x 120mm |

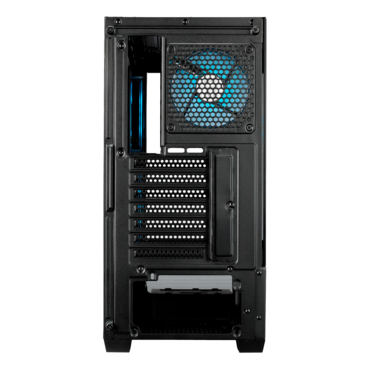

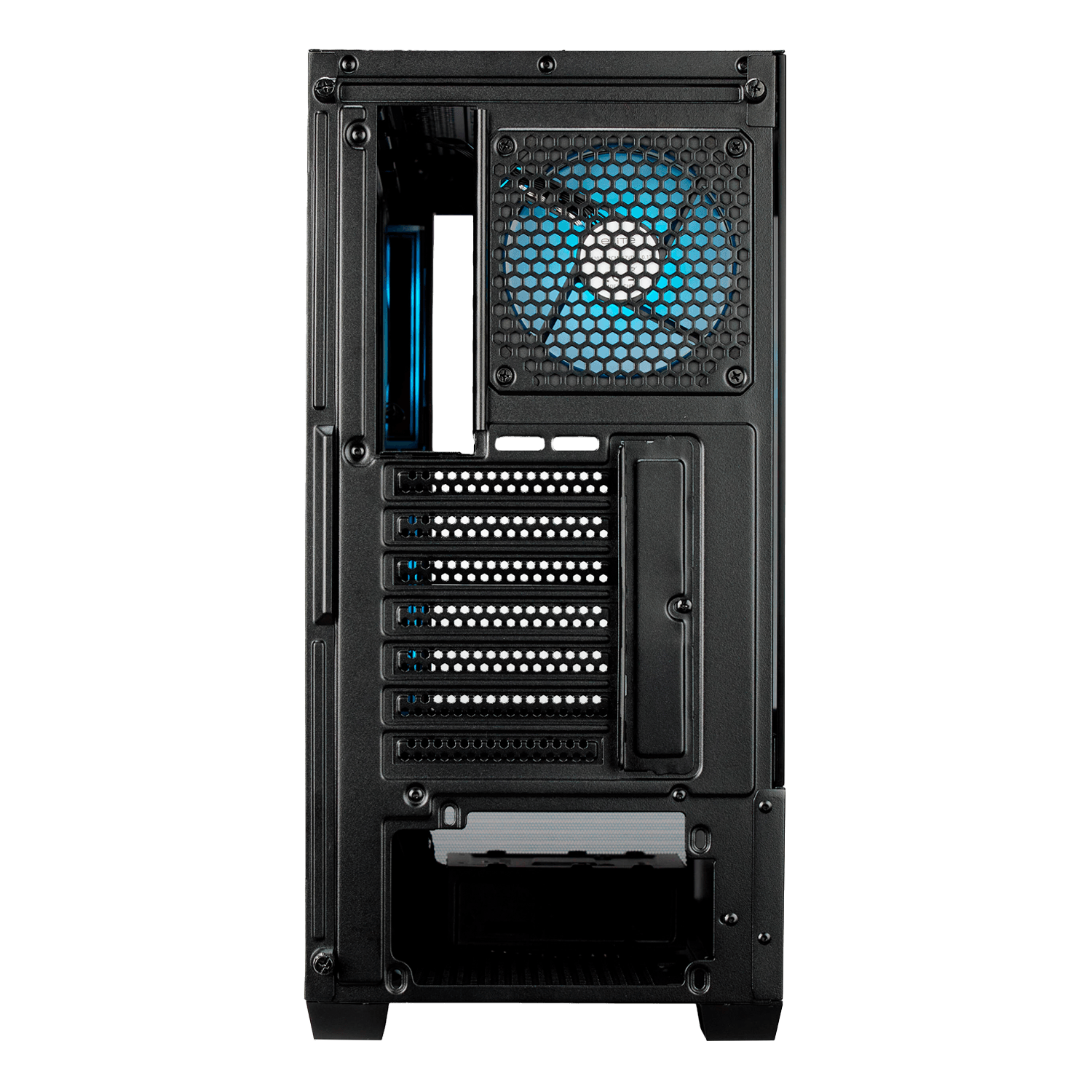

| Fan Support - Rear | 1x 120mm |
| Fan Support - Side Mount | 2x 120mm |
| Fan Support - Bottom | 3x 120mm |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) |
| Radiator Support - Bottom | 120 / 240 / 360mm |
| Radiator Support - Side Mount | 120 / 240mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 250mm |
| Clearance - Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | Elite Series |
