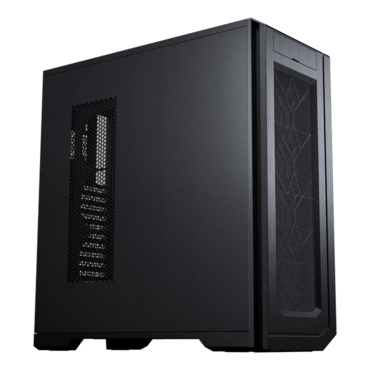

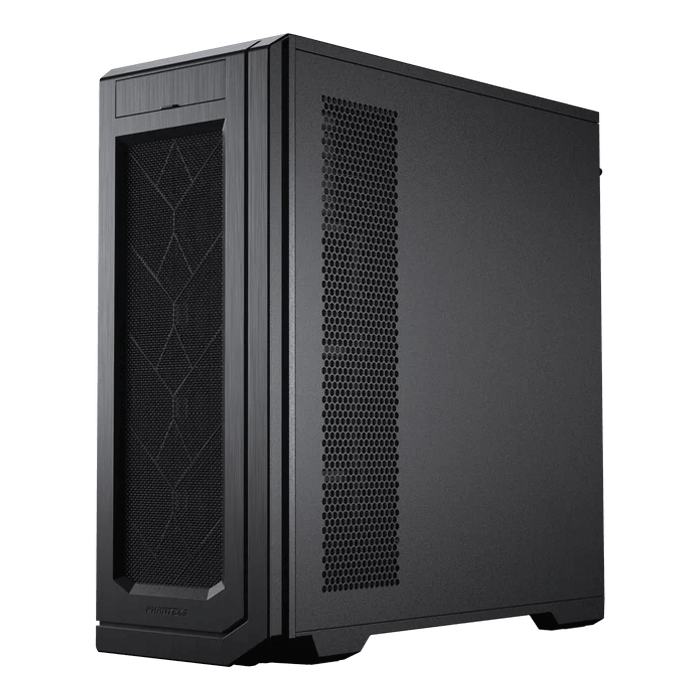

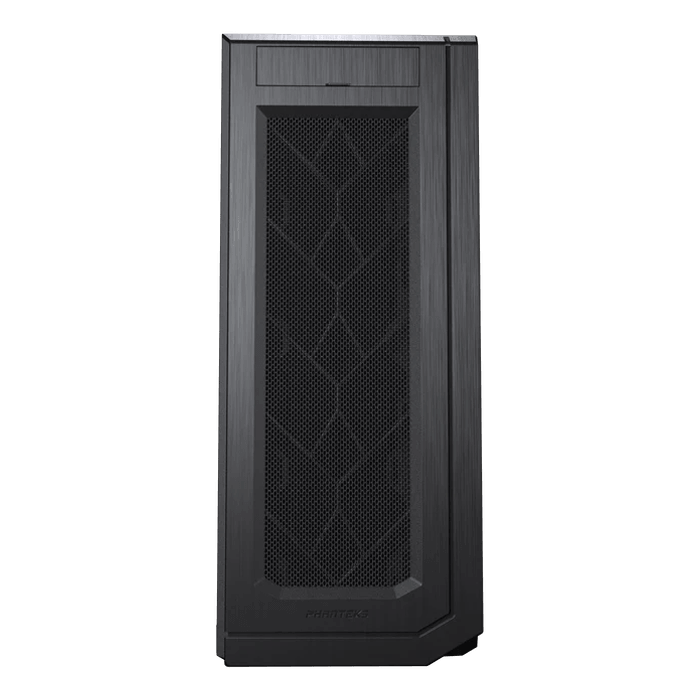

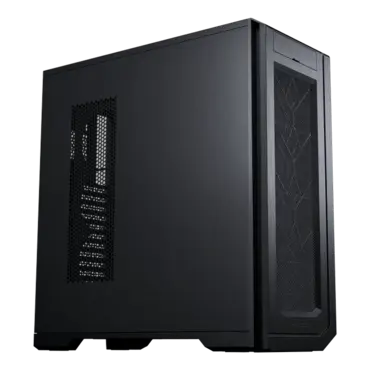

Enthoo Pro 2 Server Edition, No PSU, E-ATX, Satin Black, Full Tower Case
Quantity:
- SKU: 16354102
- Manufacturer: PHANTEKS
- MPN: PH-ES620PC_BK02
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$260.49
Enthoo Pro 2 Server Edition, No PSU, E-ATX, Satin Black, Full Tower Case

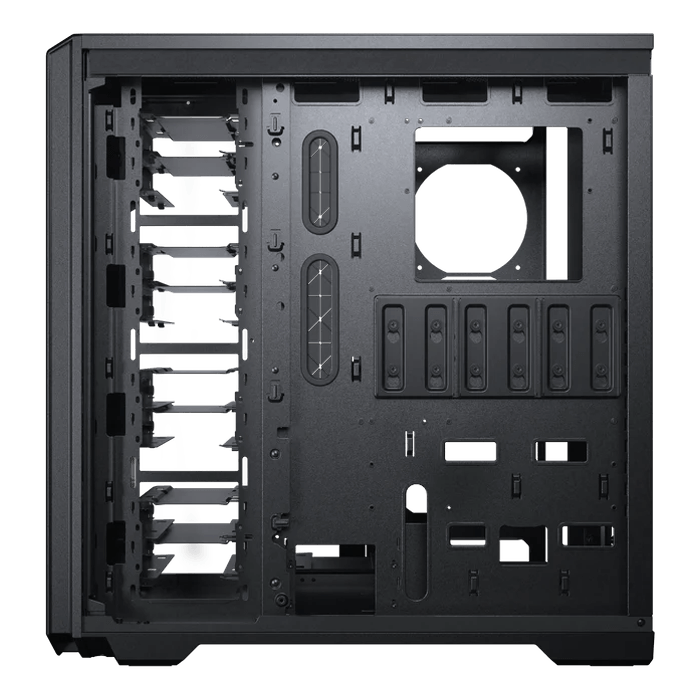

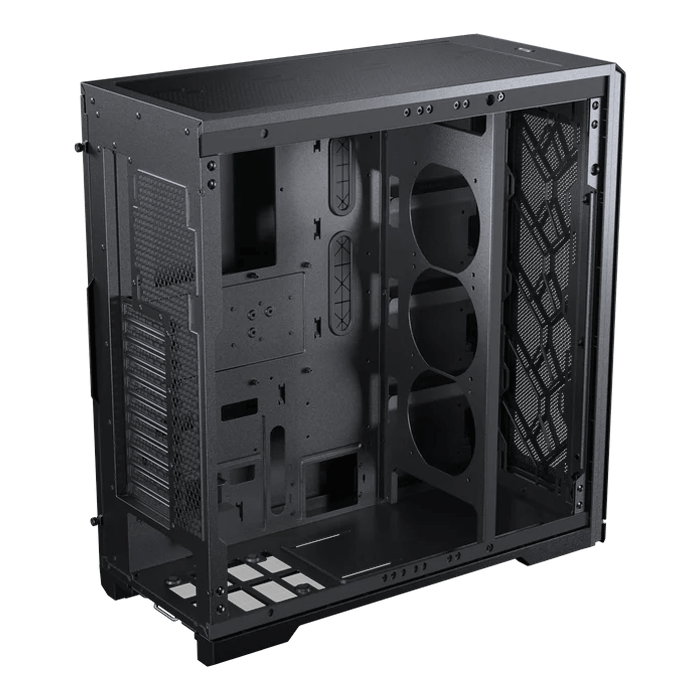

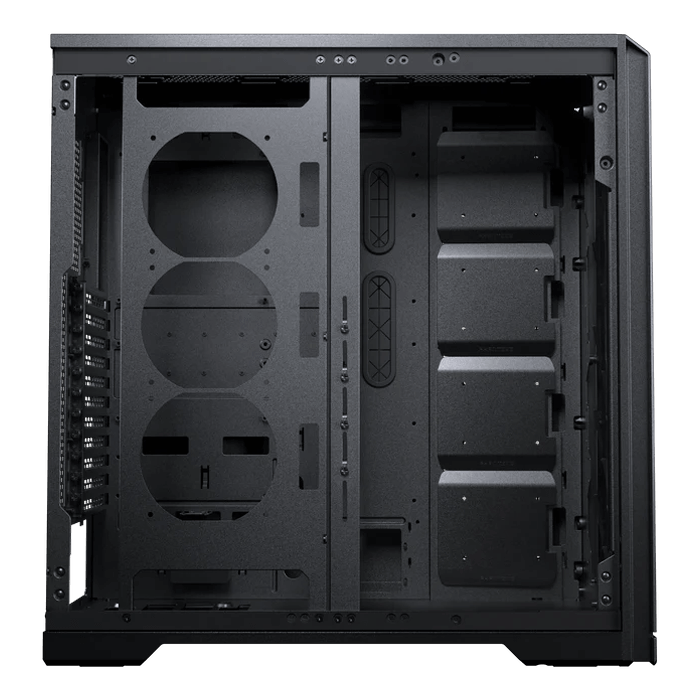

The?Enthoo?Pro 2 Server Edition is designed with extreme performance in mind and features?Phanteks’ innovative High-Performance Fabric, offering a new airflow performance standard. With an extremely spacious and versatile interior design and state-of-the-art features, the Pro 2 Server Edition is ready to house any high-end configuration.
| General | ||
| Model Number | PH-ES620PC_BK02 PH-ES620PTG_BK02 |
|
| Product Dimension (WxHxD) | 240 x 580 x 560mm / 9.45 x 2283 x 2205 in | |
| Package Dimension (WxHxD) | 330 x 650 x 665mm /13 x 25.6 x 26.2 in | |
| Form Factor | Full Tower | |
| Motherboard Support | XL-ATX, SSI-EEB, E-ATX, ATX, micro-ATX, mini-ITX | |
| Materials | Steel chassis | |
| Color | Satin Black | |
| Front IO | 1x USB-C GEN 2 4x USB 3.0 Microphone/Headphone Combo Reset Button Power Button |
|
| Connectors | Power Switch Reset Switch HD-audio Power-LED HDD-LED USB 3.0 (2x) USB 3.1 GEN 2 |
|
| Side Window | Tempered Glass (Only available for PH-ES620PTG_BK02) | |
| Net Weight | 13.19 kg / 29.08 lbs | |
| Gross Weight | 15.47 kg / 34.11 lbs | |
| Warranty | 5 Years Limited | |
| Expansion | ||
| PCI slots | 11 | |

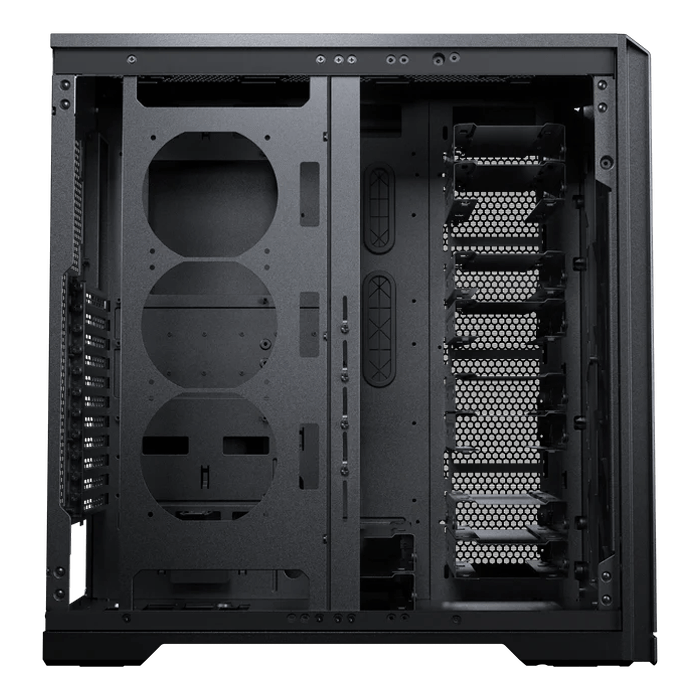

| Internal 3.5" bay | 10 (4x included, also supports 25" drives) | |
| Internal 2.5" bay | 11 (llx included) | |
| Vertical GPU support | Yes, with optional bracket PH-VGPUKT4.0_03R | |
| Fans | 120 mm | 140 mm |
| Top | 4x | 3x |
| Rear | 3x | 3x |
| Bottom | 1x | 1x |
| Right Side | 4x | - |
| Left Side | 3x | - |
| Radiator | 120 mm | 140 mm |
| Front | Up to 480 | Up to 420 |
| Top | Up to 360 | - |
| Rear | 120 | 140 |
| Right Side | Up to 480 | - |
| Left Side | - | - |
| Clearances | ||
| GPU Length | 503 mm /19.95 in | |
| CPU Cooler Height | 195 mm / 7.7 in | |
| Motherboard (HxW) | Max 380x330 mm | |
| Side 360 Radiator | Max 134x525x35mm (on the right side of chassis) | |
| Top 360 Radiator | Max 120x475 (max 55mm motherboard height) | |
| Scope of Delivery | ||

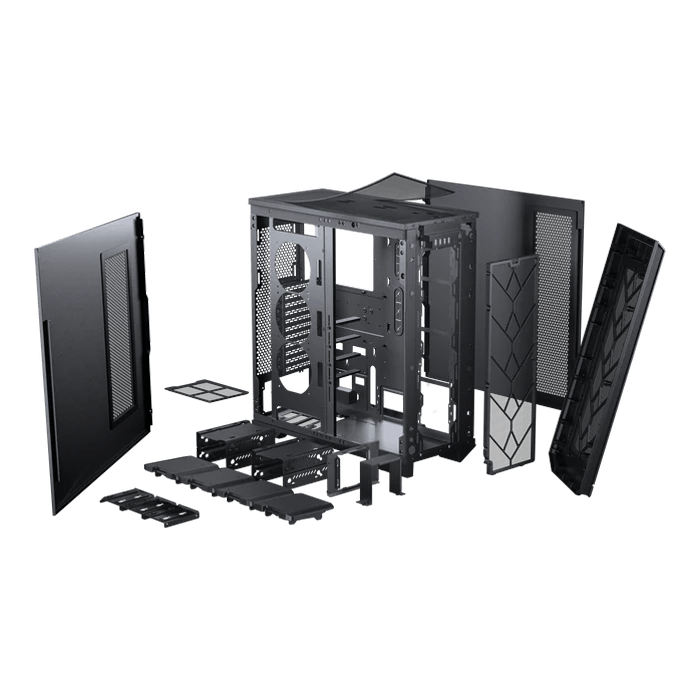

| Enthoo Pro II | SE - Satin Black (HxW) | PRO 2 Chassis 3x SSD Bracket 4x SSD Cover Accessory Box 4x Stackable HDD Bracket 1x GPU Support Bracket 1x Left Side Fan Bracket 1x Server PSU Bracket 1x Phanteks Case Badge 6x Zip ties |
|
