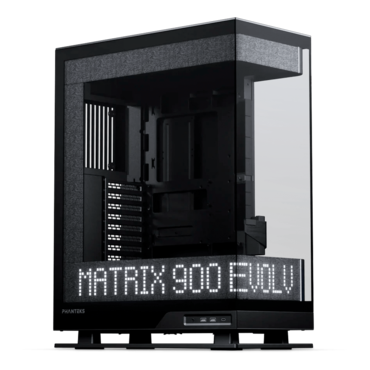

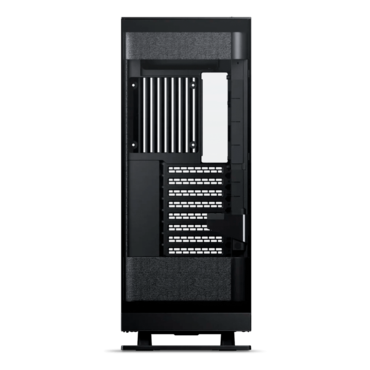

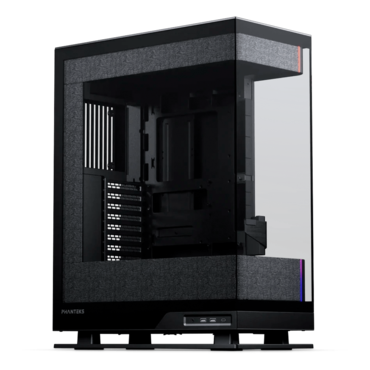

Evolv X2 Matrix, Tempered Glass, No PSU, E-ATX, Brushed Black, Mid Tower Case
- SKU: 19752320
- Manufacturer: PHANTEKS
- MPN: PH-ES524XM_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS

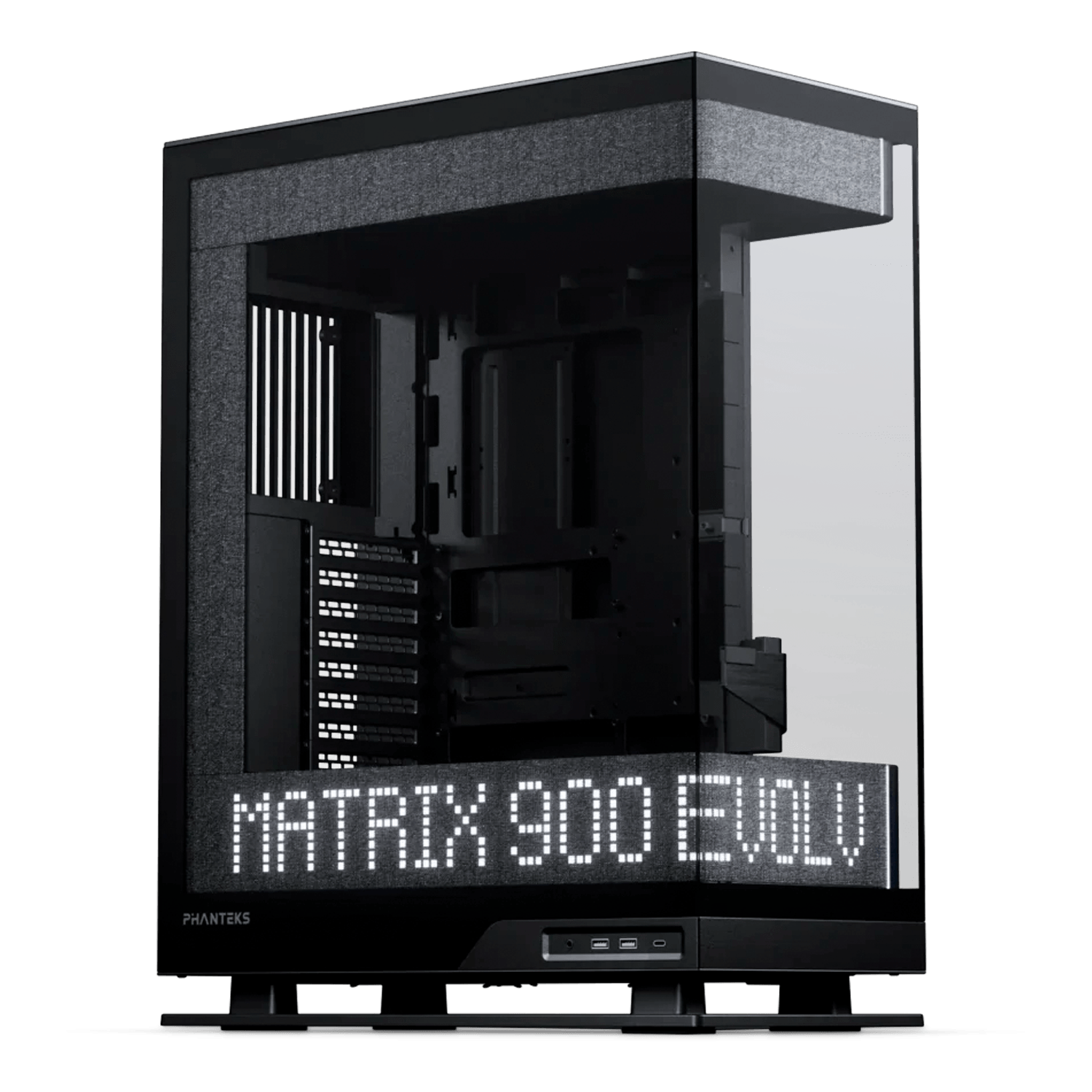

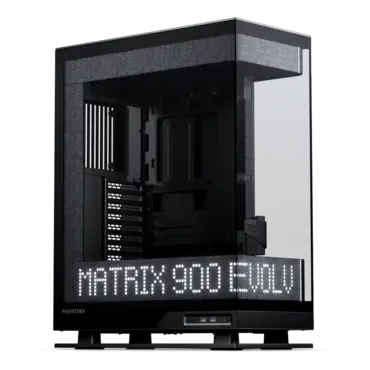

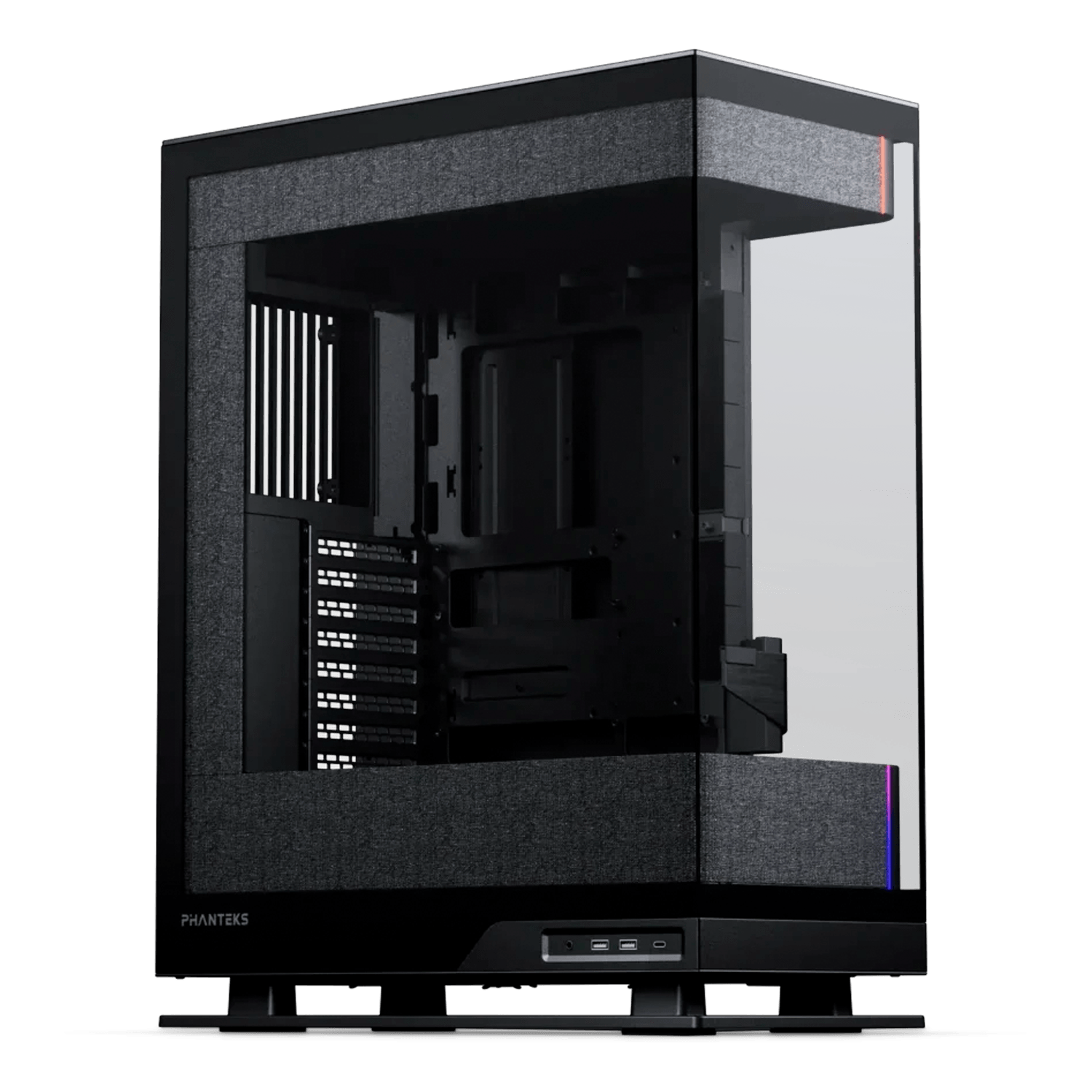

- Integrated 900-LED Matrix screen hidden behind the fabric interior for a clean, seamless display.
- Fine fabric diffusion enhances readability while adding subtle visual depth.
- Hardware-driven operation delivers smooth visuals with minimal CPU impact.
- Display real-time system information such as temperatures, loads, and clock speeds.
- Customize layouts with widgets for stats, time, date, animations, and messages.
- Configure and manage all Matrix content through the NexLinq App for Windows.
- Efficient vertical airflow design, drawing fresh air from the bottom and expelling warm air through the top.
- Floating chassis design ensures superior cooling by maximizing air intake through the bottom fan positions.
- Hot air is exhausted through the top, directed away from the user, thanks to the slanted grill design.

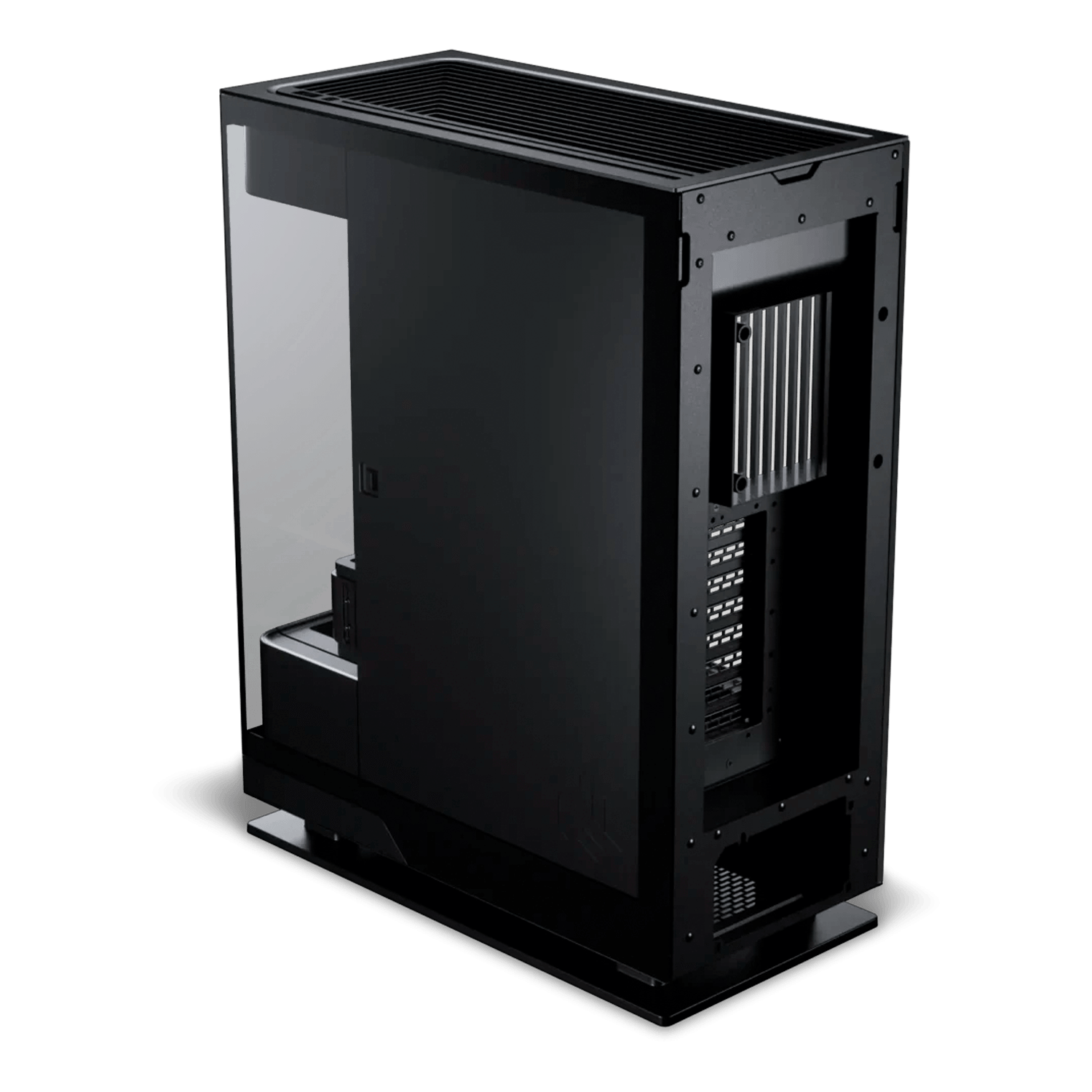

- Super strong steel and aluminum C-frame design.
- Unique see-through chassis showcases the mainboard and graphics card.
- Brushed aluminum interior wrapped around the cooling components.
- Mainboard and graphics card sitting front and center.
- Cooling fans and radiator sit hidden into the chassis as one.
- The large cover door fully hides all cables behind the mainboard.
- Supports rear-connect mainboards for a zero-cable build.
- Side Storage Bracket
Supports 3x 2.5″ SSD drives. -
Bottom Storage Bracket
Supports 2x 3.5” HDD drives or 1x 3.5” HDD and 2x 2.5” SSD drives.
| General | |
| Model No. | PH-ES524XM_DBK01 |
| UPC Code | 886523304067 |
| Case Dimensions | 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in |
| From Factor | Mid-Tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide |
| Rear ATX Mainboard Support | MSI Project Zero | ASUS BTF | Gigabyte Project Stealth |
| Materials | Steel chassis | Aluminium panels | Tempered glass window | ABS plastic | Polyester |
| Color | Brushed black aluminium |
| Expansion Slots | 8 |
| Vertical GPU Support |
Yes Riser cable sold separately |
| Internal 2.5″ Positions | 5 + 1x 3.5″ HDD |
| Internal 3.5″ Positions | 2 + 3x 2.5″ SSD |
| Front I/O |
2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Matrix Display | |
| LED Amount | 900 |
| Power Input | 5V | 5.3A |
| Fabric Material | Polyester |
| Connectors | Mainboard USB 2.0 header 500 mm SATA 500 mm |
| Fans 120 | 140 | |
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | – | – |
| Side | – | – |
| Rear | 1 | – |
| Bottom | 3 | – |
| Radiator 120 | 140 | |
| Top | Max. 360 | – |
| Front | – | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler Height |
170 mm | 6.69 in |
| GPU Length |
380 mm | 14.96 in |
| GPU Width |
170 mm | 6.69 in |
| Power Supply | 250 mm | 9.84 in |
| Top 360 Radiator Length x Width x Height |
415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in |
| Extra | |
| Net Weight | 14.2 kg | 31.3 lbs |
| Gross Weight | 16.5 kg | 36.4 lbs |
| Warranty | 5 Years limited Learn more |
| Scope of Delivery |
1x Evolv X2 chassis 1x Storage bracket Pre-installed 1x SSD bracket Pre-installed |
| Accessory Box |
30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Vertical-GPU bracket screws 1x Mainboard stand-off |
| Screws |
6x Zip ties 1x Stand-off removal tool 1x D-RGB mainboard adapter 500 mm 1x Microfiber cloth |
