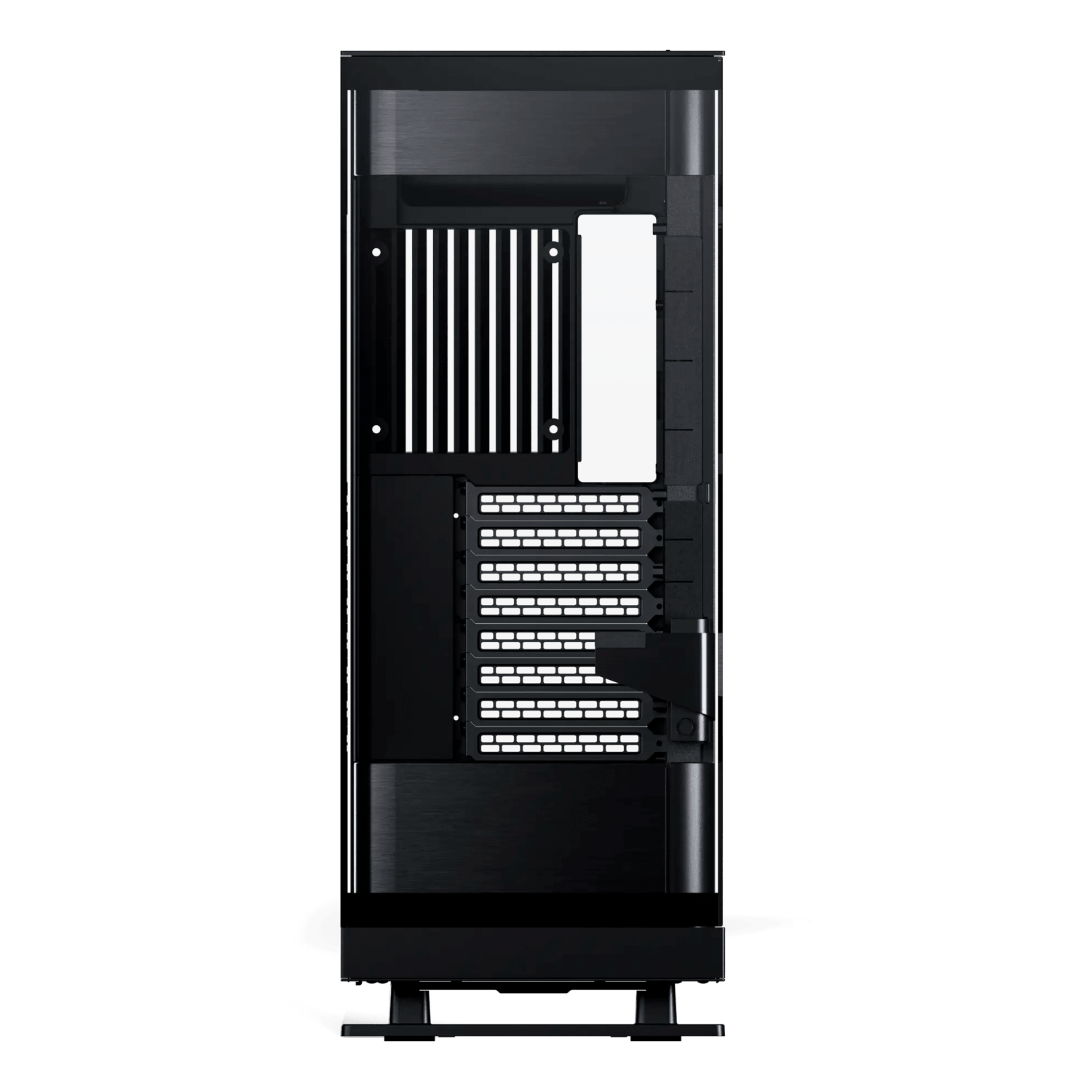

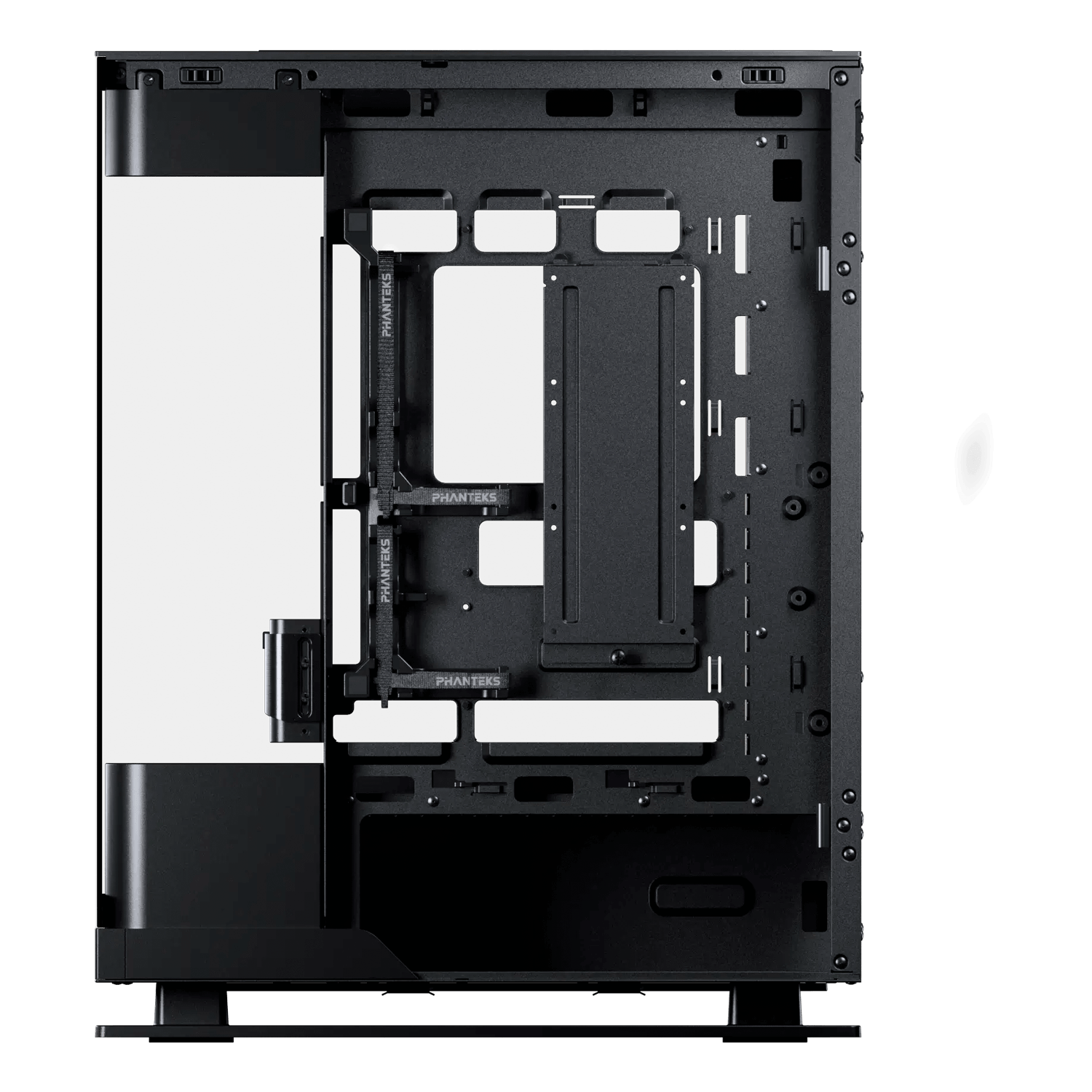

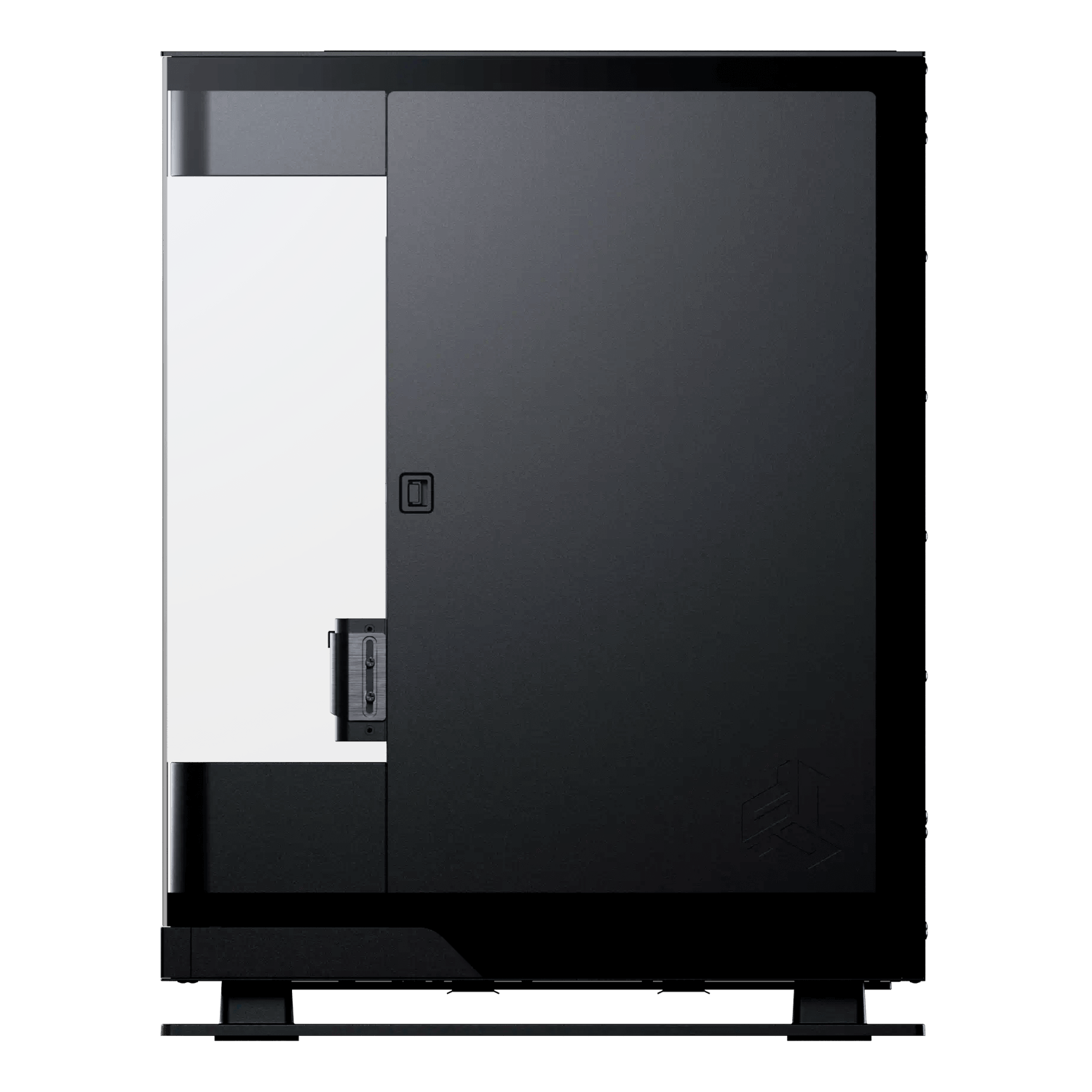

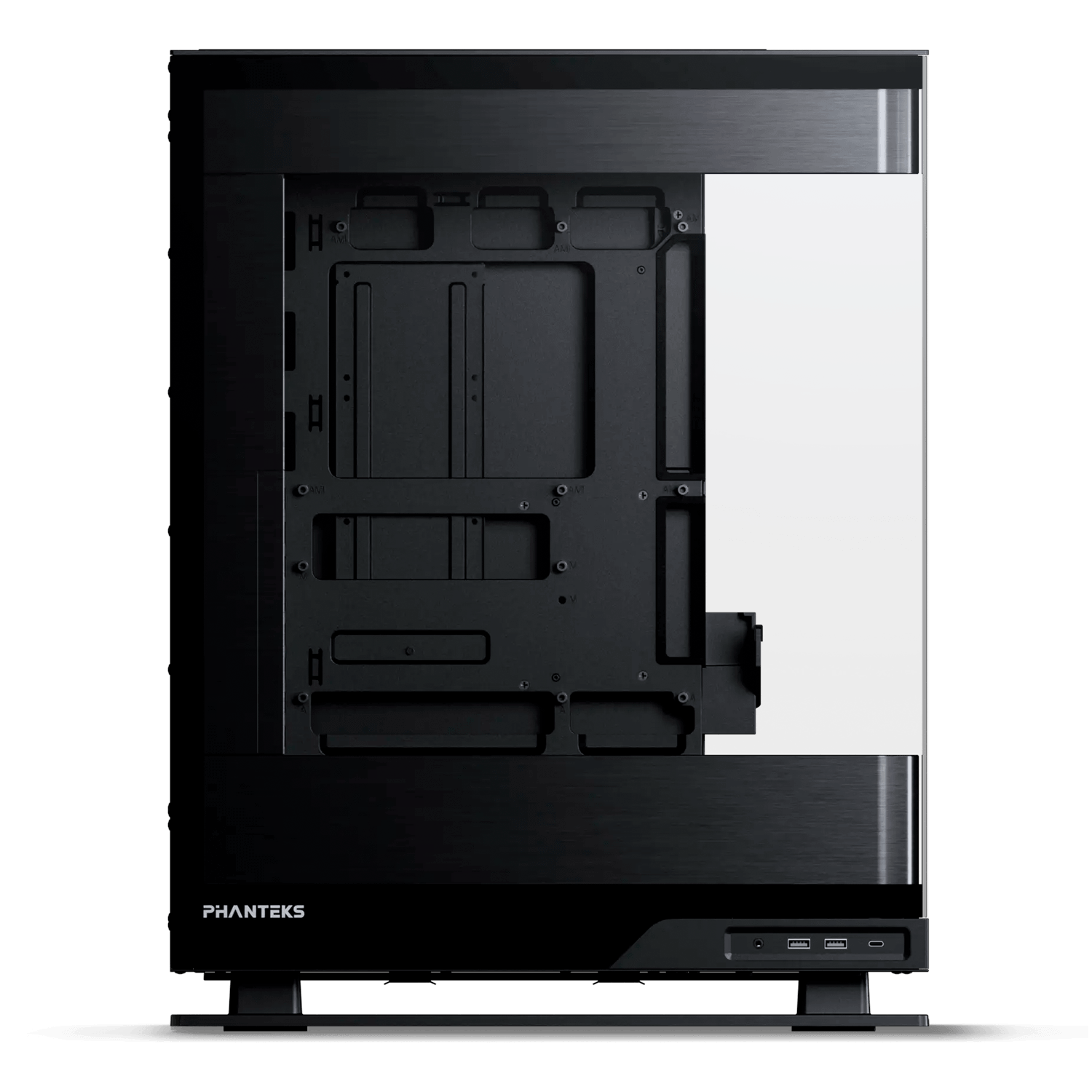

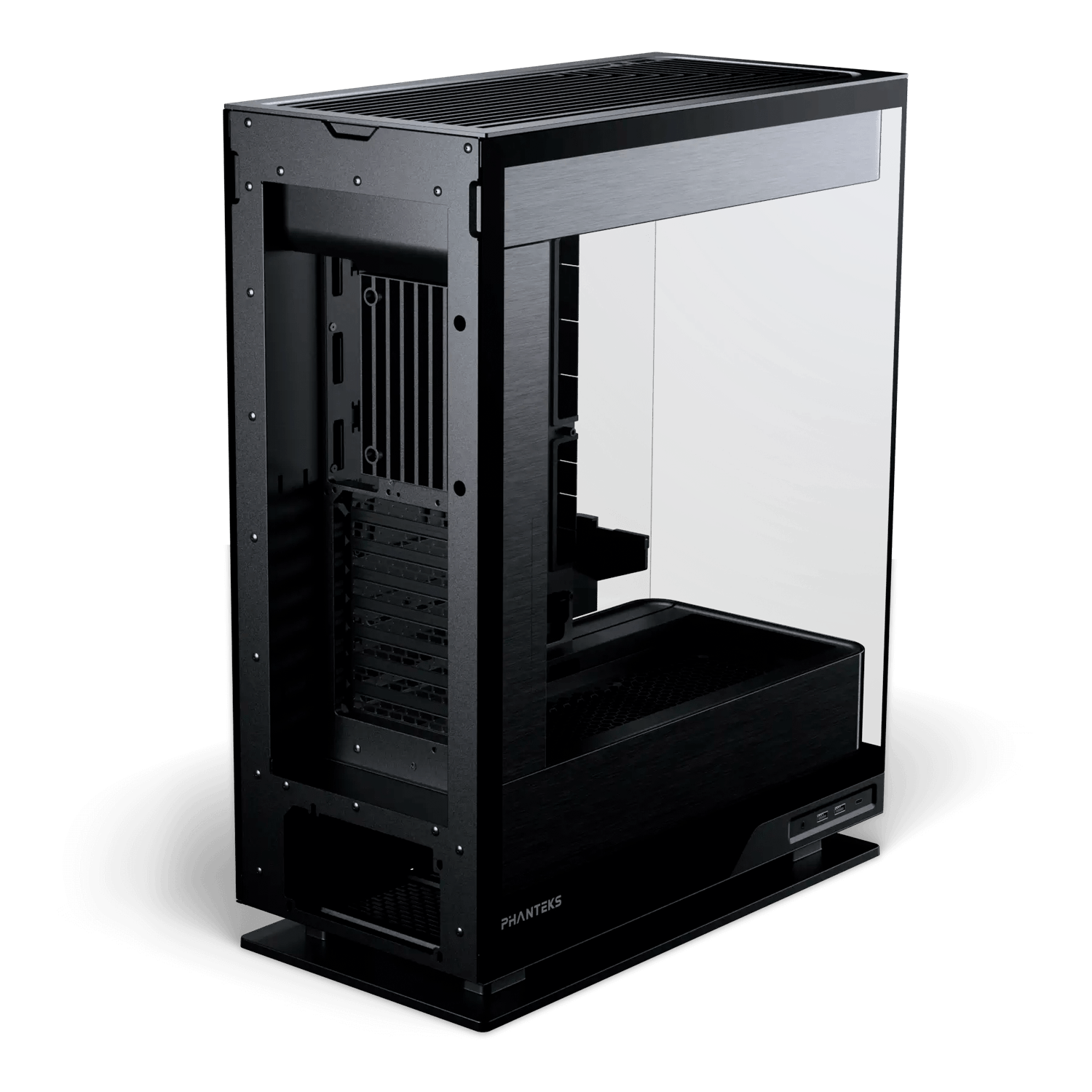

Evolv X2, Tempered Glass, No PSU, E-ATX, Brushed Black, Mid Tower Case
- SKU: 18445938
- Manufacturer: PHANTEKS
- MPN: PH-ES524XTG_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$192.97
| General | |
| Model No. | PH-ES524XTG_DBK0td> |
| UPC Code | 886523303688 |
| Case Dimensions | 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in |
| From Factor | Mid-Tower |
| Mainboard Support |
*E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide |
| Materials | Steel chassis | Aluminium panels | Tempered glass window | ABS plastic |
| Color | Brushed black aluminium |
| Expansion Slots | 8 |
| Vertical GPU Support |
Yes Riser cable & bracket sold separately |
| Internal 2.5″ Positions |
5 + 1x 3.5″ HDD |
| Internal 3.5″ Positions |
2 + 3x 2.5″ SSD |
| Front I/O |
2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Fans 120 | 140 | |
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | – | – |
| Side | – | – |
| Rear | 1 | – |
| Bottom | 3 | – |
| Radiator 120 | 140 | |
| Top | Max. 360 | – |
| Front | – | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler |
Height 170 mm | 6.69 in |
| GPU |
Length 380 mm | 14.96 in |
| GPU |
Width 170 mm | 6.69 in |
| Power Supply | 250 mm | 9.84 in |
| Top 360 Radiator |
Length x Width x Height 415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in |
| Extra | |
| Net Weight | 14.2 kg | 31.3 lbs |
| Gross Weight | 16.5 kg | 36.4 lbs |
| Warranty |
5 Years limited Learn more |
| Scope of Delivery |
1x Evolv X2 chassis 1x Storage bracket Pre-installed 1x SSD bracket Pre-installed |
| Accessory Box |
30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Vertical-GPU bracket screws 1x Mainboard stand-off |
| Screws |
6x Zip ties 1x Stand-off removal tool 1x D-RGB mainboard adapter 500 mm 1x Microfiber cloth |
