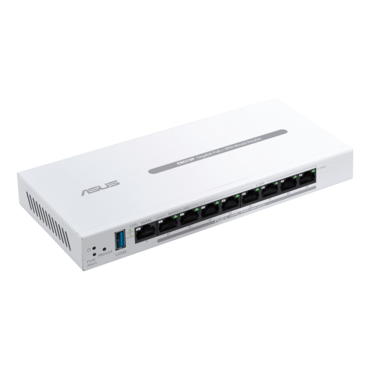

ExpertWiFi EBG19P, 8 PoE+ Ports Gigabit VPN Wired Router - TAA Compliant
- SKU: 17800806
- Manufacturer: ASUS
- MPN: EBG19P
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Power over Ethernet — 8 PoE ports capable of delivering up to 123 watts of power offer a convenient solution for powering various PoE-enabled devices.
- VLAN for Added Security —Each of the Ethernet ports can be assigned to one or more VLAN IDs that provides additional security for your business.
- Up to 3 WAN Ethernet Ports – 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balancing optimize multi-line broadband usage. Besides, the USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection.
- Device Management Made Easy — Conveniently centralized control over the PoE devices like EBA63 connected to the EBG19P via web browser or the ASUS ExpertWiFi mobile app.
- Commercial-Grade Network Security and VPN — Secure public WiFi connections with Safe Browsing and VPN features. Enjoy a free-subscription ASUS AiProtection Pro, including robust intrusion prevention system (IPS) features like deep packet inspection (DPI) and virtual patching to block malicious traffic.
| Model | ASUS ExpertWiFi EBG19P |
| Model Name | EBG19P |
| Network Standard |
IEEE 802.1p IEEE 802.1q IEEE 802.3 IEEE 802.3ab IEEE 802.3i IEEE 802.3u IEEE 802.3x IPv4 IPv6 |
| Antenna | Internal Bluetooth antenna x 1 |
| Processor | 1.8GHz Dual-core ARMv8 |
| Memory | 256 MB Flash 512 MB RAM |
| Operating Mode | AiMesh Node Mode |
| I/O Ports | Gigabit WAN Port x 1 Gigabit LAN Port x 8 (Changable WAN/LAN Port x 2) USB 3.2 Gen 1 x 1 |
| Buttons | Reset Button |
| LED Indicator | Power x 1 PoE Alert x 1 |
| Power Supply | AC Input : 110V~240V (50~60Hz) DC Output : 54 V with max. 2.278 A current |
| Package Content | ExpertWiFi EBG19P RJ-45 cable Power adapter Warranty card Quick start guide |
| Product Weight (g) | 530g |
| Product Dimentions | 212x95x26 mm |
| Remark | Content and color may vary in different regions and packages. |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Device Access Control |
"Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule • Maximum Device Access Control Profile :12 • Maximum Device Access Control Content Filter Rule :12 |
| Dashboard | Dashboard |
| Self-Defined Network |
"You can create additional networks for different purposes, these networks are separate from the main
network domain, to provide enhanced security, and create comprehensive network environment with
customized settings." • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule :16 VLAN Bandwidth Limiter AP isolate DNS Server Connection |
| Security |
AiProtection VPN Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 |
| AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN |
VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
| Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor Traffic Analyzer • Website History |
| WAN |
Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN Multi WAN Group WAN Aggregation 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through • RTSP Pass-Through • H.323 Pass-Through • PPPoE Relay |
| LAN |
DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Wake on LAN (WOL) VLAN |
| USB application |
4G / 5G Auto Mobile Tethering Safely Remove Disk Media Server Samba Server FTP Server Shared Folder Privileges |
| User Interface | WEB: ASUSWRT APP: ASUS ExpertWiFi APP |
| Management | Multiple Site Management |
| Administration |
Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
