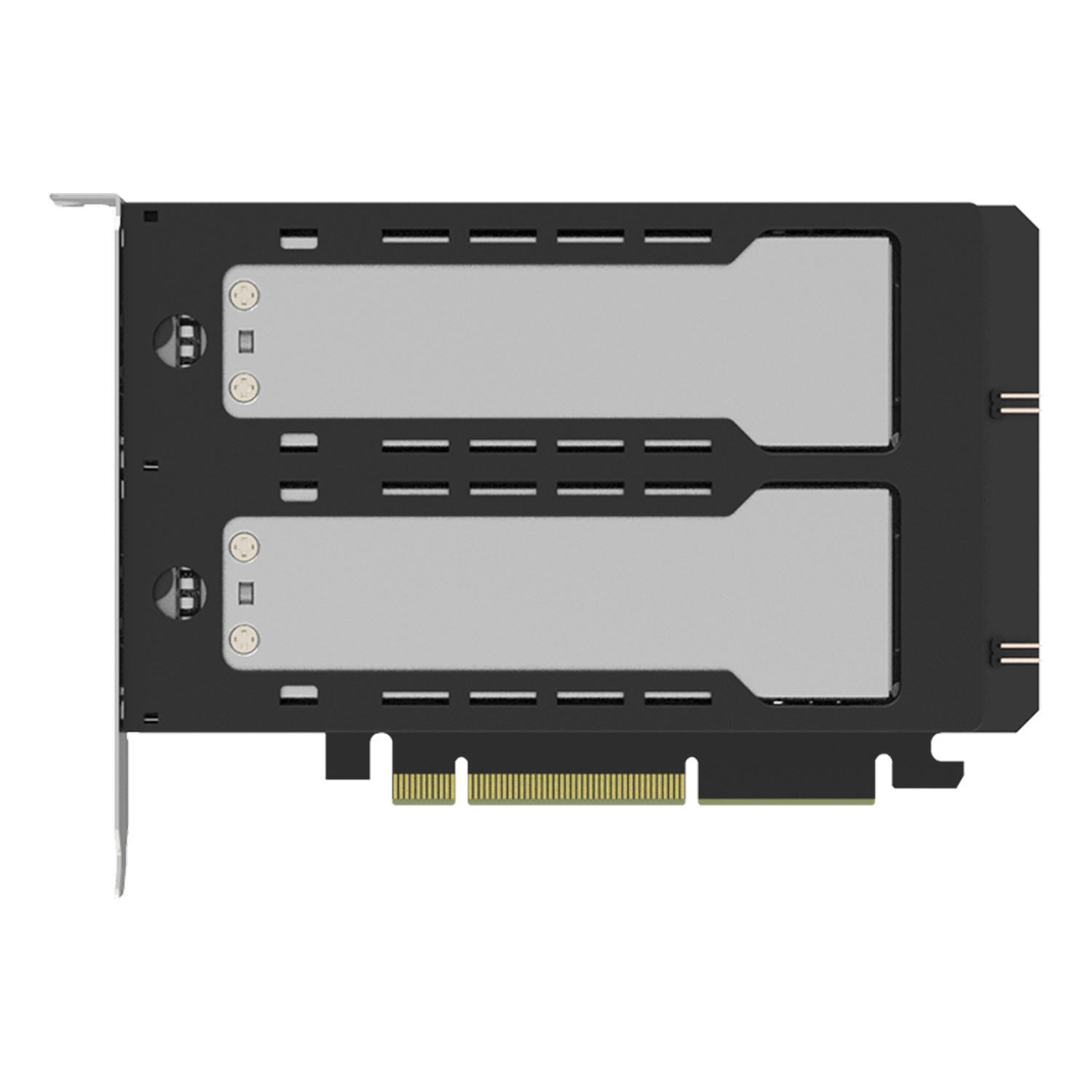

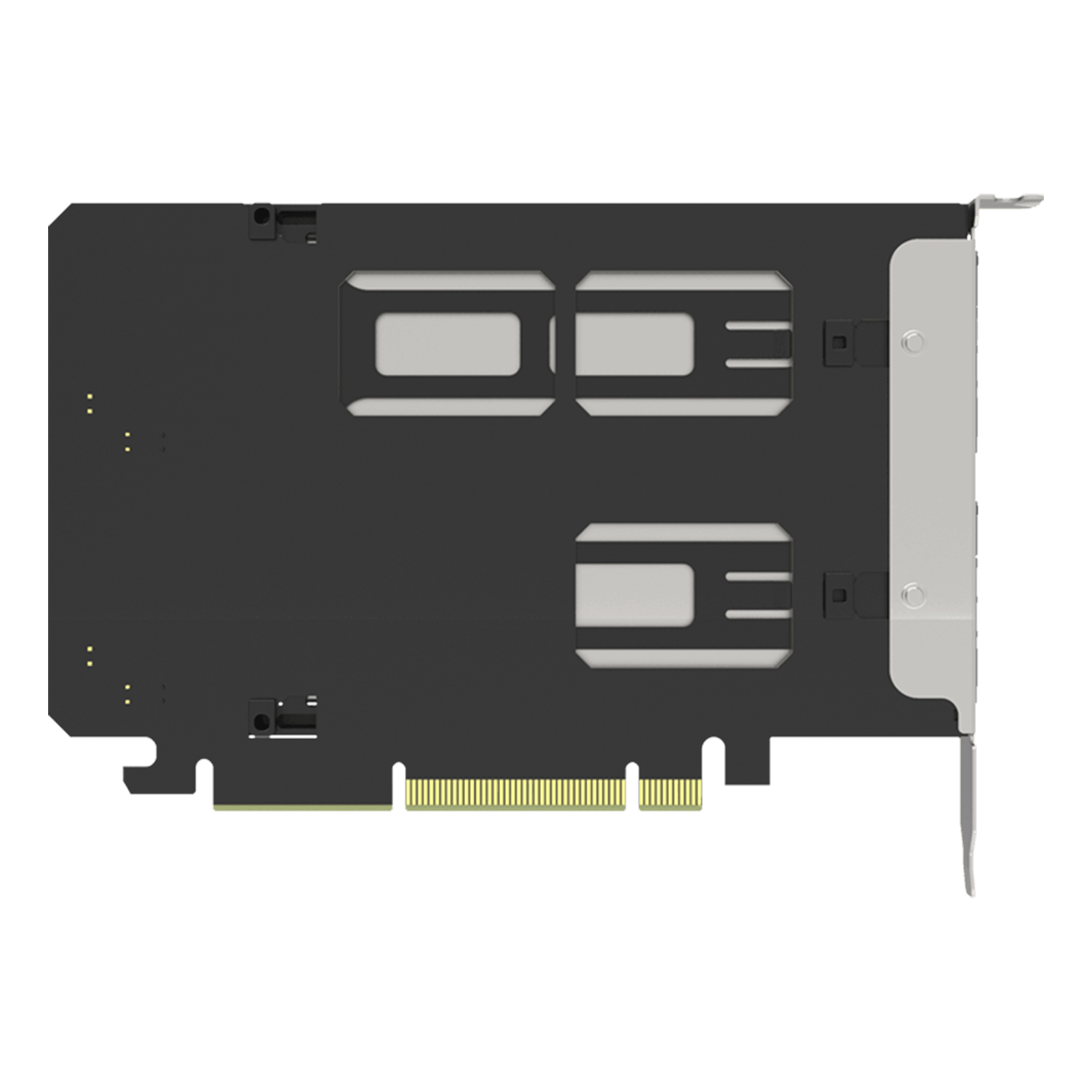

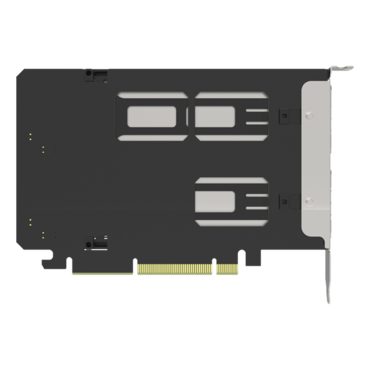

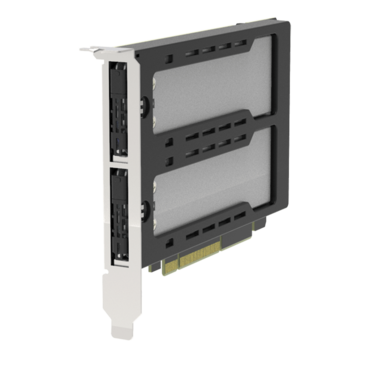

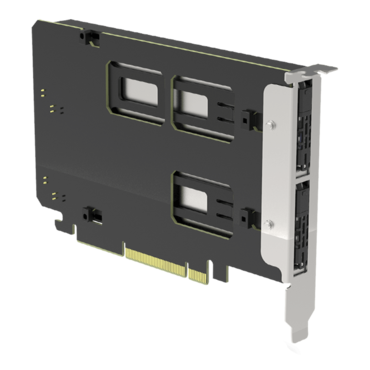

| Model Number: |
MB842M5P-B |
| Color: |
Black & silver |
| Support Drive Size: |

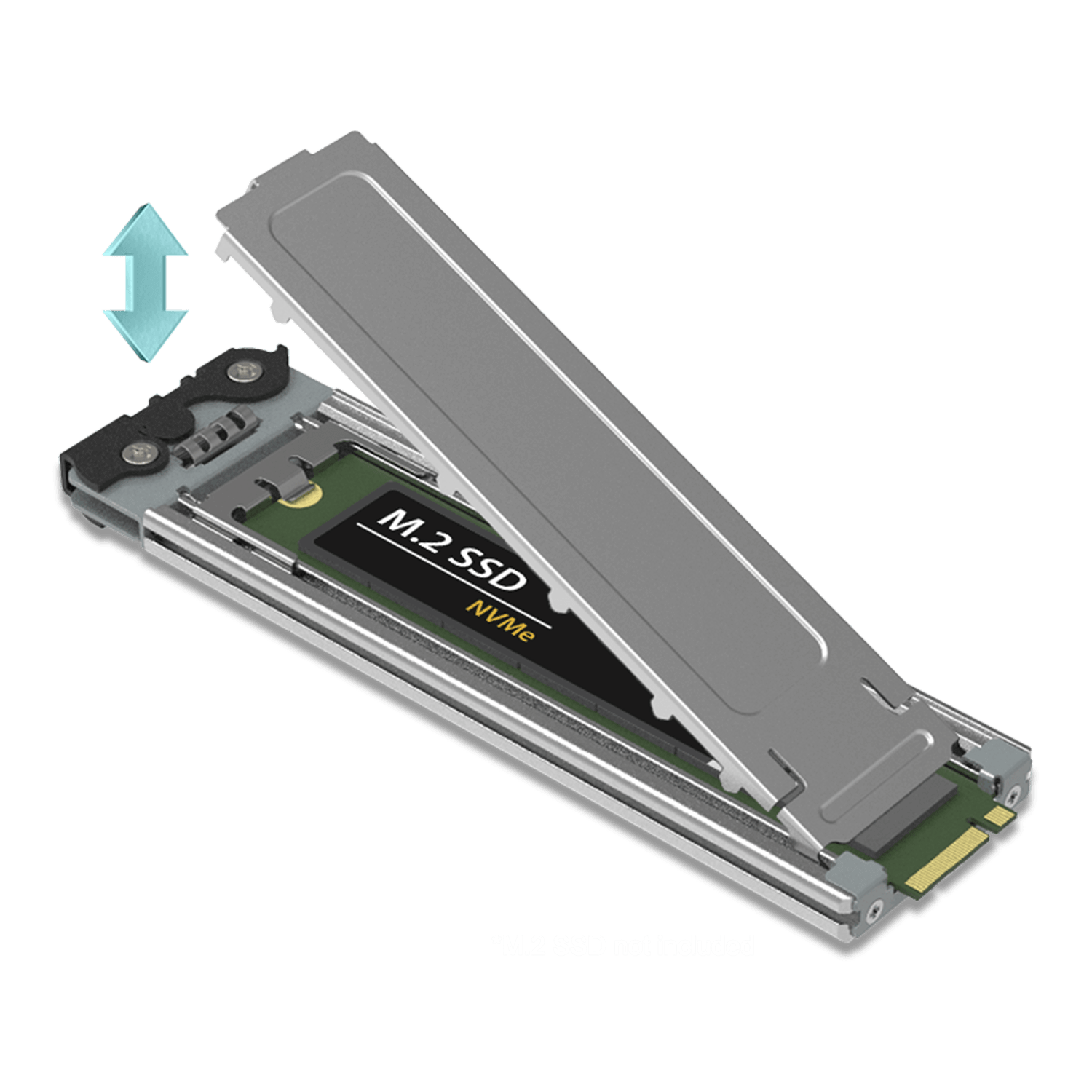

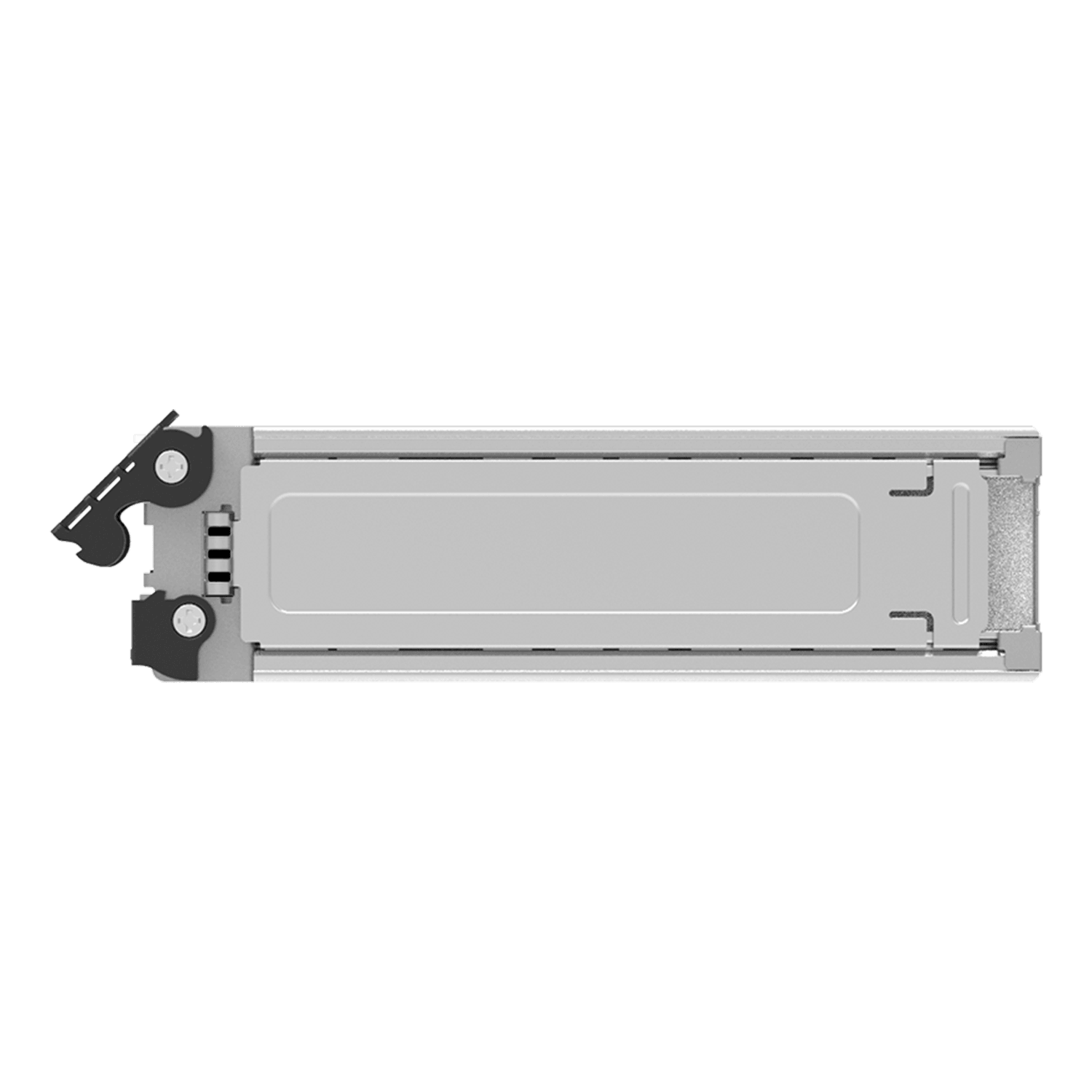

2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) |
| Compatible Drive Type: |
M.2 PCIe 5.0/4.0/3.0 NVMe SSD |
| Number of Drives: |
2 |
| Support Drive Length: |
30mm – 110mm |
| Drive Bay: |
1 x PCIe 5.0 x8 or x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4, or PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface: |
PCIe 5.0 x8 |
| Power Input: |
Via PCIe |
| Transfer Rate: |
Up to 128Gbps (depending on hard drive speed) |
| Support SSD Capacity: |
No limitation |
| Drive Cooling: |
Metal heat dispersion with passive cooling |
| Structure / Material: |
Metal with partial ABS plastic |
| Dimension (W x H x D) : |
171 x 120.8 x 21.6 mm |
| Product Net Weight: |
229.7g |
| Package Gross Weight: |
331g |
| Drive Activity LED Indication: |
Drive power: solid green; Drive access: flashing green |

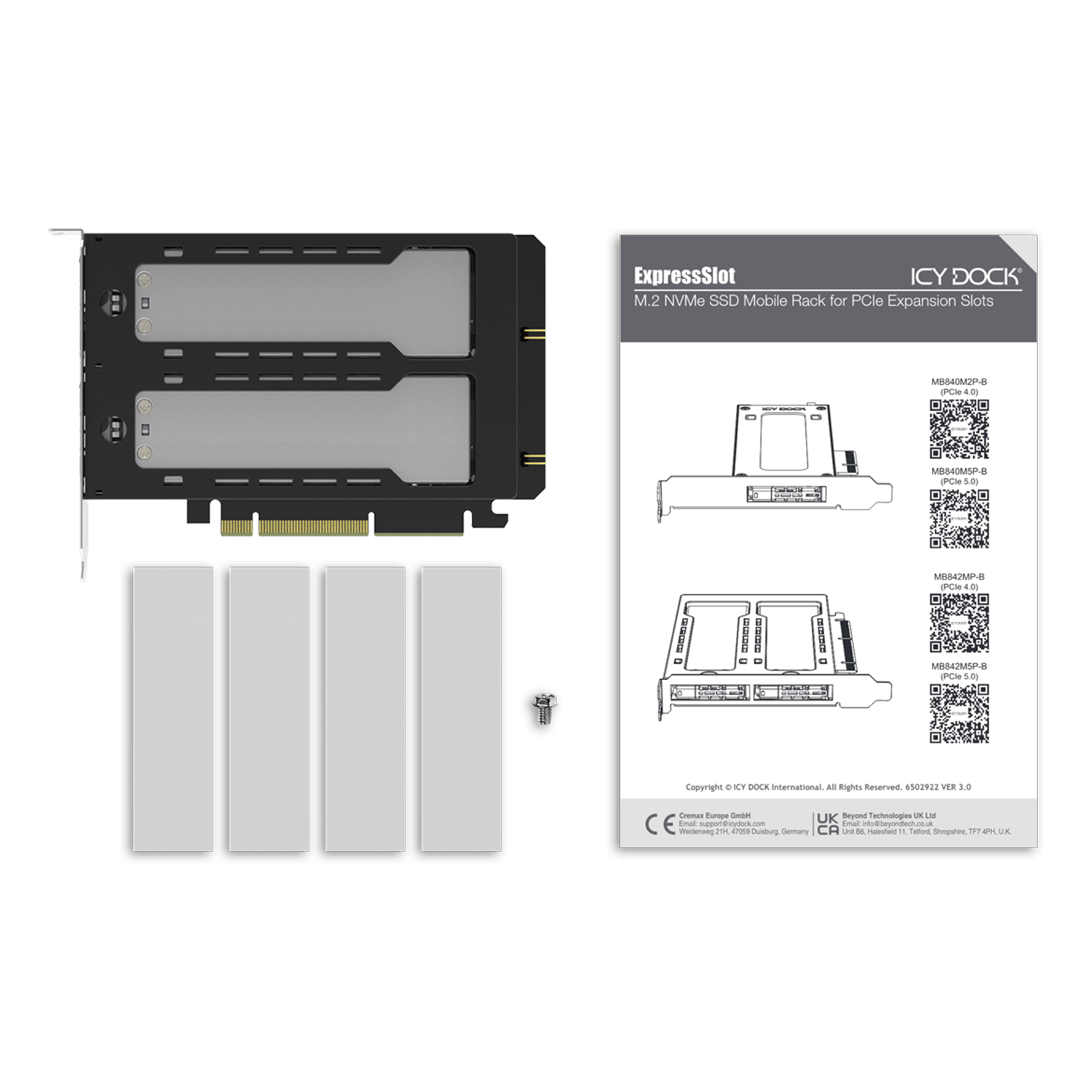

| Package Contents: |
Device, user manual, screw, thermal pads |
| Connector Insertion Rate: |
5,000 |
| Humidity: |
5%~65% RH |
| Operating Temperature: |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature: |
-35°C to 70°C (-31°F to 158°F) |
| Compliance: |
CE, RoHS, REACH |
| Warranty: |
5 years limited warranty |
