Extended Battery Module BP144VL2U01, 144V/55A, Black, Tower/2U Rackmount Battery Pack
Quantity:
- SKU: 12843221
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BP144VL2U01
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,449.95

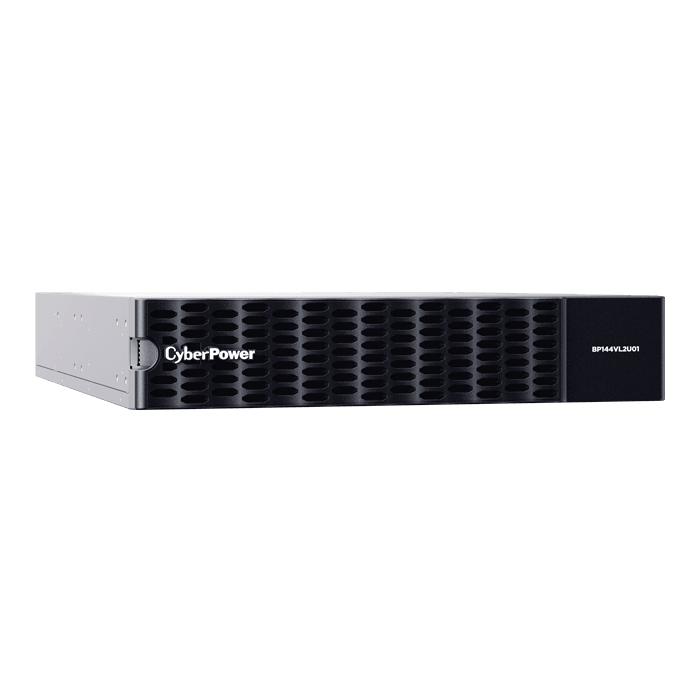

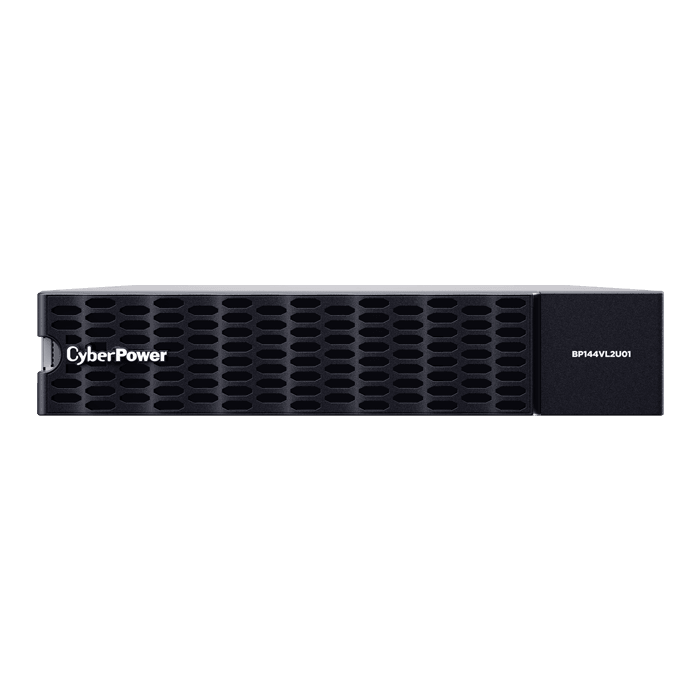

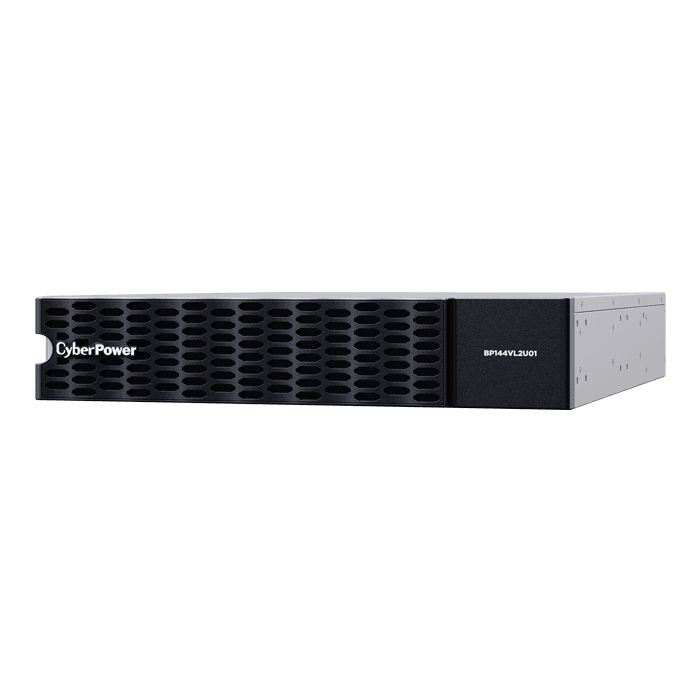

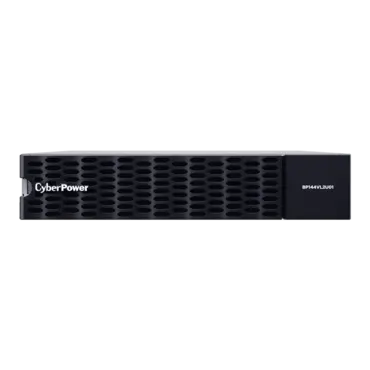

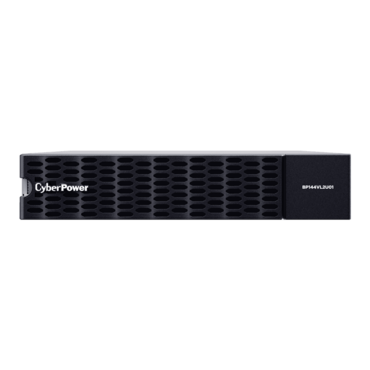

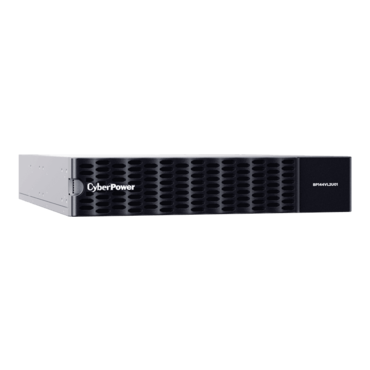

Extended Battery Module BP144VL2U01, 144V/55A, Black, Tower/2U Rackmount Battery Pack
The CyberPower BP144VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL5KRTHD and OL6KRTHD.
The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
- Typical recharge time (0-90%): 4 hours
- Battery type & quantity: 12V/9AH (12)
- Form factor: Rack/Tower
- Hot swappable: Yes
- Battery Equalization Technology: Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
- Warranty: 3 year
| General | |
| Amperage | 55A |
| DC Voltage | 144V |
| Battery | |
| Battery Quantity | 12 |
| Battery Size | 12V/9AH |
| Battery Type | Sealed lead acid |
| Built-in Charger | Yes |
| Expansion Ready (Daisy-Chain) | Yes |
| Hot Swappable | Yes |
| Replacement Battery | (2) RB1290X6D |
| Typical Recharge Time | 4 Hours (0-90%) |
| User Replaceable | Yes – Qualified Personnel Only |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.64 x 71.88 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17 x 3.4 x 28.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 432 x 86 x 719 (mm) |
| Weight (kg) | 43.91 |
| Weight (lb) | 96.8 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 52.98 |
| Shipping – Weight (lb) | 116.8 |
| Shipping Dimensions – (WxHxD) (cm) | 59.94 x 21.59 x 109.98 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.6 x 8.5 x 43.3 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 599.44 x 215.9 x 1099.82 (mm) |
| Physical | |
| Enclosure Construction | Steel |
| Form Factor | Rack / Tower Convertible |
| Mounting Hardware Included | Yes |
| Environmental | |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Operating Relative Humidity | 0% – 90% non condensing |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Storage Relative Humidity | 0% – 95% non condensing |
| Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Warranty | |
| Extended 2-Year Warranty | Optional WEXT5YR-BP5 |
| Product Warranty | 3 Years Limited |
