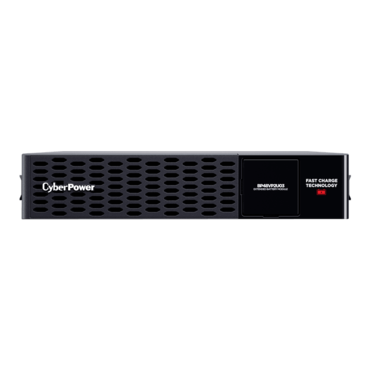

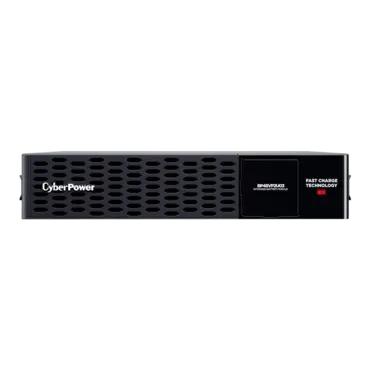

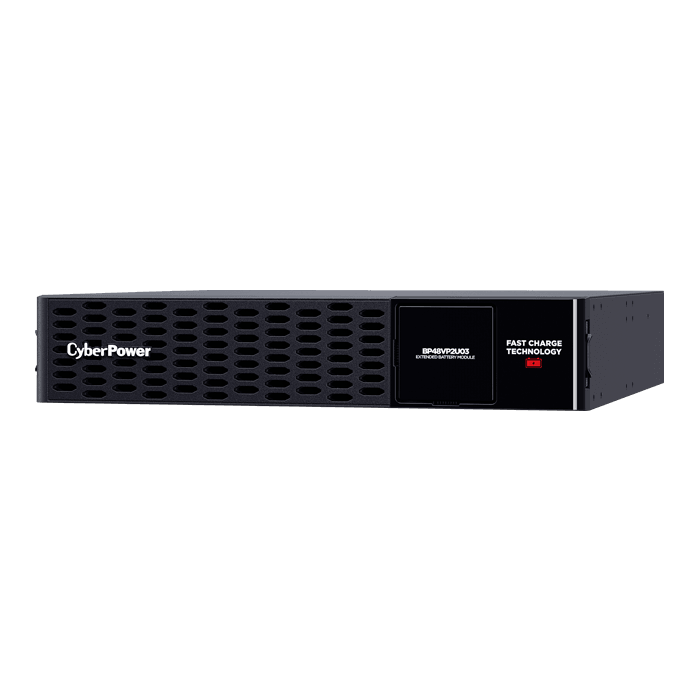

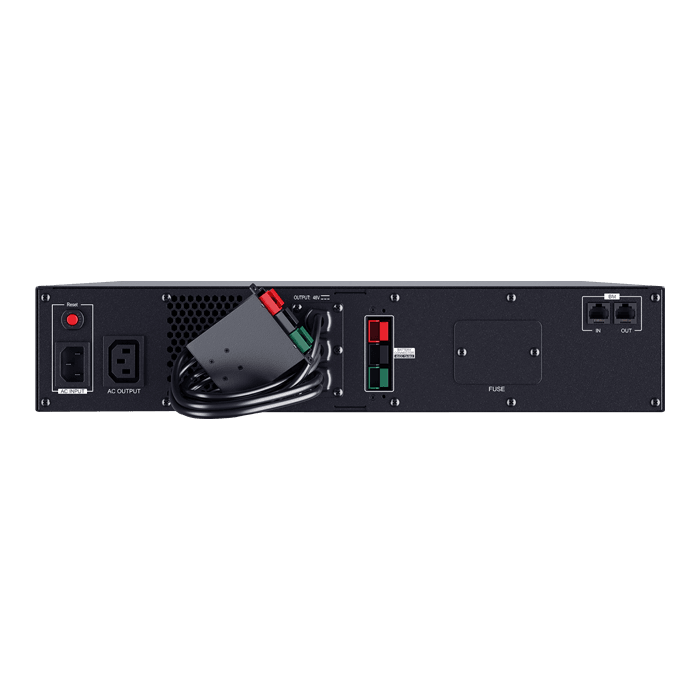

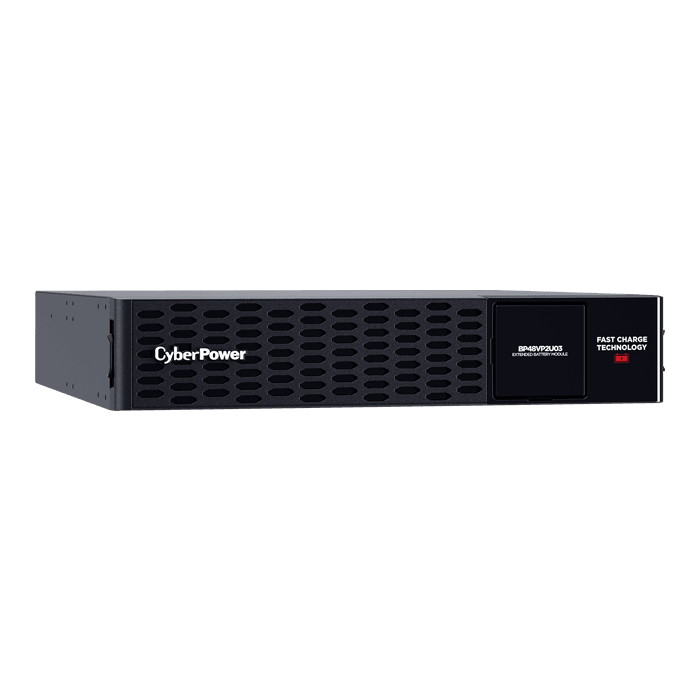

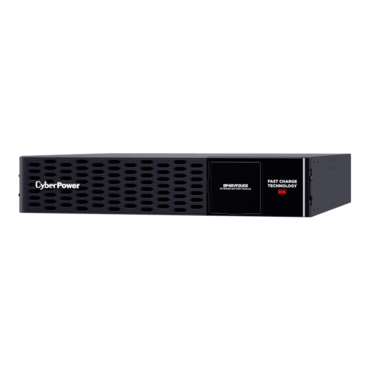

Extended Battery Module BP48VP2U03, 48V/70A, Black, Tower/2U Rackmount Battery Pack

SKU: 13144638

Manufacturer: CYBERPOWER SYSTEMS

MPN: BP48VP2U03

Availability: Low Stock


Price: $649.95
or as low as $21/month
Quantity:
  • Output: 48V/70A
  • Recharge time: 6 hours
  • Battery type & quantity: 12V/6Ah (16)
  • Weight: 90.6 lbs.
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Warranty: 3 year
General
Amperage 70A
DC Voltage 48V
Battery
Battery Quantity 16
Battery Size 12V/6Ah
Battery Type Sealed Lead-Acid
Built-in Charger Yes
Hot Swappable Yes
Replacement Battery RB1260X8
Replacement Battery Cartridge Quantity 2
Typical Recharge Time 6 hours
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.43 x 8.64 x 62.99 (cm)
Physical Dimensions – (WxHxD) (in) 17.1 x 3.4 x 24.8 (in)
Physical Dimensions – (WxHxD) (mm) 434 x 86 x 630 (mm)
Weight (kg) 41.1
Weight (lb) 90.6
Dimensions – Shipping
Shipping – Weight (kg) 47.63
Shipping – Weight (lb) 105
Shipping Dimensions – (WxHxD) (cm) 57.91 x 27.43 x 76.2 (cm)
Shipping Dimensions – (WxHxD) (in) 22.8 x 10.8 x 30 (in)
Shipping Dimensions – (WxHxD) (mm) 579.12 x 274.32 x 762.0 (mm)
Input
Input Frequency 50/60 Hz
Input Voltage Range 100-240Vac
Plug Type IEC-320 C14
Physical
Color Black
Rack Size 2U
Environmental
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Certifications
Environmental RoHS Compliant
Safety CE, RCM, UL1778, cUL, FCC Class B, VCCI
Warranty
Product Warranty 3 Years Limited
