Extended Battery Modules BP192VL2U01, 192V/60A, Black, Tower/2U Rackmount Battery Pack
Quantity:
- SKU: 15908494
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BP192VL2U01
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,469.95

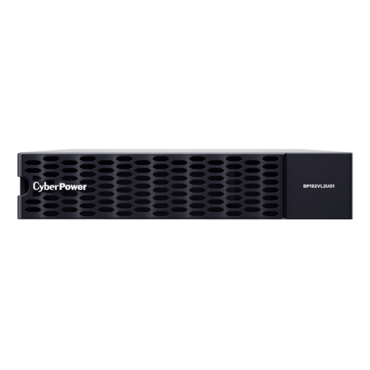

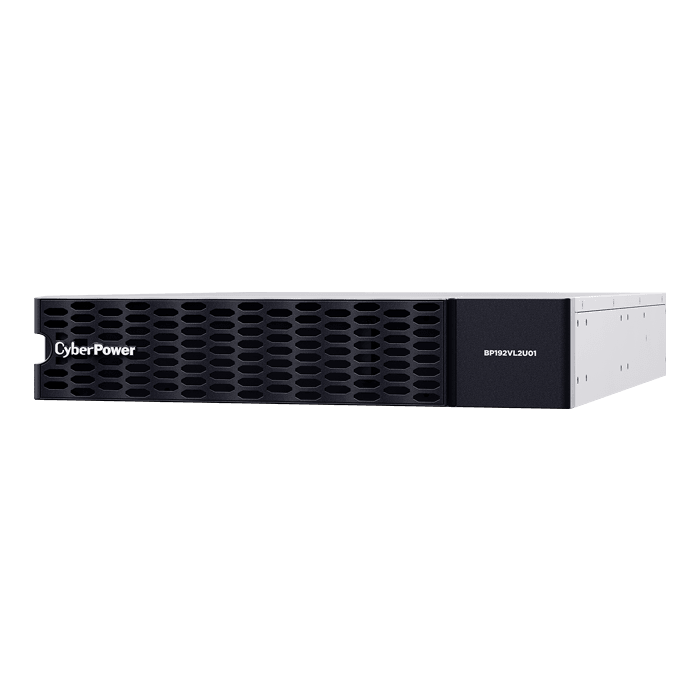

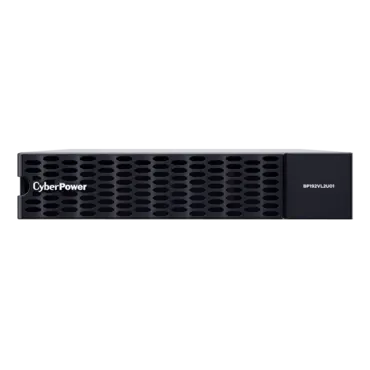

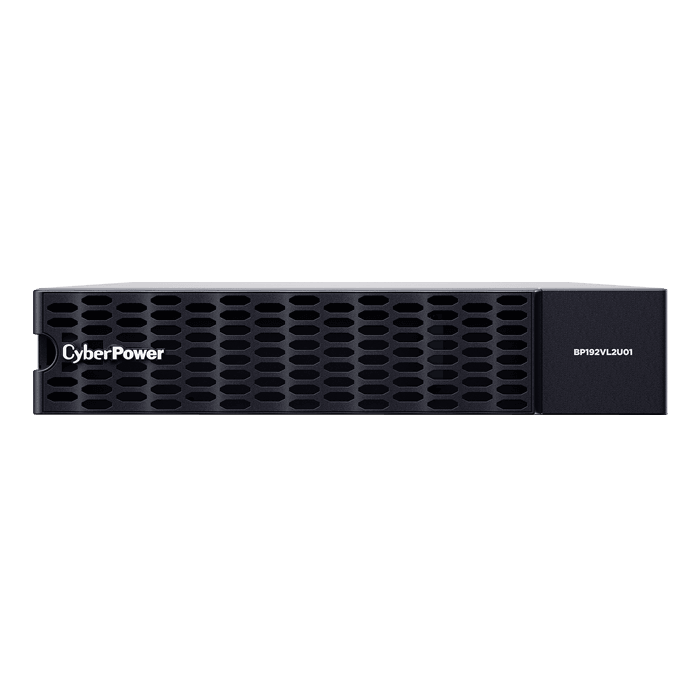

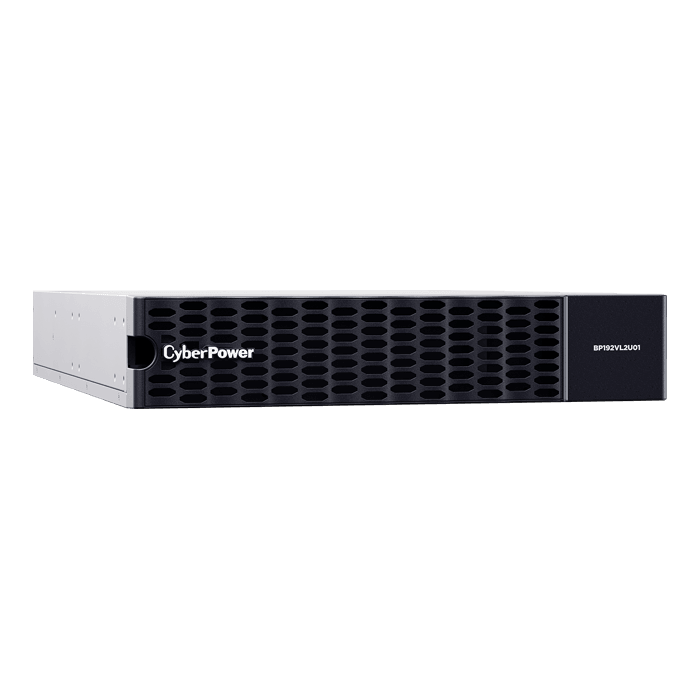

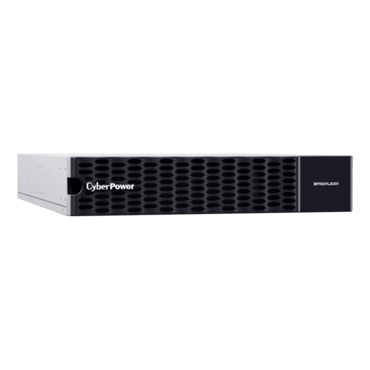

Extended Battery Modules BP192VL2U01, 192V/60A, Black, Tower/2U Rackmount Battery Pack
The CyberPower BP192VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL8KRTHD and OL10KRTHD.
The BP192VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
-
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs. -
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the
voltages of the batteries at the same level to increase battery life. -
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by
utilizing a built-in charger. Restores charge from 0-90% within four
hours regardless of the number of EBMs. -
Smart Battery Management
Improves and extends the functional life of a UPS battery and reduces
excessive heat during work cycles by using a three-cycle charging
process. -
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power
maintenance. -

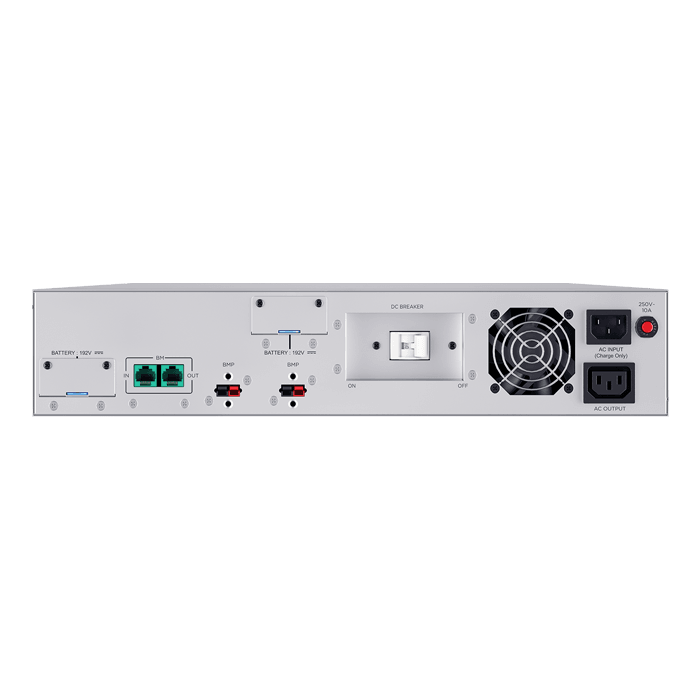

Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system. -
Replaceable DC Fuses
Are located behind an easy-access panel. -
Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload. -
Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation. -
Three-Year Warranty
Gives you peace of mind knowing we will repair or replace a defective
UPS system (including batteries) within three years of the purchase
date. See warranty for details.
| General | |
| Amperage | 60 A |
| DC Voltage | 192 VDC |
| Battery | |
| Battery Quantity | 16 |
| Battery Size | 12 V / 6 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Built-in Charger | Yes |
| Expansion Ready (Daisy-Chain) | Yes |
| Field-serviceable Battery | Replaceable by qualified technician |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1260X8A (1) (Left) + RB1260X8B (1) (Right) |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| Output | |
| USB Charge Port | No |
| Physical | |
| Chassis Color | Unpainted |
| Form Factor | Rack / Tower |
| Front Panel Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.64 x 71.88 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.4 x 28.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 86 x 719 (mm) |
| Physical Weight (kg) | 45.99 |
| Physical Weight (lb) | 101.4 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 54.11 |
| Shipping – Weight (lb) | 119.3 |
| Shipping Dimensions – (WxHxD) (cm) | 59.79 x 21.31 x 109.8 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.54 x 8.39 x 43.23 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 597.92 x 213.11 x 1098.04 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 CSA C22.2 No.107.3 FCC Part 15 Class A |
| Warranty | |
| Extended Warranty Option | Not Available |
| Product Warranty | 3 Year Limited Warranty |
