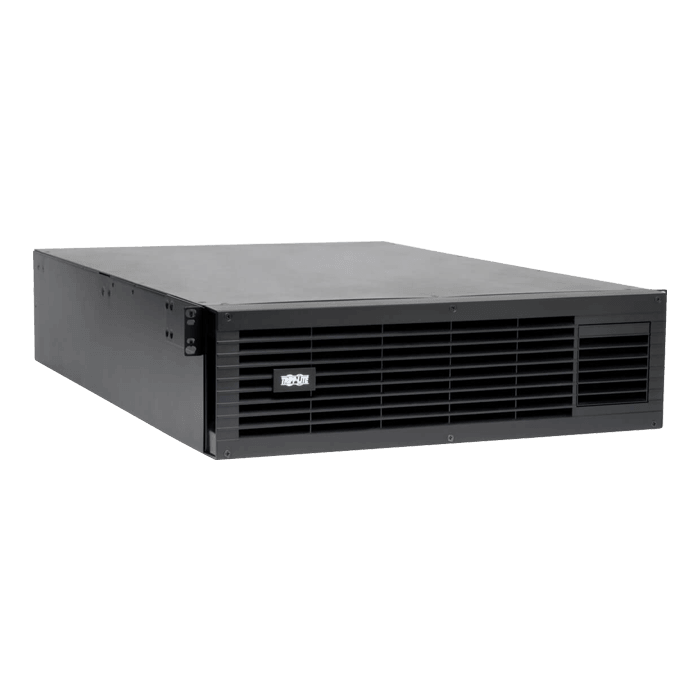

External 48V 3U Rack/Tower Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V60RT-3U)

  • SKU: 28481
  • Manufacturer: TRIPP LITE
  • MPN: BP48V60RT-3U
  • Availability: TEMPORARILY OUT OF STOCK
Price
$1,793.98
Quantity:
External 48V 3U Rack/Tower Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V60RT-3U)
BP48V60RT3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 3 rack spaces (3U).

BP48V60RT-3U

External Battery Pack and Cable. 3U, Expandable, Blue 2-Point Connector

Key Features:

  • Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
  • Supports stacking or rackmount installation using only 3 rack spaces (3U)
  • Includes heavy gauge cabling with high current DC connectors for simple installation
  • Additional output connector allows multiple BP48V60RT3U battery packs to be daisy-chained to the UPS for even longer extended run operation

Features:

  • Extends runtime of select compatible Tripp Lite UPS Systems with 48VDC external battery connector
  • Provides daisy-chain capability
  • Simple installation; 3U rackmount, tower and stack adaptable

Overview:

BP48V60RT3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 3 rack spaces (3U). Includes heavy gauge cabling with high current DC connector for simple installation. Additional output connector allows multiple BP48V60RT3U battery packs to be daisy-chained to the UPS for even longer extended run operation.

Compatible UPS Systems

SMART2200RMXL2U, SMART2600RM2U, SMART3000RM2U, SMART5000RT3U, SMX5000XLRT3U, SMX3000XLRT2U and other Tripp Lite UPS systems that specify the use of this battery pack.

Specifications:

BATTERY
Expandable battery runtime Blue 175 amp female connector for additional battery packs
DC system voltage (VDC) 48
Connects to UPS via 20 inch attached cable with blue 175 amp male DC connector
Typical battery lifespan 4-6 years typical (North America)
PHYSICAL
Shipping weight (lbs) 200.6
Shipping weight (kg) 91.1
Unit Dimensions (HWD/in) 5.25 x 17.5 x 25
Unit Dimensions (HWD/cm) 13.3 x 44.4 x 63.5
Shipping Dimensions (HWD/in) 11.25 x 23 x 31.5
Shipping Dimensions (HWD/cm) 28.6 x 58.4 x 80
Unit weight (lbs) 163.1
Unit weight (kg) 74
Material of construction Steel
Form factors supported 3U rack/tower
ENVIRONMENTAL
Operating Temperature 32-104 degrees F / 0-40 degrees C
WARRANTY
Product Warranty Period (U.S. & Canada) 2-year limited warranty
Product Warranty Period (International) 1-year limited warranty
Product Warranty Period (Mexico) 1-year limited warranty
Product Warranty Period (Puerto Rico) 1-year limited warranty
Optional Coverage 3 year, 5 year, next day and on-site warranty coverage available

Typical Applications

  • Ideal means of lengthening the battery runtime provided by compatible Tripp Lite UPS systems. Battery pack may be ordered at time of original UPS purchase or sourced at a later date to extend runtime performance if site power conditions deteriorate and longer battery runtime is desired.

Package Includes

  • BP48V60RT3U external battery pack
  • Mounting hardware
  • Warranty information
  • Instruction manual
