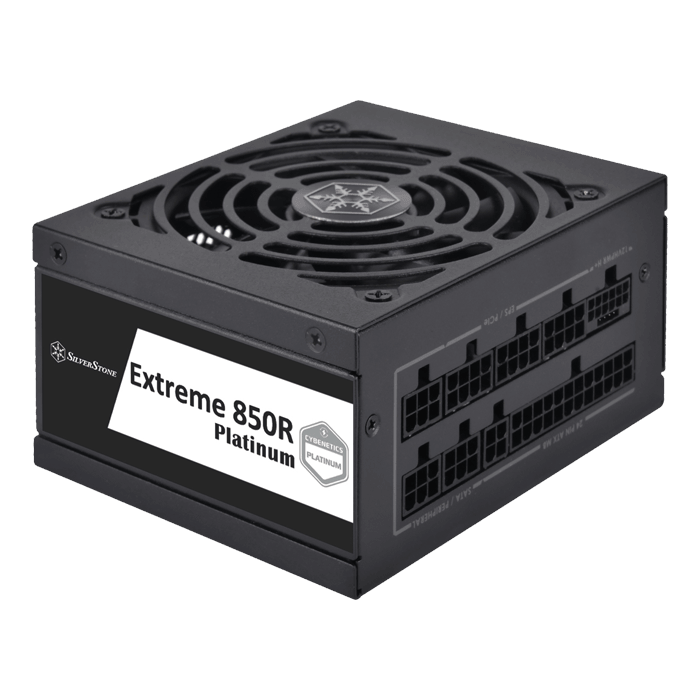

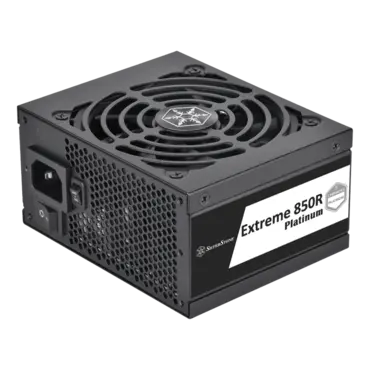

Extreme 850R, 80 PLUS Platinum 850W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 15538833
- Manufacturer: SILVERSTONE
- MPN: SST-EX850R-PM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$230.00
Extreme 850R, 80 PLUS Platinum 850W, Fully Modular, SFX Power Supply
Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50?operating temperature

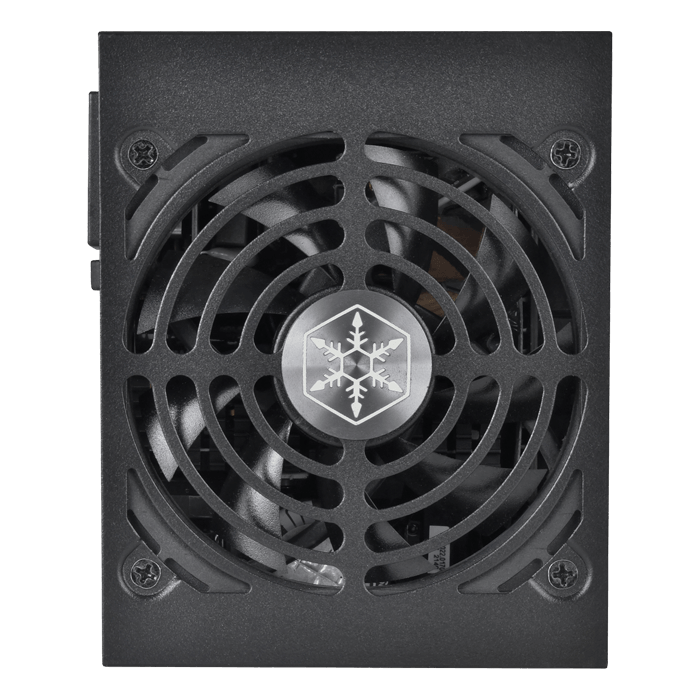

- Ultra-silent 92mm FDB fan with fan intelligent deactivates and delayed shut off function
- Flexible flat cables have much greater flexibility to allow for tighter folding
- Fully Modular design
- All Japanese electrolytic capacitors

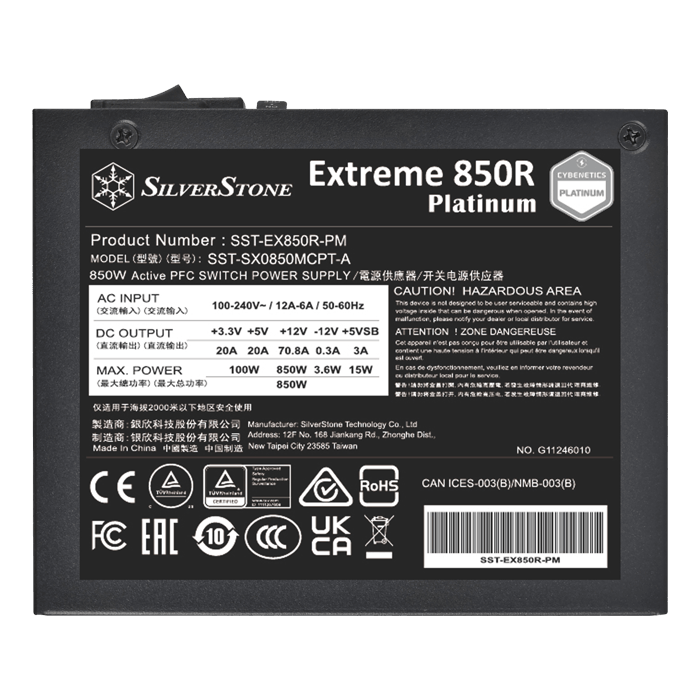

| Product No. | SST-EX850R-PM | ||||
| Model (safety certification) | SST-SX0850MCPT-A | ||||
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 850W | ||||
| Power density | 1070W per liter | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 20A | 20A | 70.8A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | +5/-7% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
| Combined +3.3V & +5V | 100W | ||||
| Combined +12V | 850W | ||||
| Input Voltage | 180 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC.(PF>0.9 at Full Load) | ||||
| Efficiency | ≥89% & <91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection No load operation |
||||

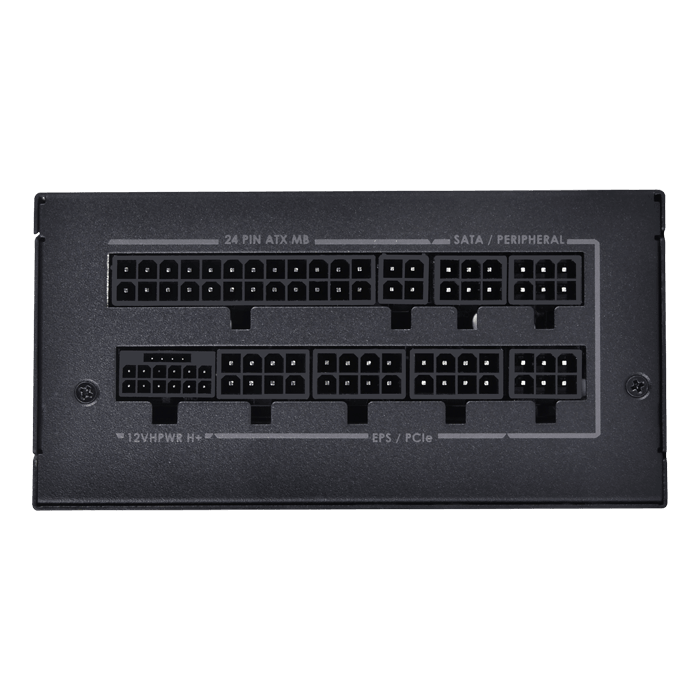

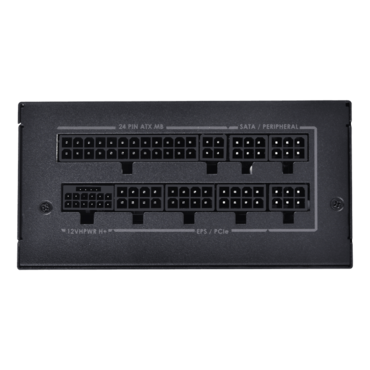

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 2 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 8 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
||||
| Cooling System | Silent 92mm FDB fan | ||||
| Noise Level | 0 dBA minimum | ||||
| Certification | Cybenetics Platinum | ||||
| Form factor | SFX | ||||
| Dimension | 125 mm (W) × 63.5 mm (H) × 100 mm (D) | ||||
| Weight | 1.6kg | ||||
