| Key Specs |
| Material: |
Plastic, rubber, PCB |
| Fan Rated Voltage: |
12 V DC, 0.2 A, 2.4 W |
| LED Quantity: |
8 |
| Bearing: |
Fluid Dynamic Bearing (FDB) |
| Fan Connector: |
4-pin PWM |
| Dimensions |
| Height: |
120mm |
| Width: |
120mm |
| Depth: |
26mm |
| Cooling |
| Speed: |
500 - 1,800 ± 180RPM |
| Airflow: |
78.86 CFM |
| Static Pressure: |
2.57 mm H2O |
| Noise: |
33.88 dBA |
| Bearing: |
Fluid Dynamic Bearing |
| Power Consumption: |
12 V DC, 0.2 A, 2.4 W |
| Connector: |
4-pin PWM |
| Output LED: |
8 LEDs |
| Connections & Cable Length (PWN): |
4-pin PWM Fan Cable – 600mm x1 |
| Connections & Cable Length (NZXT): |
4-pin NZXT RGB Cable – 600mm x1 |
| Fan Life |
| Hours: |
60,000 |
| Years: |
6 |

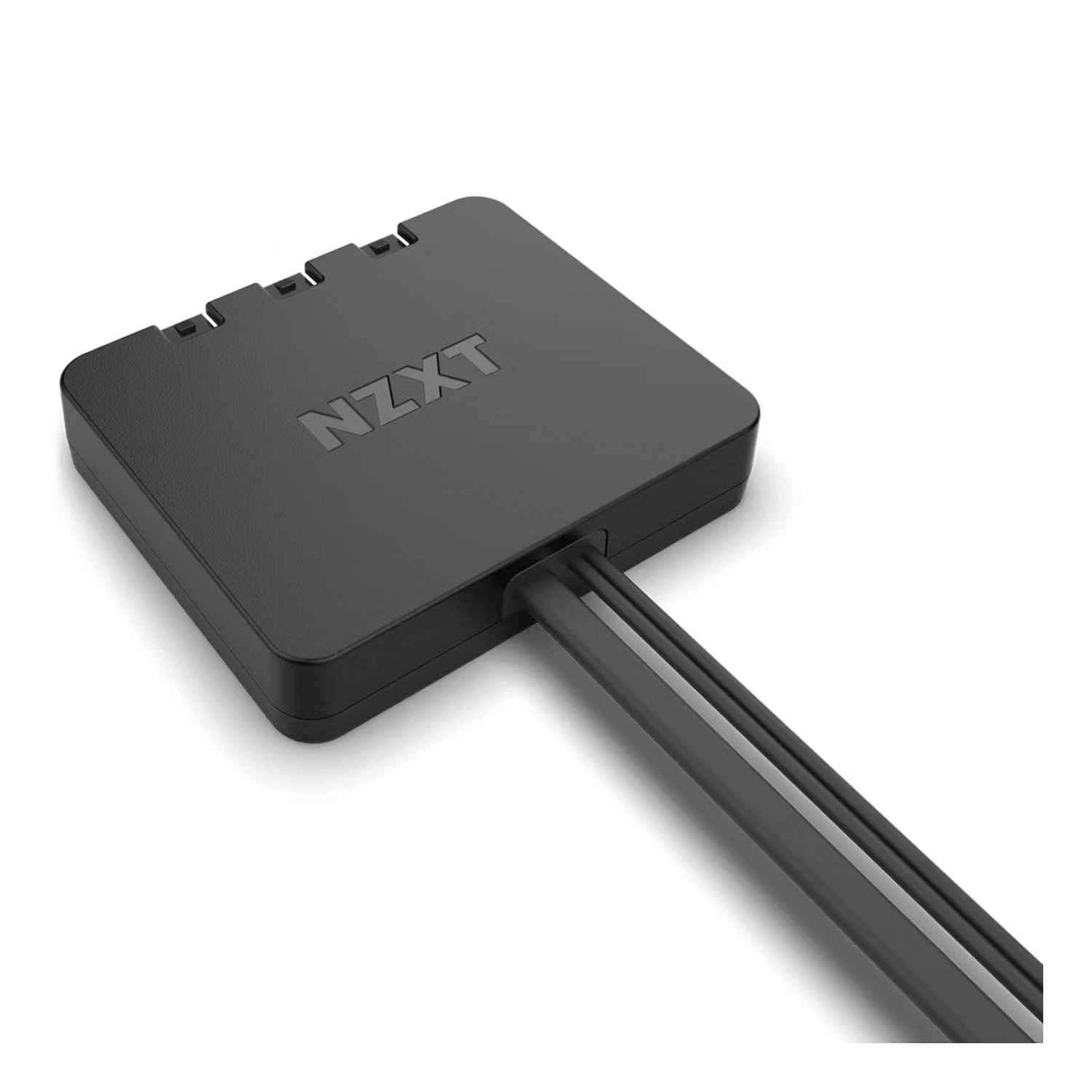

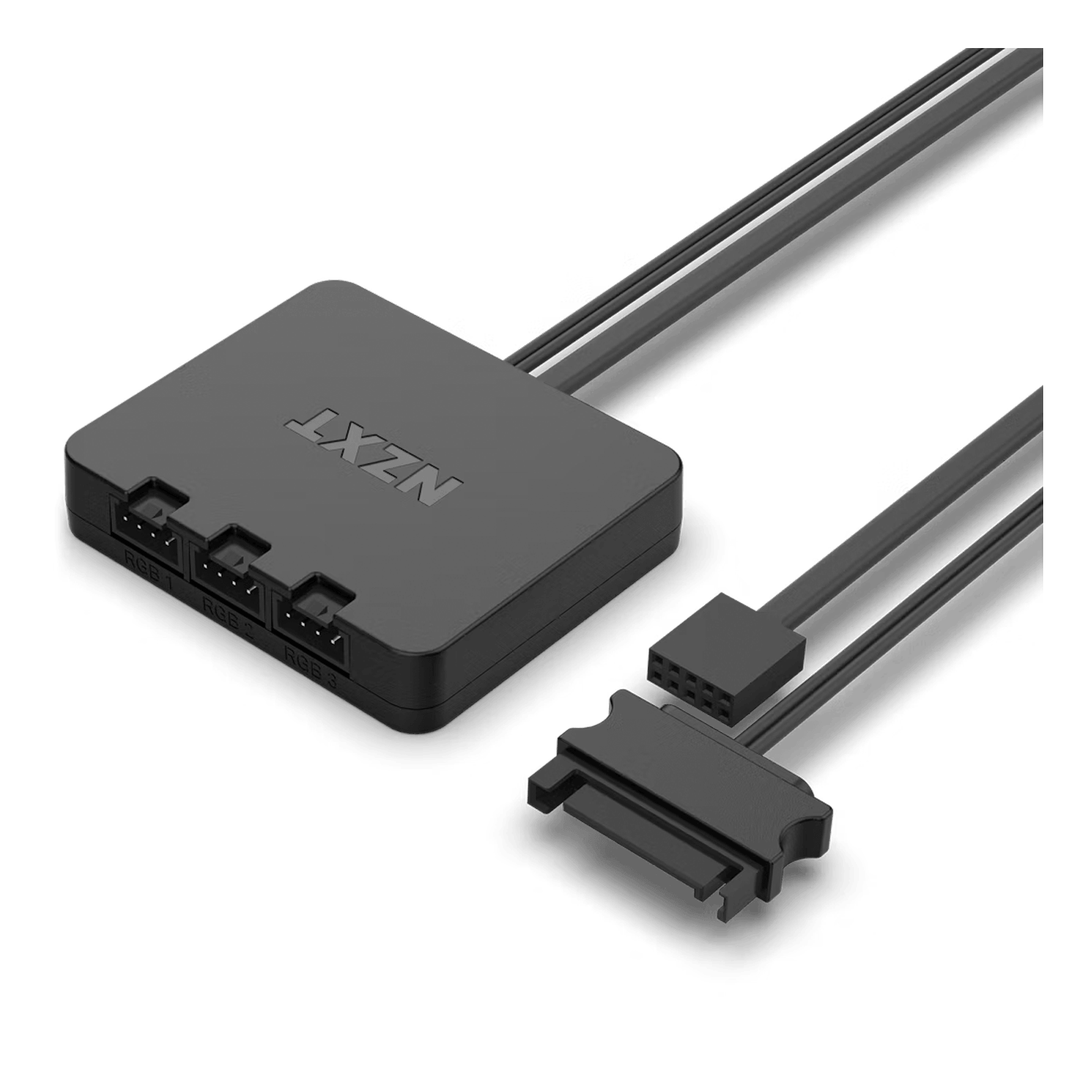

| RGB Controller |
| Dimensions: |
63.2 x 53.2 x 12.8mm |
| Weight: |
52.8g |
| Material(s): |
Plastic, PCB, Magnets |
| Mounting: |
2x 3M Dual Lock |
| Connections: |
1 x USB 2.0 Header, 1 x SATA |
| Input Connector: |
12V DC / 2.6A |
| Output Channel Voltage: |
5V DC |
| System Requirement: |
Requires a USB 2.0 internal connector |
| RGB Lighting Channels: |
3 |
| Lighting channels support: |
Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels |
| General |
| Warranty: |
2 years |
| Model Number: |
RF-C12TF-W1 (White) / RF-C12TF-B1 (Black) |
| UPC: |
810074843072 (White) / 810074843065 (Black) |
| EAN: |
5056547203010 (White) / 5056547203003 (Black) |
| System Requirement: |
PC with available NZXT RGB lighting connector and Windows 11/10 operating system. |
