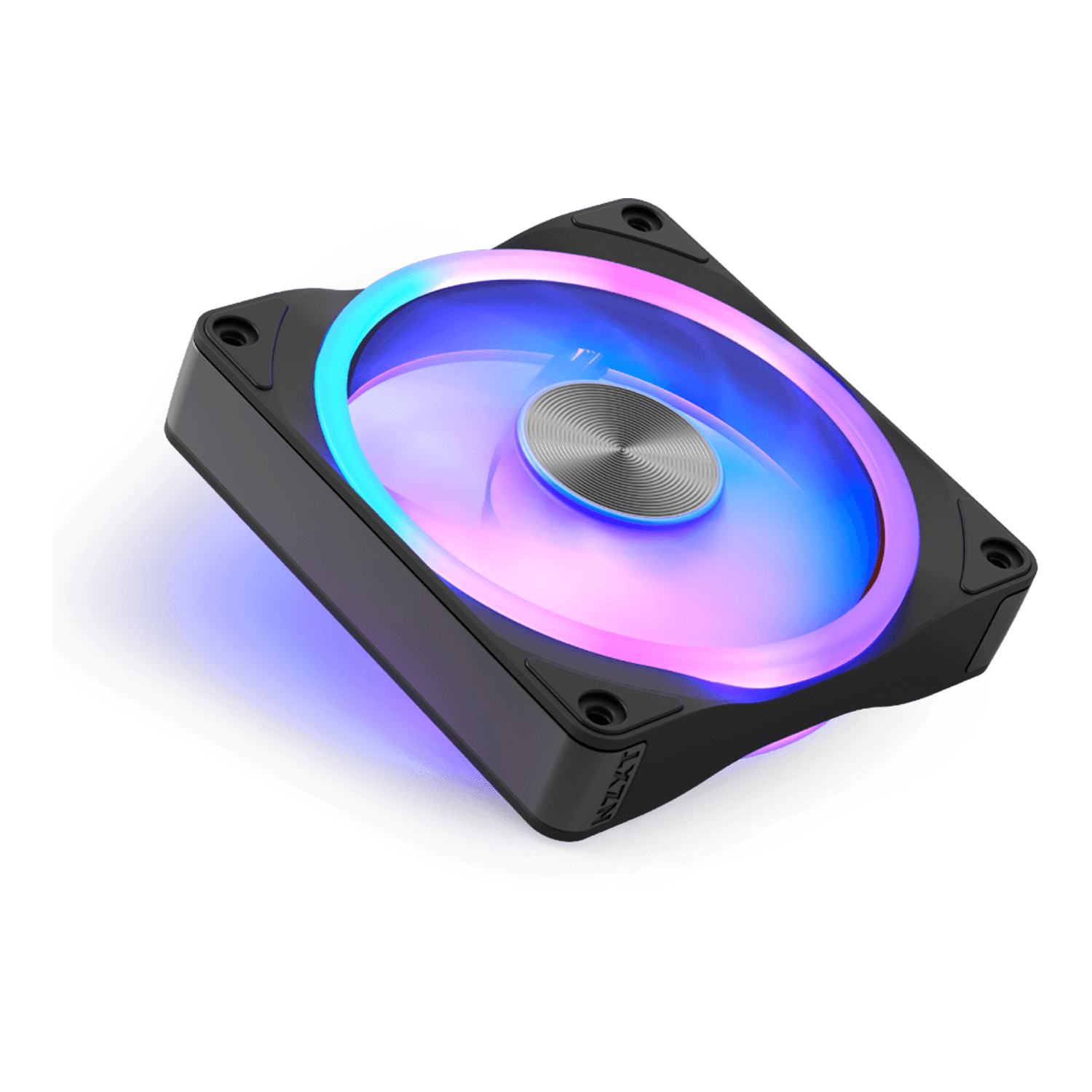

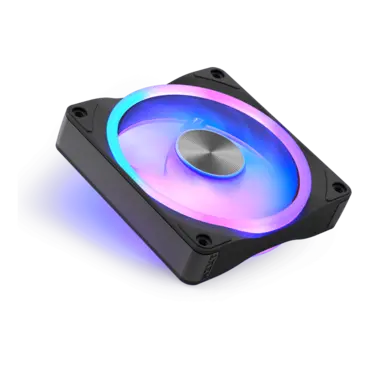

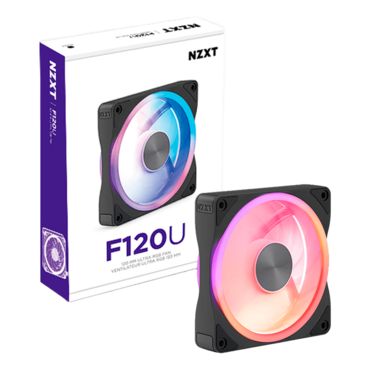

F120U Ultra RGB 120mm, ARGB LEDs, 2250 RPM, 60 CFM, 32.2 dBA, Cooling Fan
- SKU: 20314735
- Manufacturer: NZXT
- MPN: RF-E12US-BA
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Multi-zone addressable RGB — 32 LEDs (F120U/F140U), 96 LEDs (F360U/F420U)
- Whisper-quiet operation under 37 dB at full speed
- Precision-engineered blades and tight frame for high static pressure
- Single-frame F360U and F420U install with four screws and one 8-pin connection
- Anti-vibration corners reduce noise and resonance
- 60,000-hour fluid dynamic bearing
- Full customization via NZXT CAM with NZXT Control Hub or motherboard
- Optional 5V ARGB header for basic motherboard control
| Dimensions | |
| Dimensions (L x W x H) | 120 x 120 x 25 mm |
| Weight | 221 g |
| Performance | |
| Speed | 500 – 2,250 ± 220 RPM |
| Airflow | 60.0 CFM |
| Static Pressure | 2.4 mmH2O |
| Noise Level | 32.2 dBA |
| Speed (27 dBA) | 1,800 RPM |
| Airflow (27 dBA) | 50.0 CFM |
| Static Pressure (27 dBA) | 1.5 mmH2O |
| Rated Voltage | 12 V DC (Fan) / 5 V DC (RGB) |
| Rated Current | 0.25 A (Fan) / 0.5 A (RGB) |
| Input Power | 5.5 W |
| Power Connector | PWM 4-pin, NZXT 4-pin RGB, 5 V ARGB |
| Bearing | Fluid Dynamic Bearing |
| Lifespan | 60,000 hours |
| Construction | |
| Number of Blades | 11 |
| LED Quantity | 32 LEDs |
| Cable Length | 2 x 600 mm |
| Materials | PBT, PC, rubber, PCB |
| Product Info | |
| Warranty | 5 years |
| Model Number | RF-E12US-WA (White) / RF-E12US-BA (Black) |
| UPC | 810074848237 (White) / 810074848220 (Black) |
| EAN | 5056547208091 (White) / 5056547208084 (Black) |
