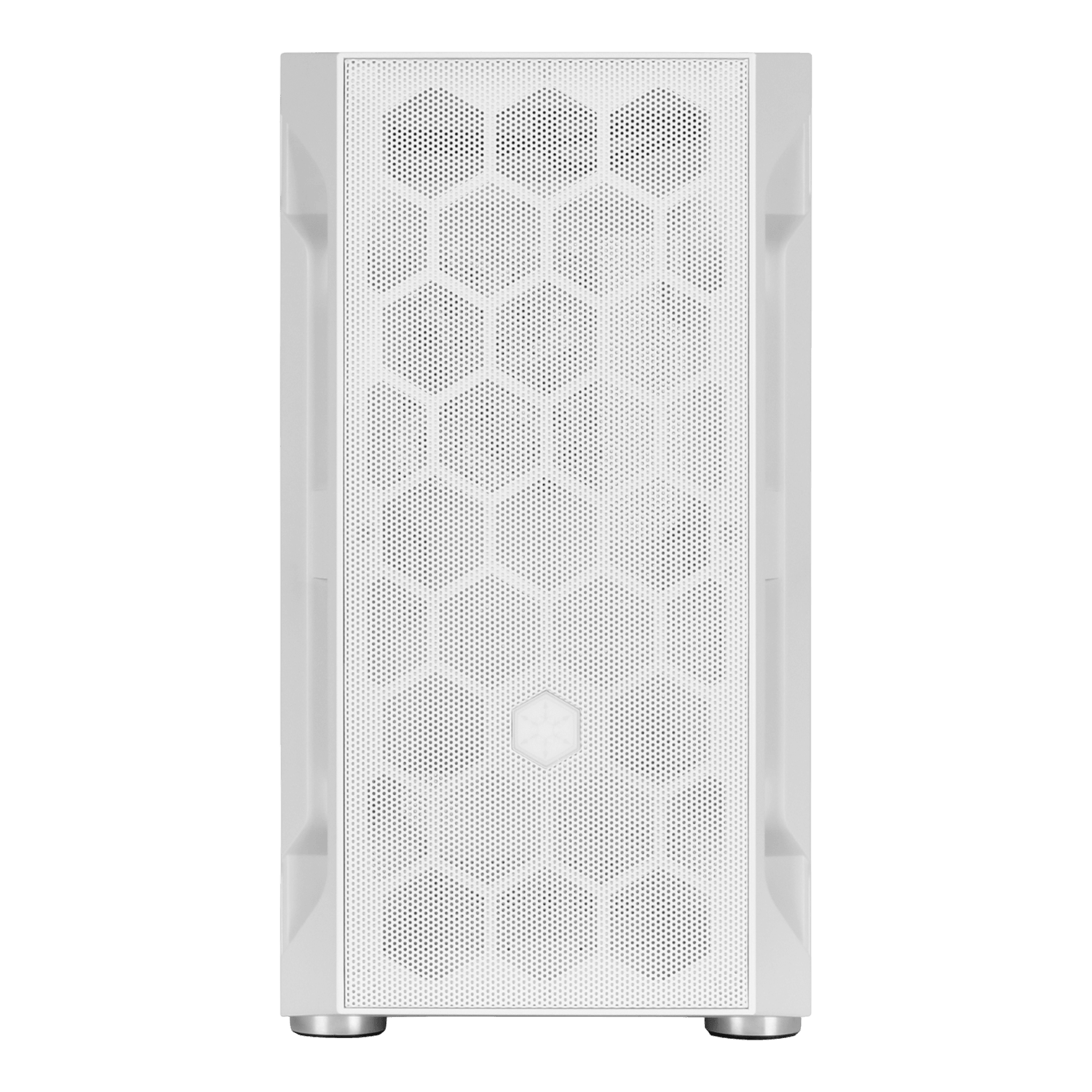

- Steel honeycomb mesh design providing superior intake volume to cool internal components

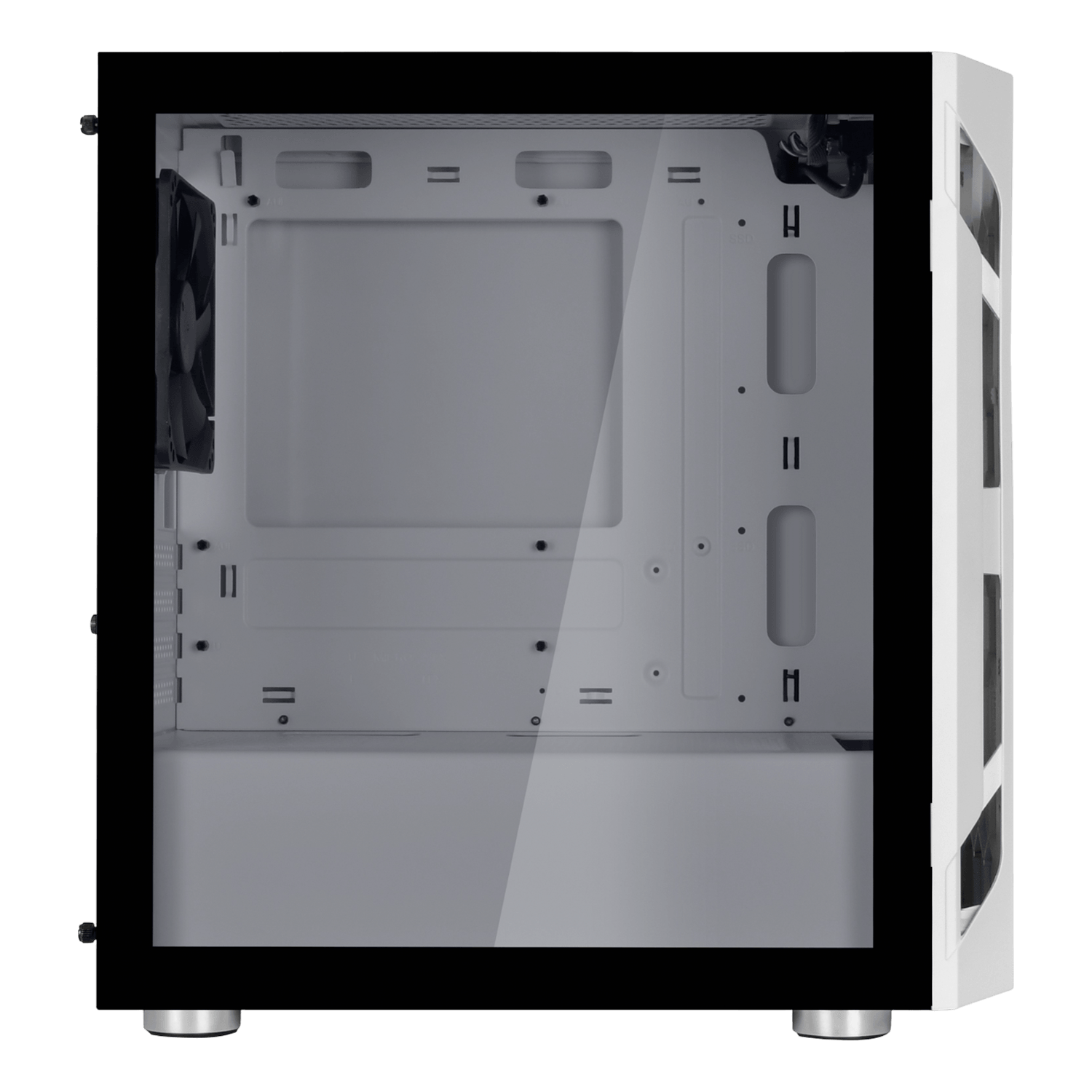

- Precisely designed interior provides sufficient space for high end graphics card and multiple cooling options
- Adjustable drive cage allows flexibility in PSU size and cable management space
- I/O ports includes USB 3.0 x 1, USB 2.0 x 2, Audio x 1 and MIC x 1
- Removable filters on top and bottom make cleaning out dust a breeze
Model No. |
SST-FAH1MW-G (White, tempered glass) SST-FAH1MB (Black, steel panel) SST-FAH1MB-G (Black, tempered glass) |
Material | Steel mesh, plastic front panel, steel body |
Motherboard | Micro-ATX, Mini-DTX, Mini-ITX |
Drive bay | |
Internal |
3.5" x 2 (compatible with 2.5" x 1) 2.5" x 2 |
Cooling system | |
Front | 120mm x 2 / 140mm x 2 |
Rear | 120mm x 1 (120mm fan x 1 included) |
Top | 120mm x 2 |
Internal | 120mm x 2 |
Radiator support | |
Front | 120mm / 240mm |
Rear | 120mm |
Limitation of CPU cooler | 160mm |
Expansion slot | 4 |
Limitation of expansion card |
Length : 320mm without front fan installed Width : 160mm |
Power supply | Standard PS2 (ATX) |
Limitation of PSU |
160mm with 3.5" cage installed 250mm without 3.5" cage installed |
Front I/O port |
USB 3.0 x 1 USB 2.0 x 2 Audio x 1 MIC x 1 |
Dimension |
210mm (W) x 392mm (H) x 366mm (D), 30.13 liters 8.27" (W) x 15.43" (H) x 14.41" (D), 30.13 liters |
Net weight |
4.24 kg (SST-FAH1MB-G, SST-FAH1MW-G) 3.49 kg (SST-FAH1MB) |
