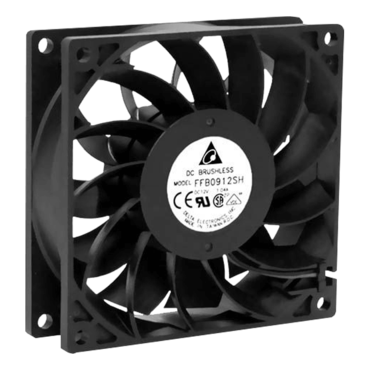

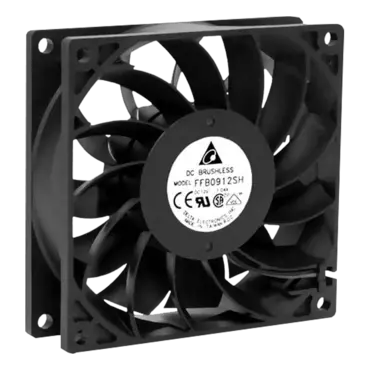

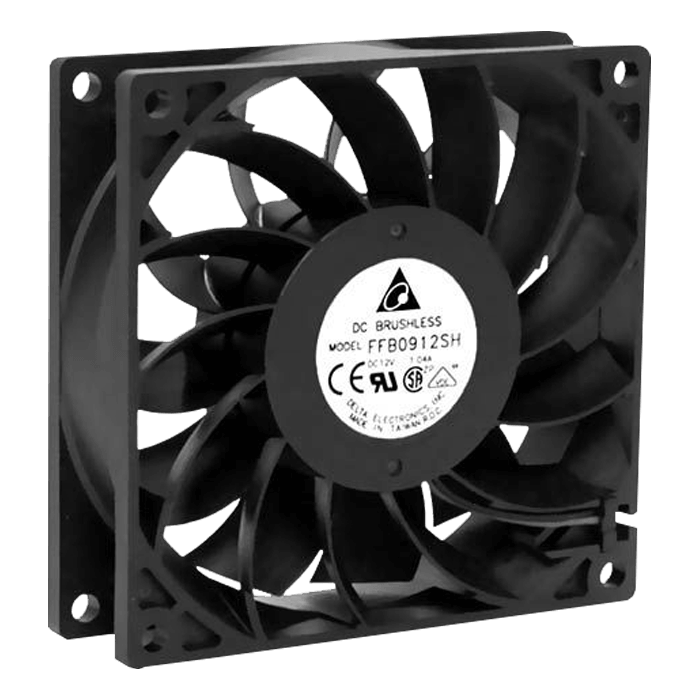

FFB0912SH-F00 92mm, 4100 RPM, 90.05 CFM, 50 dBA, Cooling Fan
Quantity:
- SKU: 7617717
- Manufacturer: Delta Electronics
- MPN: FFB0912SH-F00
- Availability: LOW STOCK
Starting At
$32.18
| Series | FFB |
| Part Status | Active |
| Voltage Rated | 12 VDC |
| Size / Dimension | Square-92mm L X 92mm H |
| Width | 25.40mm |
| Air Flow | 90.05CFM (2.550 m3/min) |
| Static Pressure | 0.396inchH2O (10.06mmH2O) |
| Bearing Type | Ball |
| Fan Type | Axial |
| Features | Speed Sensor (Tach) |
| Noise | 50.0dB(A) |
| Power (Watts) | 8.28W |
| RPM | 4100RPM |
| Termination | 3 Lead Wires |
| Ingress Protection | -- |
| Operating Temperature | -10~+60°C |
| Weight gram (g) | 128g |
| Current Rating | 0.69A |
| Voltage Rating | 07.0- 13.8VDC |
| Material Frame | Plastic |
| Material Blade | -- |
| Lifetime @ Temp | 70000 Hrs@20°C |
