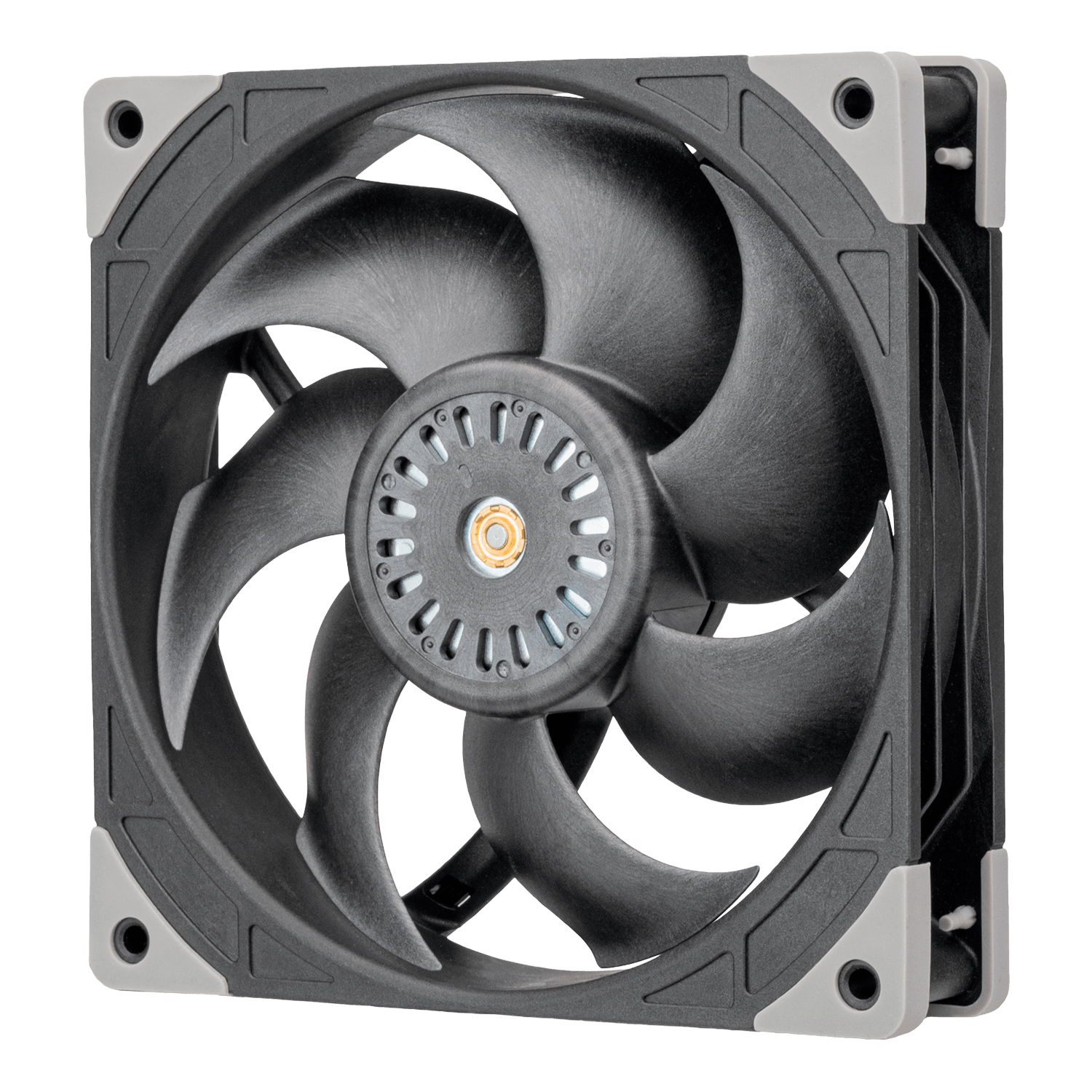

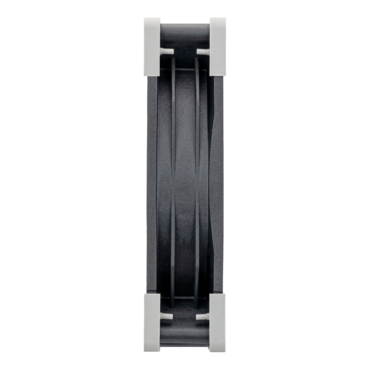

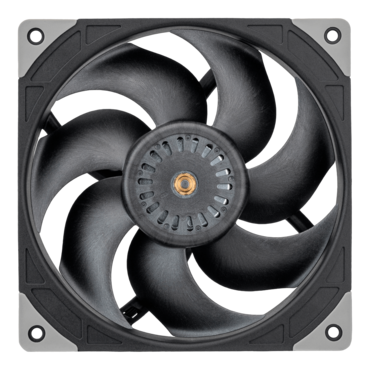

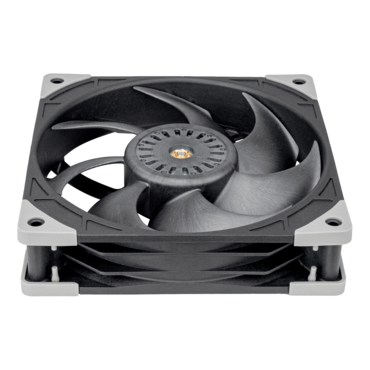

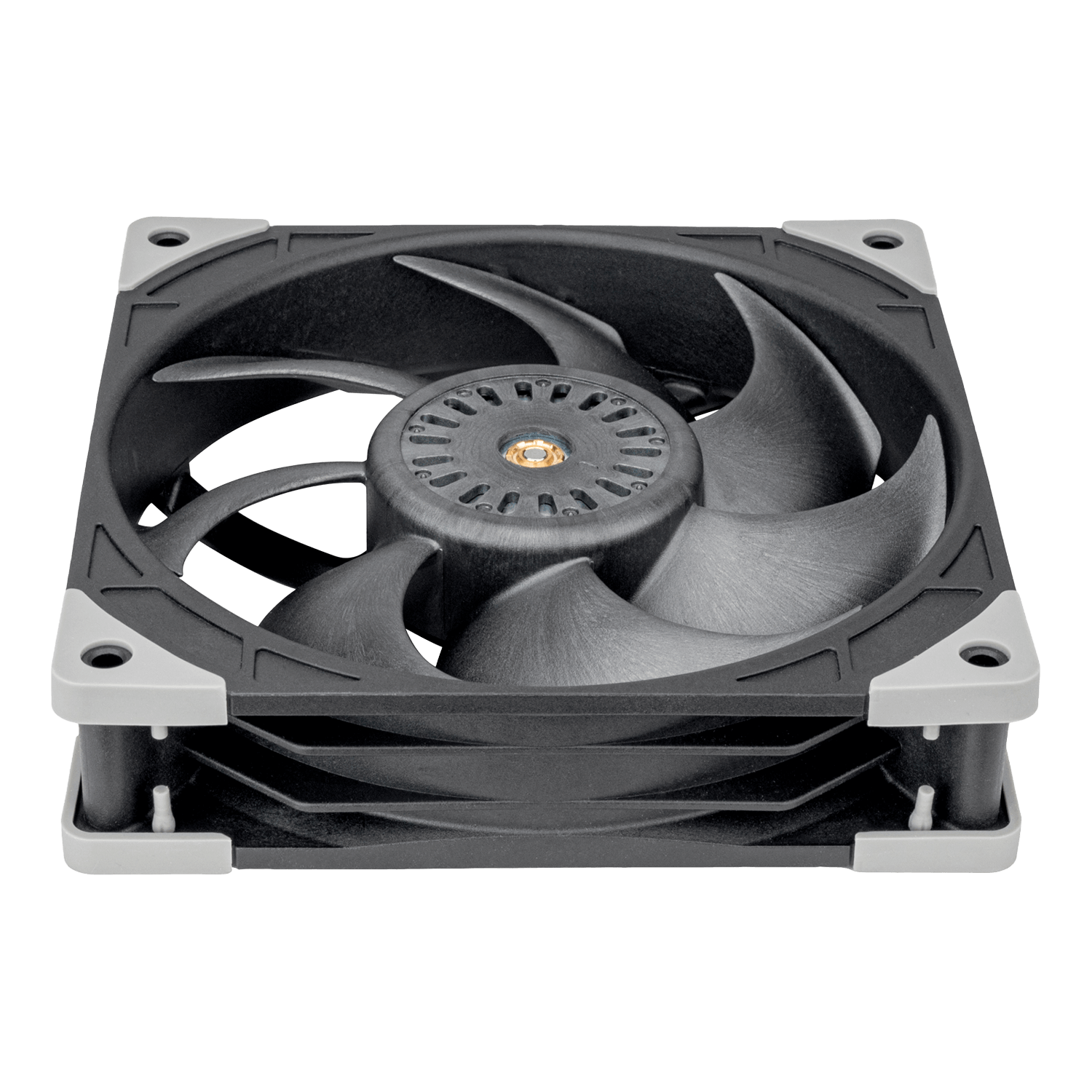

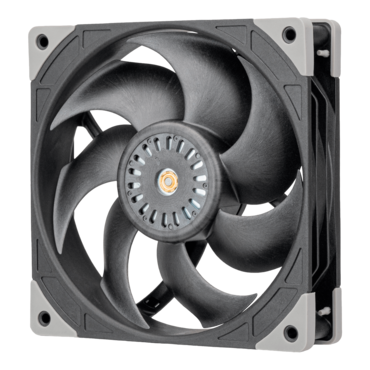

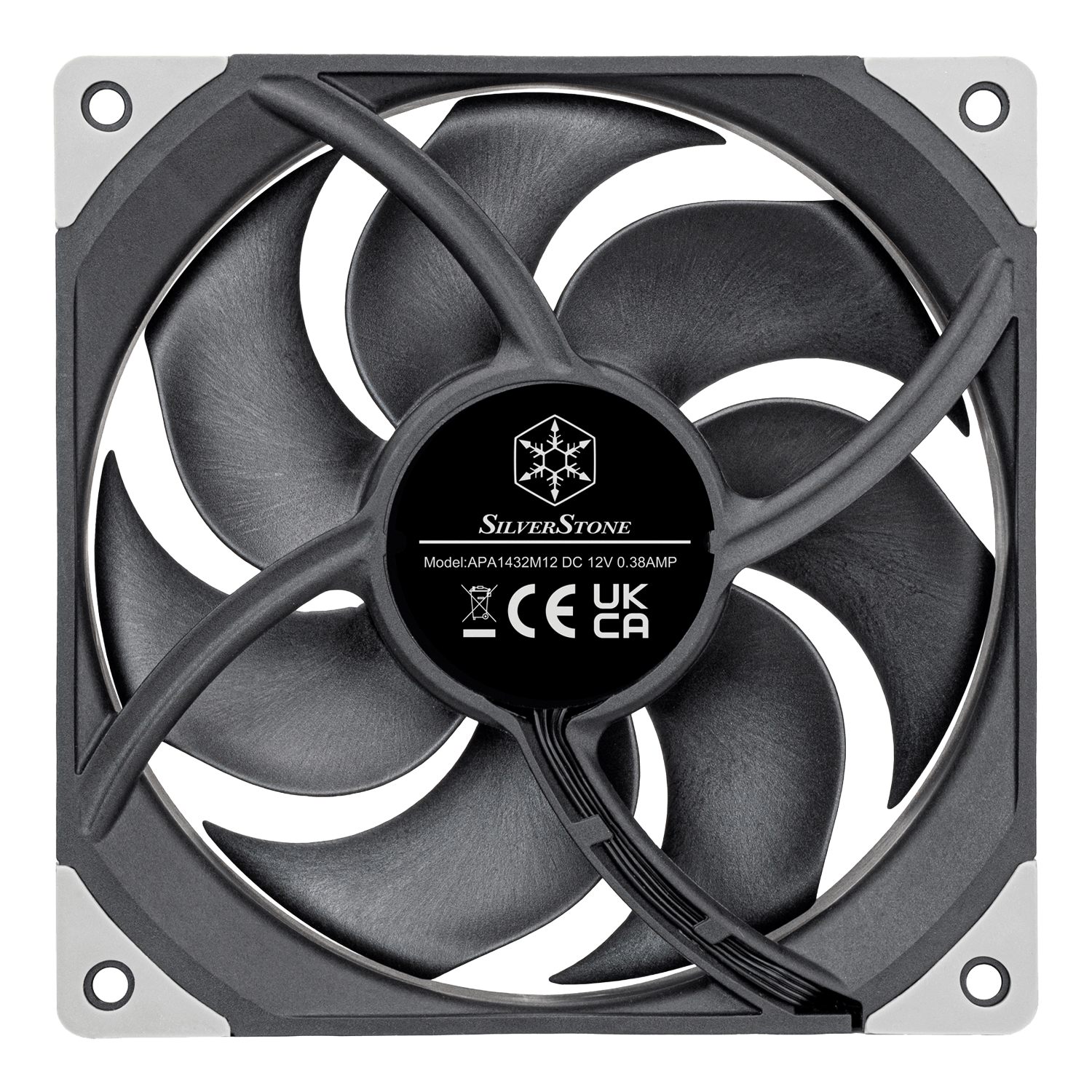

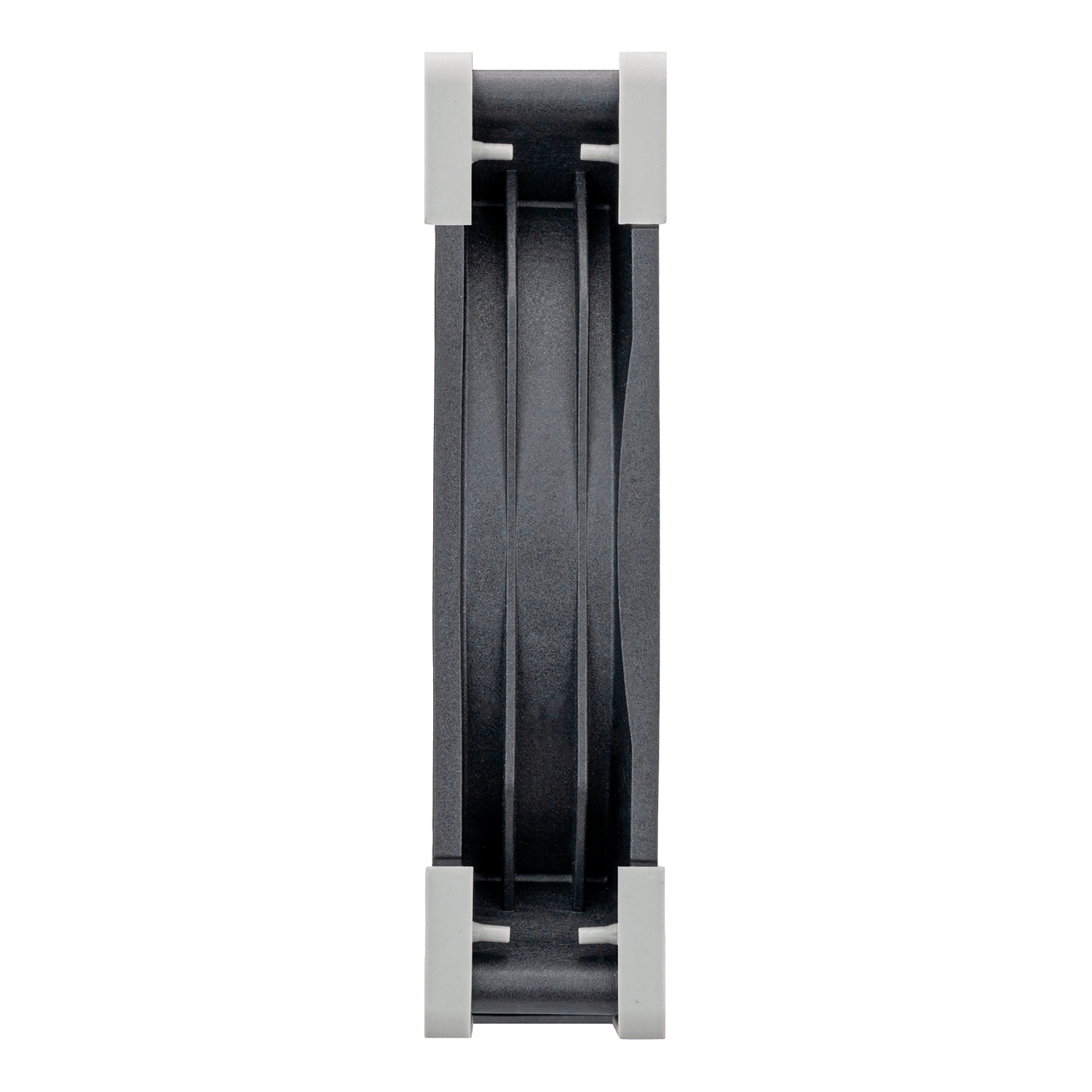

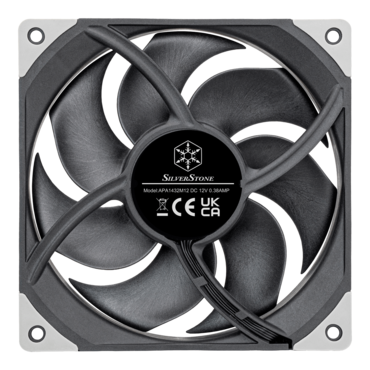

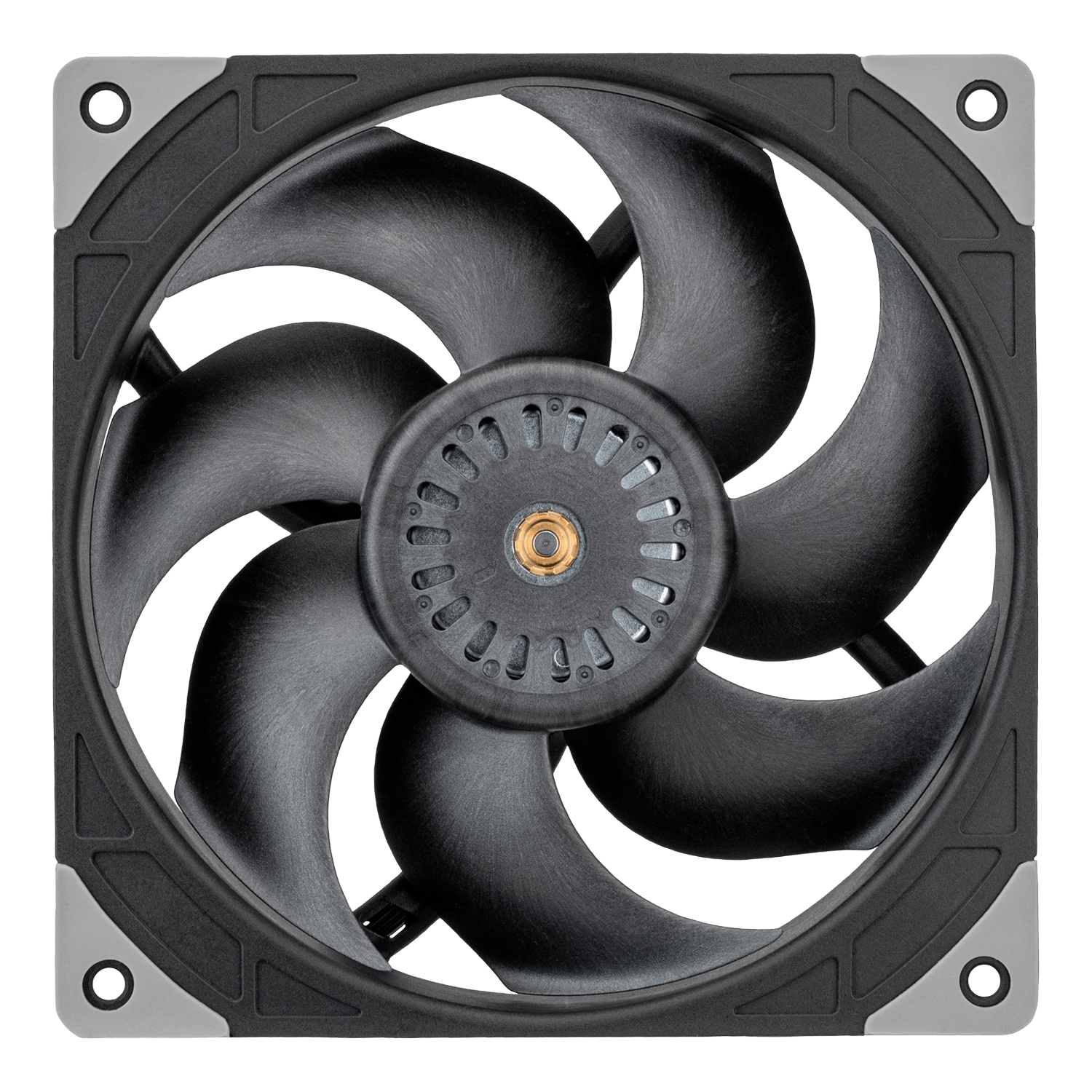

FHL140 140mm, 2500 RPM, 123.8 CFM, 38.8 dBA, Cooling Fan
- SKU: 20150160
- Manufacturer: SILVERSTONE
- MPN: FHL140
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- 140mm radiator cooling fan optimized for industrial use, featuring Liquid Crystal Polymer (LCP) fan blades
- Closed-loop speed control design ensures stable RPM and consistent airflow at high speeds
- Dual ball bearings with metal housing motor and industrial-grade brass pressed shaft core for enhanced durability
- High-efficiency three-phase, six-pole motor design
- Shock-absorbent rubber padding on all sides significantly reduces vibration and noise during operation
- Includes #6-32 threaded radiator screws for secure mounting
| Model No. | SST-FHL140 |
| Material | LCP fan blades, PBT fan frame |
| Color | Black |
| Bearing | Dual ball bearing |
| Connectors | 4 pin PWM |
| Rated Voltage | 12V |
| Starting Voltage | 7V |
| Rated Current | 0.3A |
| Speed | 800 ~ 2,500 RPM |
| Airflow | 123.8 CFM |
| Static Pressure | 7.66 mm/H2O |
| Noise Level | 38.8 dBA |
| Dimension | 140mm (W) x 32mm (H) [2] x 140mm (D) 5.51" (W) × 1.26" (H) × 5.51" (D) |
| Weight | 325g |
| MTBF | 100,000 hrs |
| Remark | Power cable length is 500mm Thickness including rubber pad is 34mm |
