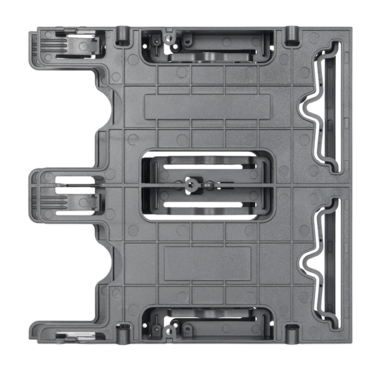

FLEX-FIT Quattro MB344SP 4x 2.5 inch HDD / SSD Bracket for External 5.25 inch Bay (Black)

Quantity:
  • SKU: 10697199
  • Manufacturer: ICY DOCK
  • MPN: MB344SP
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$16.30
Quantity:
FLEX-FIT Quattro MB344SP 4x 2.5 inch HDD / SSD Bracket for External 5.25 inch Bay (Black)

ICY DOCK FLEX-FIT Quattro MB344SP. With the 2.5” solid state drive prices dropping and their capacity increasing, there are more and more computer users starting to upgrade their hard disk drive to SSD. If you are computer literate, you may have more than one 2.5” SSD installed in your system. Since every computer has limited hard drive slots, what will happen if you are running out of storage space but at the same time your system is out of physical drive slots for adding more drives? The ICY DOCK Flex-Fit Quattro MB344SP HDD / SSD bracket is your answer. The Flex-Fit Quattro takes up to 4 x 2.5” HDD / SSD and only uses 1 x external 5.25” bay. The space saving design allows you to optimize your storage density and free up your valuable hard drive slots. With a tool-less drive installation design, the Flex-Fit Quattro lets you to easily insert or remove the HDD / SSD without dismounting the entire bracket from the system. This is extremely useful when adding additional HDDs / SSDs to your system, simply open the side panel of the PC case; insert the new HDD / SSD into the bracket and then plug in the cables and you are ready to go!

  • Fits 4 x 2.5” SATA HDD / SSD into a single extermal 5.25” bay
  • Compatible with 2.5” HDD / SSD with 7mm to 9.5mm drive height
  • Tool-less drive installation design with advanced drive stabilizer system
  • Compatible with any standard external 5.25” bay
  • Open frame design for maximum passive cooling
  • Option to be used as a stackable drive organizing rack
Product Name Quad 2.5" HDD/SSD Bracket with Tool-less Drive Installation for 5.25" bay
Model Number MB344SP
Color Black
Support Drive Size 4 x 2.5” IDE/SATA/SAS HDD & SSD (7-9.5mm)
Compatible Drive Type IDE/SATA/SAS
Number of Drives 4
Max Drive Height 9.5mm
Drive Bay 1 x external half height 5.25" bay
Structure / Material Plastic
Product Dimension (L x W x H) 155.5 x 146 x 40.2mm
Product Net Weight 101g
Package Gross) Weight 165.7g
Package contents 1-Device, 1-User Manual , 7-Screws
SATA Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -35°C to 70°C (-31°F to 158°F)
Compliance CE, RoHS, REACH
Warranty 3 years
