FLEX-FIT Quinto MB344SPO 4x 2.5 inch HDD / SSD & Slim / Ultra-Slim ODD Mounting Bracket for 5.25 inch Bay (Black)

Quantity:
  • SKU: 12385282
  • Manufacturer: ICY DOCK
  • MPN: MB344SPO
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$22.98
Quantity:

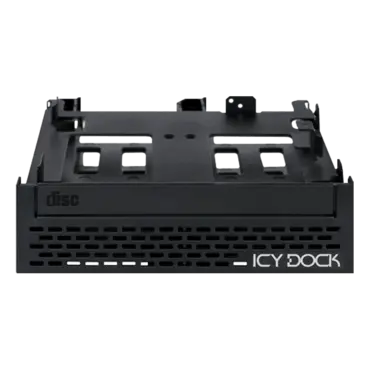

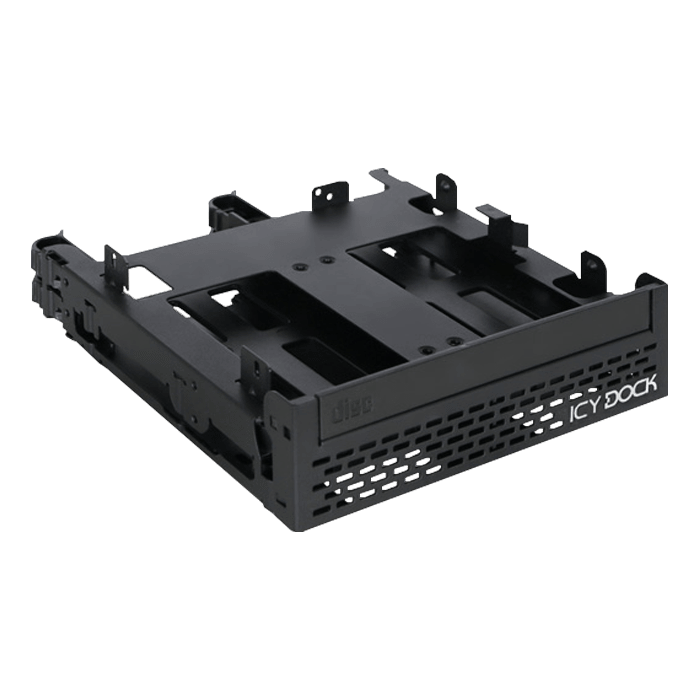

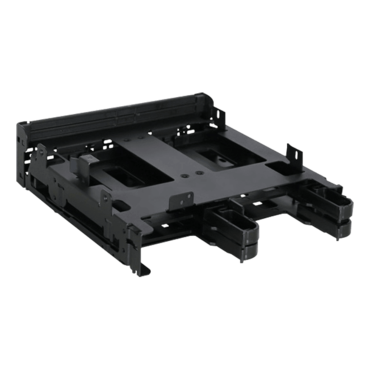

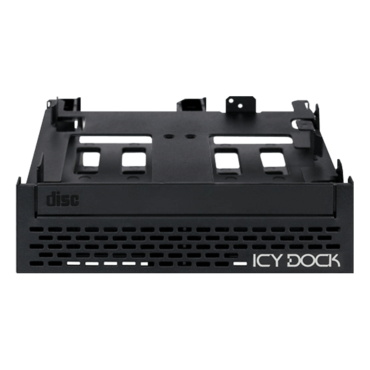

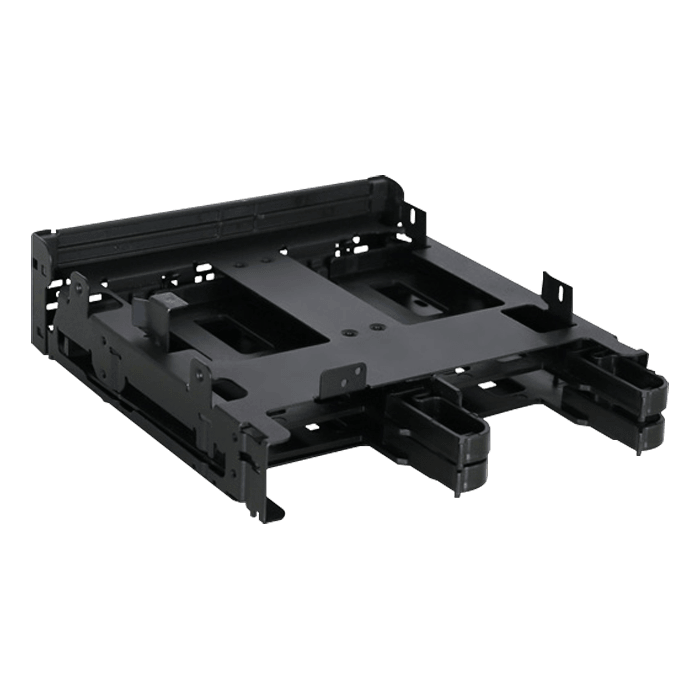

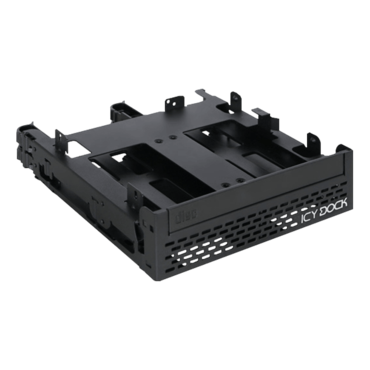

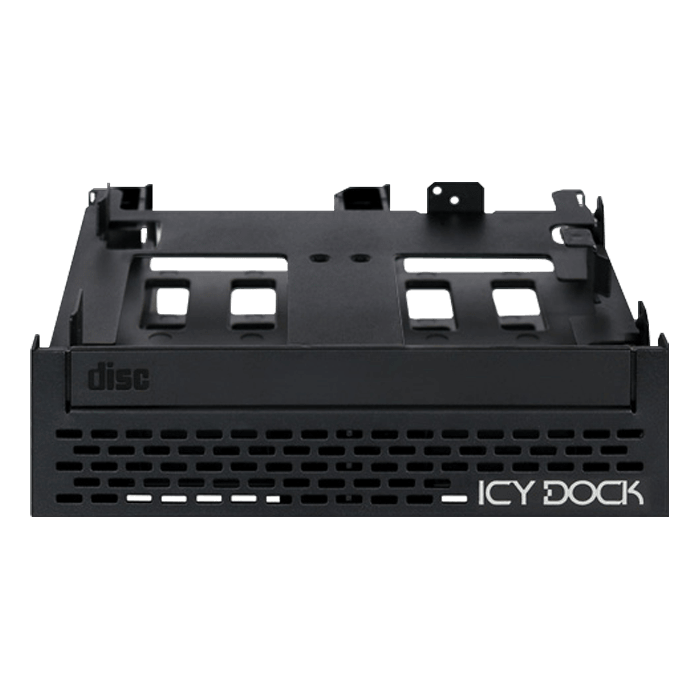

FLEX-FIT Quinto MB344SPO 4x 2.5 inch HDD / SSD & Slim / Ultra-Slim ODD Mounting Bracket for 5.25 inch Bay (Black)

ICY DOCK FLEX-FIT Quinto MB344SPO. For computer cases that has limited 5.25” drive bay available, ICY DOCK FLEX-FIT Quinto MB344SPO creates flexibility for users who wish to install ODD and multiple 2.5” drives within an optical disk drive bay of their computer case. The FLEX-FIT MB344SPO mounting bracket supports up to 4x 2.5” HDDs or SSDs and a slim or ultra slim optical drive in a single external 5.25” ODD drive bay (DVD bay). For drive installation, the FLEX-FIT MB344SPO 2.5” drive caddies are equipped with unique built-in screws, which offer tool-less drive installation, and provide the ability for swapping the drives without removing the entire MB344SPO bracket. Also, the open frame full-metal chassis with sturdy ABS plastic caddies keeps your drives safe and cool. With an additional bonus, it comes with a well finished metal front faceplate that blends in to most system for a clean look. For ODD accommodation, the slim optical disk drive (ODD) bay can fit either a slim (12.7mm) or ultra-slim (9.5mm) optical drive, or any device in Slim / Ultra-Slim ODD form-factor. It is a simple device but can be create a lot of convenience for those who are in need!

Product Name FFLEX-FIT Quinto MB344SPO
Tool-less 4x 2.5" SSD / HDD & Slim / Ultra-Slim ODD Bracket for 5.25” Bay
Model Number MB344SPO
Color Black
Support Drive Size 4 x 2.5" IDE/SATA/SAS HDD & SSD (7-9.5mm)
1 x Slim ODD(12.7mm) / 1 x Ultra Slim ODD (9.5mm)
Compatible Drive Type IDE/SATA/SAS
Number of Drives 4
Max ODD Height 12.7mm
Max Drive Height 9.5mm
Drive Bay 1 x external half height 5.25" drive bay
Structure / Material Metal Chassis
Product Dimension (L x W x H) 145.8 x 41.3 x 167.7mm
Product Net Weight 364g
Package Gross Weight 455.7g
Package contents 1-Device, 1-User Manual, 20-Screws, 1- 6 Pin Slimline SATA to 15pin SATA power cable
SATA Connector Insertion Rate 10,000
Humidity 5%~65% RH
Opertating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -35°C to 70°C (-31°F to 158°F)
Compliance CE, RoHS, REACH
Warranty 3 years
