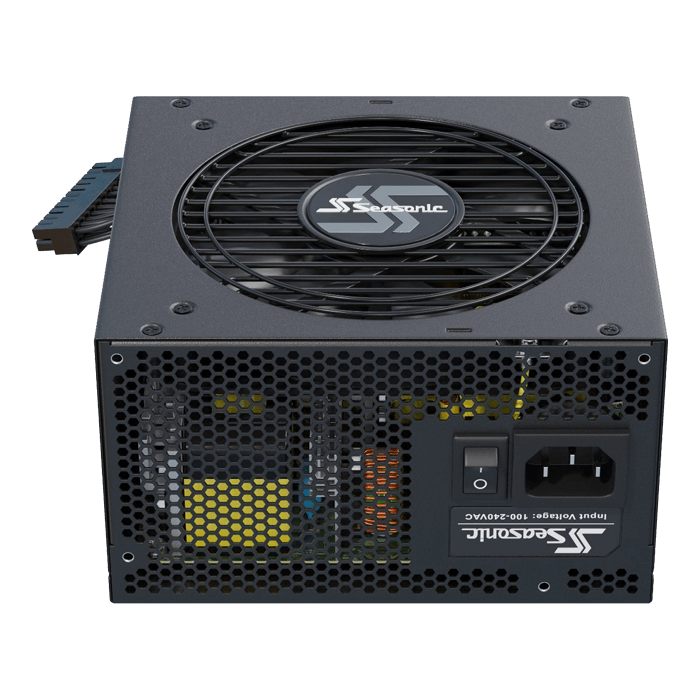

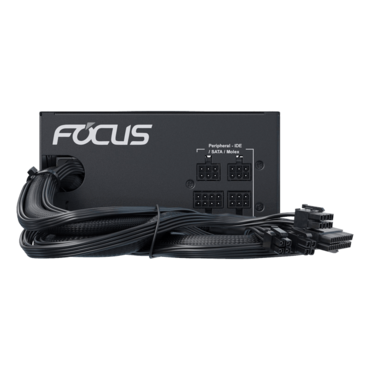

FOCUS GM-550, 80 PLUS Gold 550W, Semi Modular, ATX Power Supply
- SKU: 13382330
- Manufacturer: SEASONIC
- MPN: FOCUS-GM-550
- Availability: TEMPORARILY OUT OF STOCK
Price
$92.00
FOCUS GM-550, 80 PLUS Gold 550W, Semi Modular, ATX Power Supply
Seasonic FOCUS GM-550. Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency. The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.
- ATX 12 V
- Semi-modular
- 80 PLUS Gold Certified
- 7 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
| Technical Specifications | ||
| 80PLUS® | Gold | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Semi-modular |
| Cable type | Webbed cables (attached)
Flat black cables(modular) |
|
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 8 - 4 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 45 A | 0.3 A | 3 A | |
| 100 W | 540 W | 3.6 W | 15 W | |||
| Total continuous power | 550 W | |||||
FOCUS-GM-550
| Connector | Connector count | Cable count |
| Main Power (24/20 pins) | 1 | 1 |
| CPU (8/4 pins) | 1 | 1 |
| PCIe (8/6 pins) | 2 | 2 |
| 0 | ||
| SATA | 6 | 1 |
| 0 | ||
| 0 | ||
| 1 | ||
| 0 | ||
| 0 | ||
| Peripheral | 3 | 1 |
| 0 | ||
| Floppy | 1 | 0 |
