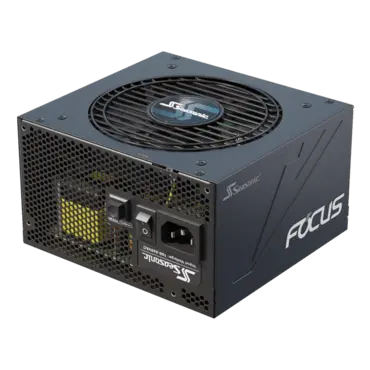

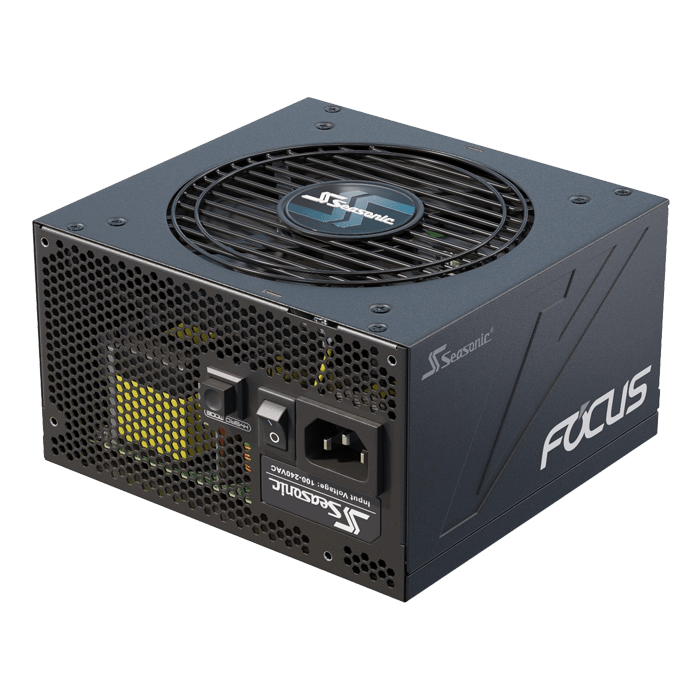

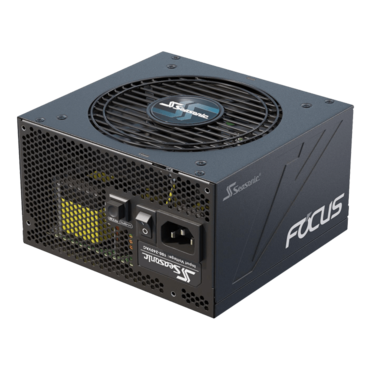

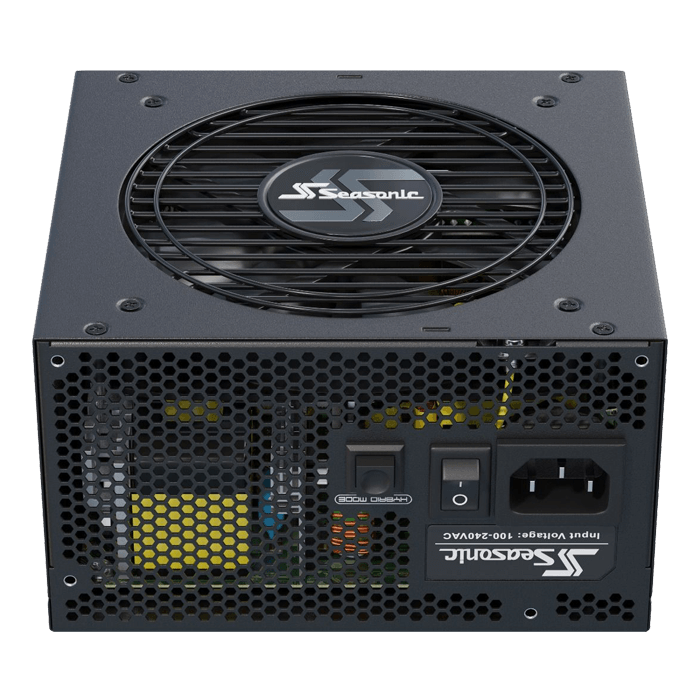

FOCUS PX-750, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply

SKU: 12972214

Manufacturer: SEASONIC

MPN: FOCUS PX-750

Availability: Out of Stock


Price: $147.19
or as low as $5/month

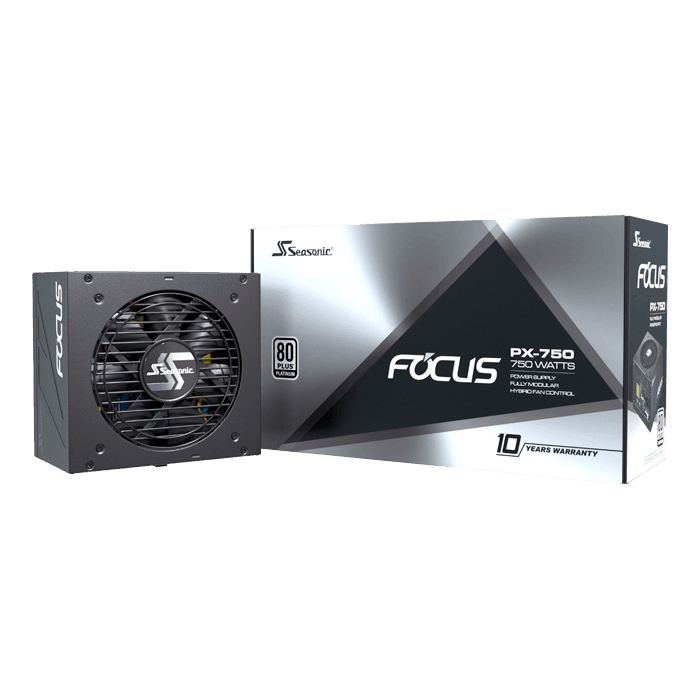

Seasonic (FOCUS PX-750). The newly upgraded FOCUS PX and GX series are the successor to the FOCUS PLUS Series, which became an instant the top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements on the popular series, removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

  • 80 PLUS® Platinum certified
  • Compact Size - 140 mm deep
  • Tight Voltage Regulation

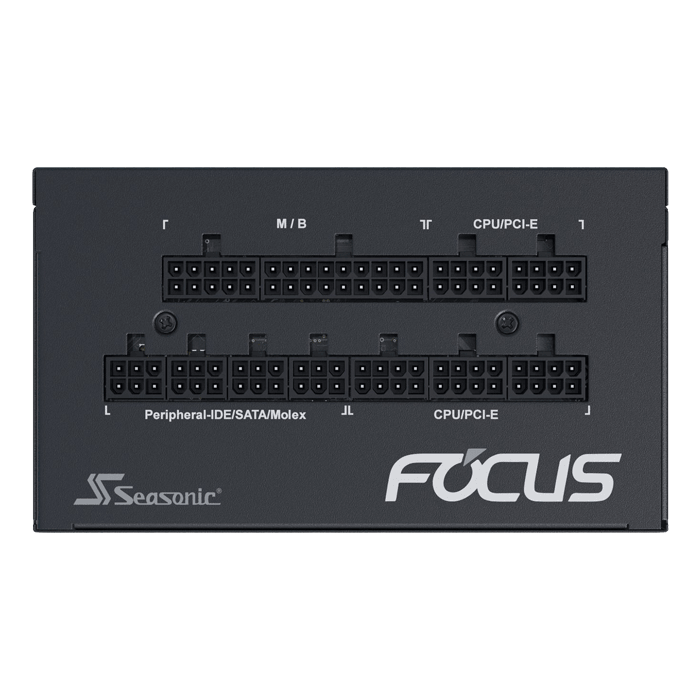

  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load
  • Multi-GPU setup
  • Gold plated connectors
  • 10 years warranty
Technical Specifications
80PLUS® Platinum
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power 750 W

CABLES

Cable type Connector(s) per cable Total lengtd (mm) Number(s) of cable(s) included
MB (24/20 pins) 1 610 1
CPU (8/4 pins) 1 650 2
PCIe (8/6 pins) 2 750 2
PCIe (8/6 pins) 1 750 0
SATA 4 810 1
SATA 4 860 1
SATA 4 760  0
SATA 2 700 0
SATA 2 570 0
SATA 2 470 0
SATA 2 450 1
Molex 3 690 1
Molex 2 470 0
Molex to SATA 3.3 Adapter 2 300 1
Molex to FDD Adapter 1 101  0
