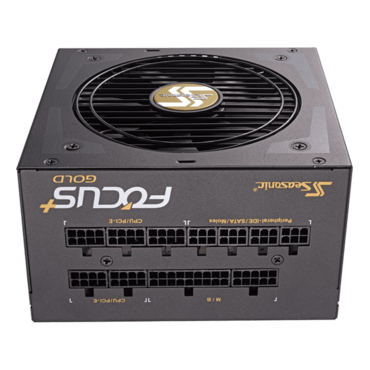

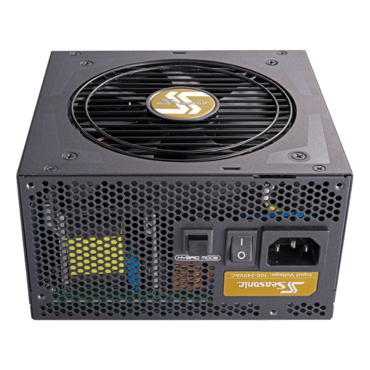

FOCUS Plus 750 Gold, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 11490384
- Manufacturer: SEASONIC
- MPN: SSR-750FX
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$172.48
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 150 mm (W) x 140 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Hybrid Silent fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 70,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cULus, TUV, CB, CCC, BSMI, EAC, RCM |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 10 - 5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||
| Connector | Connector count |
|---|---|
| Main Power (24/20 pins) | 1 |
| CPU (8/4 pins) | 2 |
| PCIe (8/6 pins) | 4 |
| SATA | 8 |
| Peripheral | 3 |
| Floppy | 1 |
