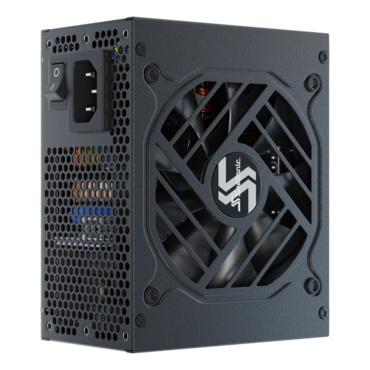

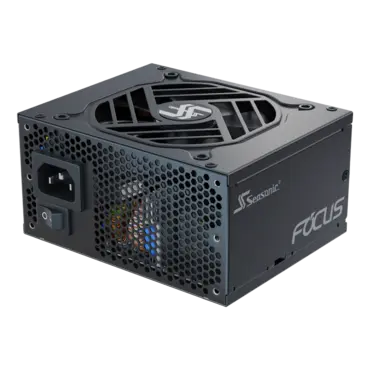

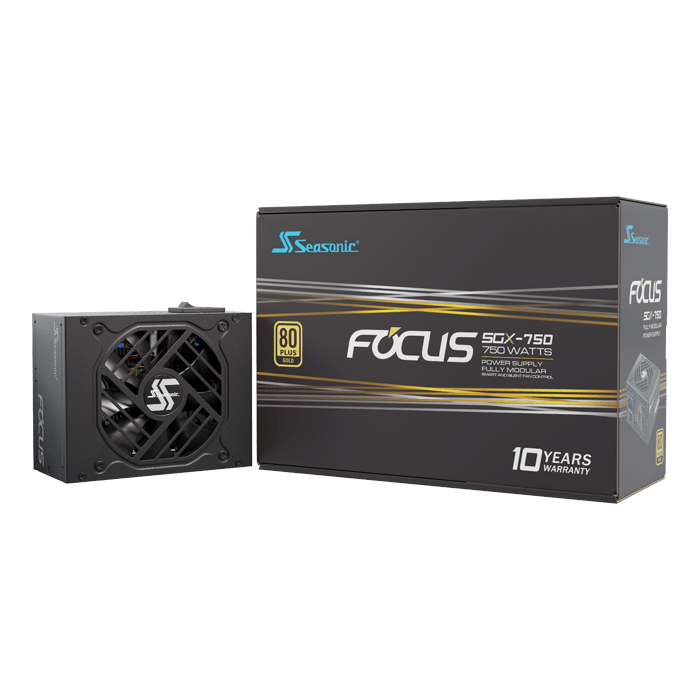

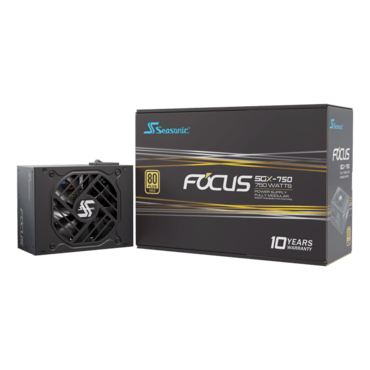

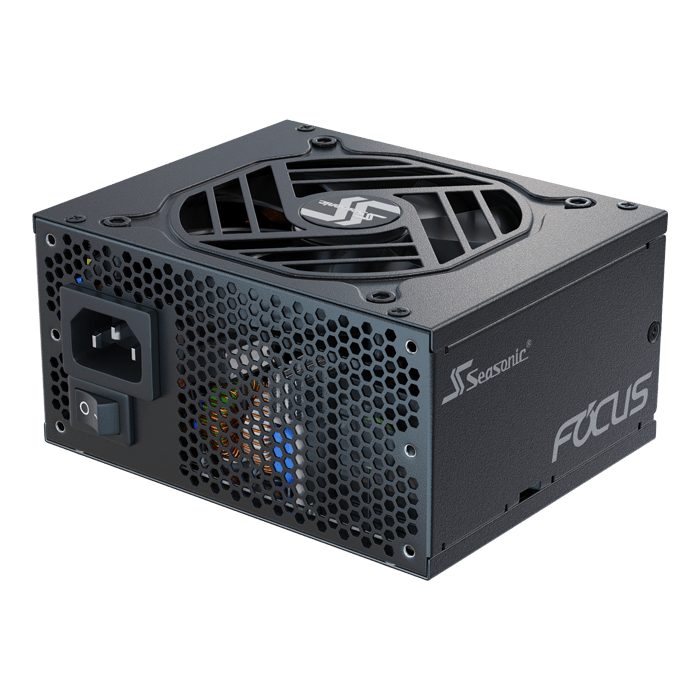

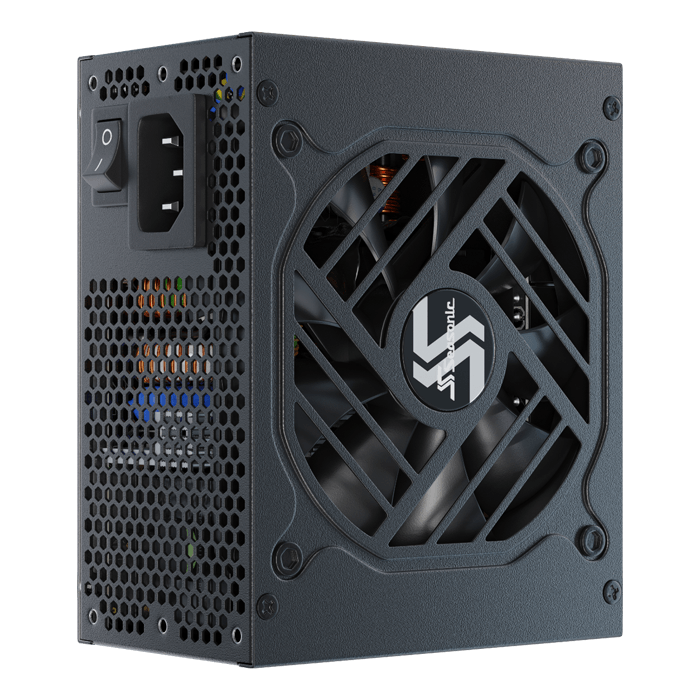

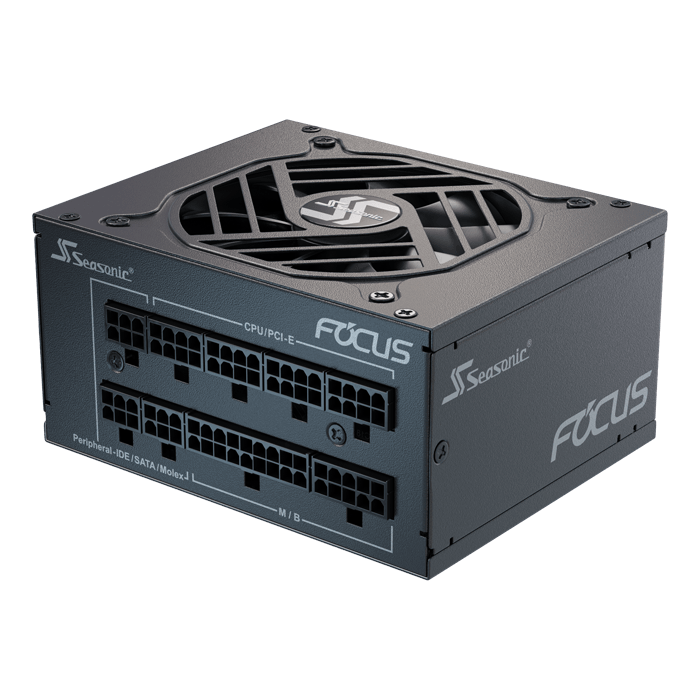

FOCUS SGX-750 (2021), 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 14737197
- Manufacturer: SEASONIC
- MPN: FOCUS-SGX-750-2021
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$131.42
FOCUS SGX-750 (2021), 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
- High Efficiency, 80 PLUS® Gold Certified
- Fully Modular Cabling Design
- Compact Size
- SFX to ATX Expandability

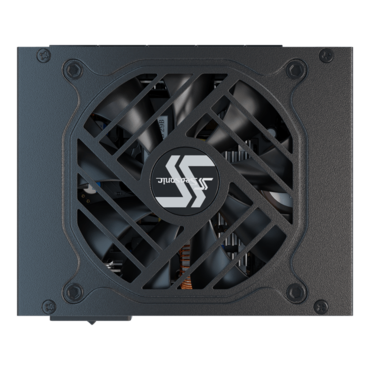

- 92 mm Fluid Dynamic Bearing (FDB) Fan
- Seasonic Hybrid Silent Fan Control
- Highly Reliable Japanese 105 °C Aluminum Electrolytic Capacitors
- Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3%]
- Cable-free Connection Design
- 10 Years Warranty
| Technical Specifications | ||||||
| 80PLUS® | Gold | |||||
| Cybenetics Efficiency Level | TBA | |||||
| Cybenetics Noise Level | TBA | |||||
| Form Factor | Intel SFX 12 V / ATX 12 V | |||||
| Dimensions | 100 mm (L) x 125 mm (W) x 63.5 mm (H) | |||||
| Fan Information | Fan Size | 92 mm | ||||
| Fan Control | Premium Hybrid Fan Control | |||||
| Fan Bearing | Fluid Dynamic Bearing | |||||
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |||||

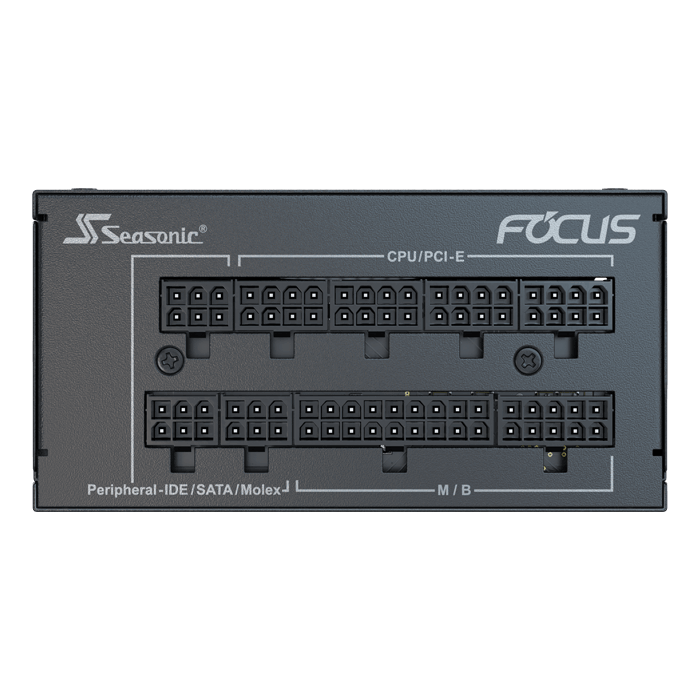

| Cable Information | Modularity | Fully Modular | ||||
| Cable type | Flat black cables | |||||
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | ||||
| MTBF @ 25 °C, excl. fan | 100,000 hours | |||||
| AC Input | Full Range | |||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |||||
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | ||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |||||
| Warranty | 10 Years | |||||
| Power Output | ||||||
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 9 - 4.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||
