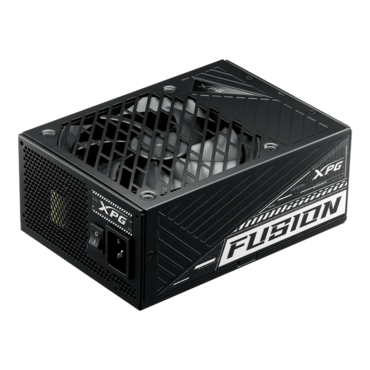

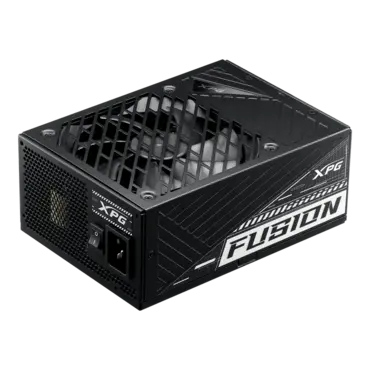

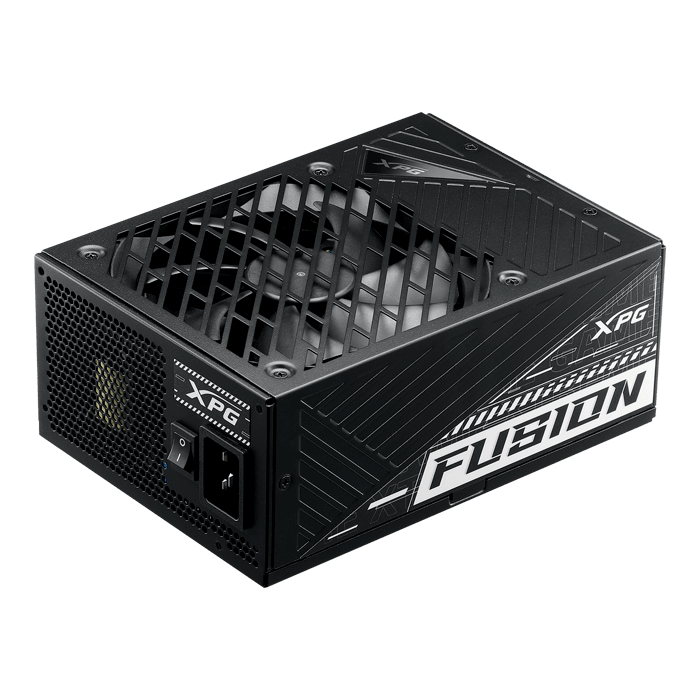

FUSION 1600, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16670791
- Manufacturer: XPG
- MPN: 75261083
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$699.00
| Dimensions (L x W x H) | 210 x 150 x 86mm |
| Cybenetics Rating | TITANIUM |
| 80 Plus Rating | TITANIUM |
| ATX Version | ATX 3.0 |
| Protections | OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| Certification | CE | CB | FCC (IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | CQC | EAC |
| PFC | > 0.99 |
| Input Voltage |
(1) 100-240V (2) 115-240V |
| Input Current |
(1) 15A | 8A (2) 15A | 8A |
| Input Frequency |
(1) 47-63Hz (2) 47-63Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output |
(1) 1300W (2) 1600W |
| Power Excursion | 3760W (*up to 235% of the PSU's rated power for 100μs) |
| Operating Temperature | 50°C |
| Fan Size | 135 x 135 x 25mm |
| Fan Bearing | Double Ball Bearing |
| Fan Speed | 2700 ± 10% RPM |
| MTBF | 125,000 hours @ 25°C |

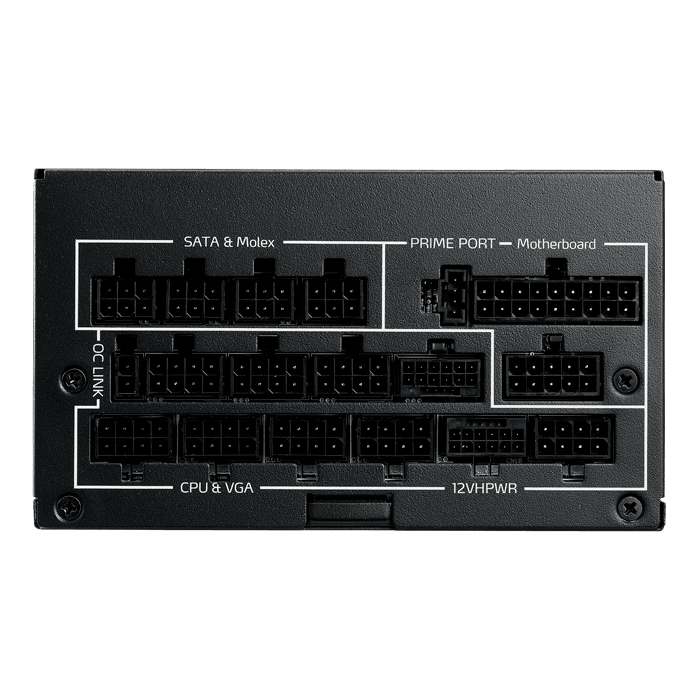

| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| PCI-E 6+2 Pin Connector | 10 |
| Molex 4 Pin Connector | 4 |
| 12VHPWR (12 + 4) Connector (600W) | 2 |
| SATA Connector | 12 |
| Floppy 4 Pin Connector | 1 |
| Weight | Product + cables:2.5kg + 1.84kg (5.51lb+4.06lb) ±5% |
| Warranty | 12 Years |
