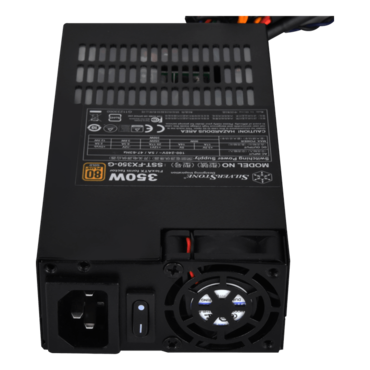

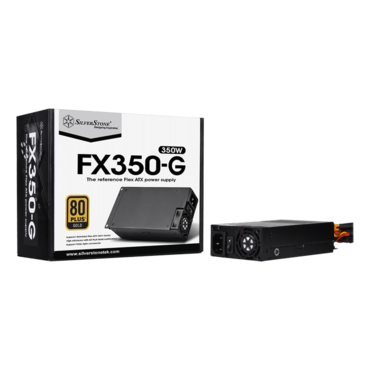

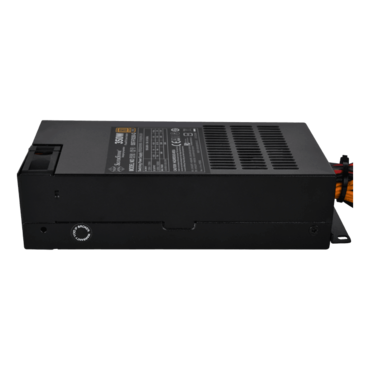

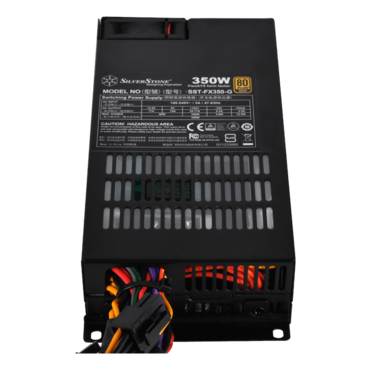

FX350-G, 80 PLUS Gold 350W, Non Modular, Flex ATX Power Supply
Quantity:
- SKU: 14903228
- Manufacturer: SILVERSTONE
- MPN: SST-FX350-G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$101.20
- Support standard Flex ATX form factor
- High efficiency with 80 PLUS Gold certification
- 350W continuous power output at 40°C operating temperature rated for 24/7 operation
- Class-leading single +12V rail
- Support PCIe 6pin connector
- Active PFC
| Model No. | SST-FX350-G |
| Max. DC Output | 350W |
| Power density | 707W per liter |
| Color | Black(Lead-Free Paint) |
| Combined +3.3V & +5V | 90W |
| Combined +12V | 350W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 87% ~ 90% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection |
Over power protection Over voltage protection Short circuit protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector(350mm) 1 x 2-Pin connector (300mm)* 1 x 8 / 4-Pin EPS / ATX 12V connector(450mm) 1 x 6-Pin PCIe connector(350mm) 3 x SATA connector(350mm / 150mm / 150mm) 2 x 4-Pin Peripheral connector(350mm / 150mm) 1 x 4-Pin Floppy adapter connector(350mm / 150mm / 150mm) |
| Cooling System | Single 40mm silent fan |
| Form factor | Flex ATX |
| Noise Level | 20 dBA minimum |
| Dimension |
81.5 mm (W) x 40.5mm (H) x 150 mm (D) 3.21" (W) x 1.59" (H) x 5.91" (D) |
| Weight | 0.96 kg |
| Certification | 80 PLUS Gold |
| Other |
GPU Support list Compatible with ATX12V v2.4 |
| Load Range | |
| Output | +3.3V | +5V | +12V1 | +12V2 | +5VSB | -12V |
| Max.(Amps) | 17A | 14A | 29.17A | / | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | / | ±10% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | / | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | / | 50mV | 120mV |
