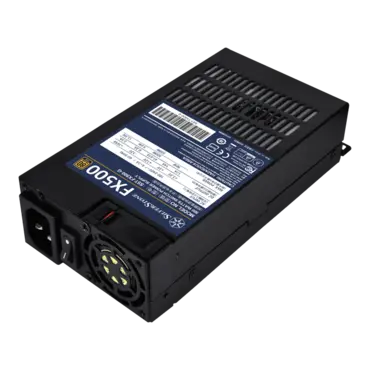

FX500, 80 PLUS Gold 500W, No Modular, Flex ATX Power Supply
Quantity:
- SKU: 13621493
- Manufacturer: SILVERSTONE
- MPN: FX500-G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$147.19
- Support standard Flex ATX form factor
- High efficiency with 80 PLUS Gold certification
- Japanese primary capacitor
- 500W continuous power output at 40? operating temperature rated for 24/7 operation
- Class-leading single +12V rail
- PCIe 8pin and PCIe 6pin connectors support
- ±3% regulation and low ripple & noise performance for high stability
- Active PFC
| Model No. | SST-FX500-G | ||||
| Max. DC Output | 500W | ||||
| Power density | 1010W per liter | ||||
| Load Range | |||||
| +3.3V | +5V | +12V | +5VBS | -12V | |
| Max.(Amps) | 14A | 17A | 41.67A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| Color | Black (Lead-Free Paint) | ||||
| Combined +3.3V & +5V | 90W | ||||
| Combined +12V | 500W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.9 at full load) | ||||
| Efficiency | 87%~90%(20% to 100% loading) | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 40°C | ||||
| Protection |
Over Power Protection Over Voltage Protection Short Circuit Protection Over-Temperature Protection |
||||
| Connectors |
1 x 24 / 20-Pin motherboard connector(350mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(450mm) 2 x 8 / 6-Pin PCIe connector(350mm / 150mm) 4 x SATA connector(350mm / 150mm / 150mm / 150mm) 3 x 4-Pin Peripheral connector(350mm / 150mm / 150mm) 1 x 4-Pin Floppy adapter connector(150mm) |
||||
| Cooling System | Single 40mm silent fan | ||||
| Form factor | Flex ATX | ||||
| Noise Level | 20dBA minimum | ||||
| Dimension |
81.5 mm (W) x 40.5 mm (H) x 150 mm (D) 3.21" (W) x 1.59" (H) x 5.91" (D) |
||||
| Weight | 0.96 kg | ||||
| Certification | 80 PLUS Gold | ||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
||||
