FirePro S9100, 12GB GDDR5, Passive Cooling, GPU Computing Accelerator

  • SKU: 10266795
  • Manufacturer: SAPPHIRE
  • MPN: 100-505885
Starting At

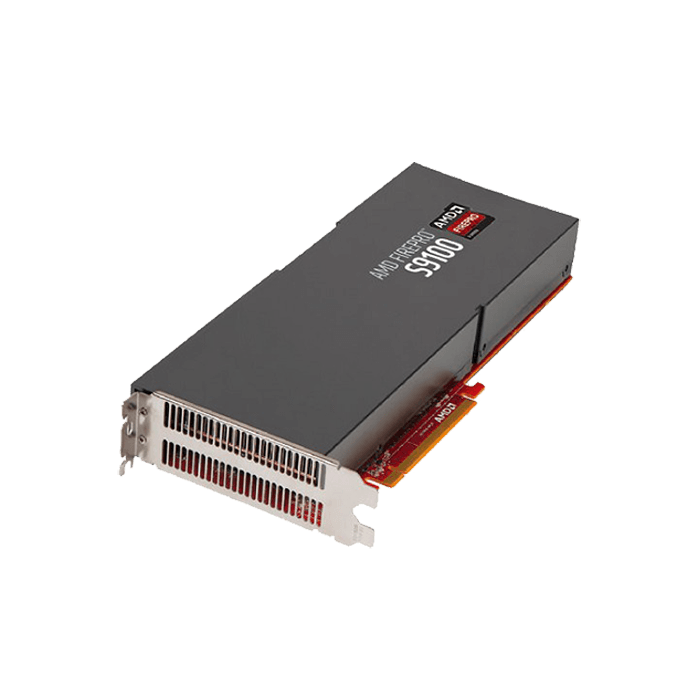

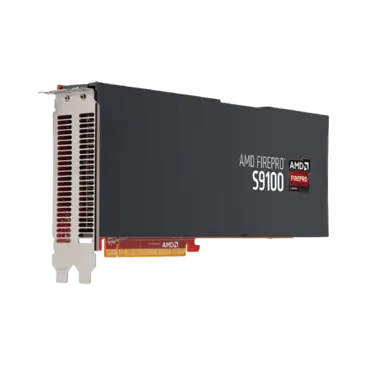

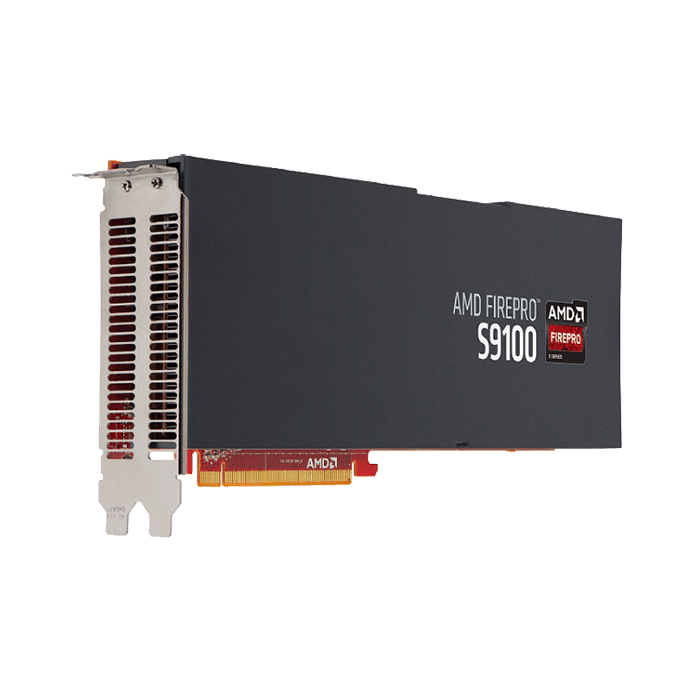

FirePro S9100, 12GB GDDR5, Passive Cooling, GPU Computing Accelerator

Compute-intensive workloads are no challenge for AMD FirePro™ S9100 server GPUs. With support for OpenCL™, 12GB GDDR5 memory and ECC memory support, up to 2.11 TFLOPS of peak double-precision floating- point performance and up to 9.4 GFLOPS per-watt peak double precision performance, it's clear the AMD FirePro™ S9100 is a high-performance computing powerhouse.

  • 2560 Stream Processors (40 CUs)
  • 12 GB GDDR5 memory
  • 512-bit memory interface
  • 320 GB/s memory bandwidth
  • 4.22 TFLOPS peak single-precision floating point
  • 2.11 TFLOPS peak double-precision floating point
  • Half-rate double precision
  • ECC memory support
  • AMD STREAM technology
  • AMD PowerTune technology

2560 Stream Processors
28 nm
Graphics Core Next (GCN)

Interface PCI-Express 3.0
Memory 512 bit Memory Bus
GDDR5 Memory Type
320 GB/s Bandwidth
12GB Size
Floating-Point 4.22 TFLOPS Single Precision Performance
2.11 TFLOPS Double Precision Performance
Resolution 4096*2160 Through Virtual Connector
API OpenGL® 4.4
OpenCL 2.0
OpenACC 2.0
OpenMP 4.0
DirectX® 12
Feature 1/2 Rate Double Precision
AMD PowerTune
ECC Memory Support (Error Correcting Code)
AMD STREAM Technology
Full 30-bit Display Pipeline
8, 10, 16-bit Per Pixel Color Component Output
Passive Cooling for zero-noise operation
Unified Driver Architecture
Cooling Heatsink
Form Factor 2 Part Slot Occupied
4.376*10.5 Dimension/Inch
Power Consumption 225 W
Regulation FCC, CE, C-Tick, BSMI, KCC, UL,VCCI, RoHS and WEEE
System Requirement

750 W Power Supply (Suggestion)
1 x Available PCI-Express X16 Slot
16384MB System Memory
1 x 8-pin AUX Power Connector
Microsoft® Windows® 8.1 , 7 (32/64-bit), Server 2008 R2 SP1, 2012 R2 or Linux® (32/64-bit)
15 CFM Airflow Cooling

PGS Retail Pack

1x Extender Bracket
