Focus G Mini, w/ Window, No PSU, microATX, Black, Mini Tower Case
- SKU: 11340393
- Manufacturer: Fractal Design
- MPN: FD-CA-FOCUS-MINI-BK-W
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

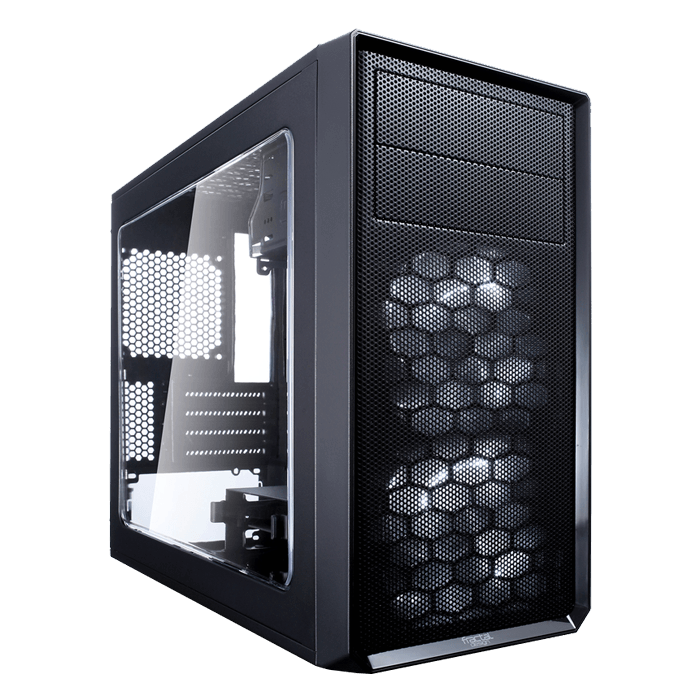

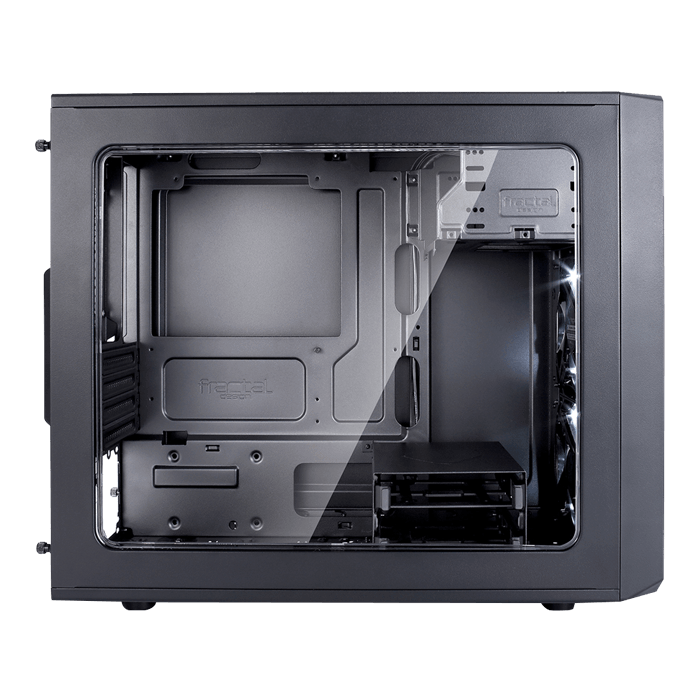

- Large windowed side panel
- Two preinstalled Fractal Design Silent Series LL 120mm White LED fans
- Six total fan positions for high-airflow capability
- Filtered front, top and base air intakes for a dust free interior
- Support for high-profile CPU coolers and multiple radiator configurations
- 18 - 25 mm of space for cable routing behind the motherboard plate
- Support for graphics cards up to 380 mm long without compromising hard drive space
- Two vibration dampened universal drive bays with support for6TB+ HDDs and 15mm SSDs, plus an additional 2.5" mount behind the motherboard tray
- Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
- Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included
|
Colors available |
Black |
|
Side panel window |
Large |
|
3.5" or 2.5" Drive capacity |
2 |
|
Dedicated 2.5" drive capacity |
1 |
|
Expansion slots |
4 |
|
Motherboard compatibility |
mATX, ITX |
|
Power supply type |
ATX |
|
Total fan mounts |
6 |
|
Front fan |
2x 120 or 1x 140 2x Silent Series LL 120mm LED fans included |
|
Top fan |
2x 120 |
|
Rear fan |
1x 120 |
|
Bottom fan |
1x 120 |
|
Side fan |
No |
|
Dust filters |
Top fans Bottom fan + PSU Front fans |
|
Front radiator |
120/240mm 140mm Limitation: 240 requires that the bottom 5.25" slot is unused |
|
Top radiator |
240mm |
|
Rear radiator |
120mm (max width 120mm) |
|
Power supply depth limit |
Maximum 230mm |
|
Graphics card length limit |
380mm |
|
CPU cooler height limit |
165mm |
|
Cable routing |
18-25 mm space |
|
Cable routing grommets |
No |
|
Fixed velcro straps |
No |
|
Padlock and Kensington lock support |
Yes |
|
Captive thumbscrews |
Both side panels |
|
Dimension (WxHxD) |
195x370x450 mm |
|
Volume |
32.5 L |
|
Weight |
4.1 kg |
