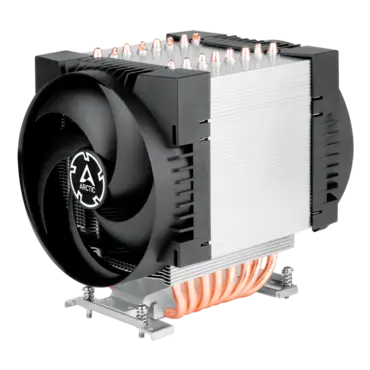

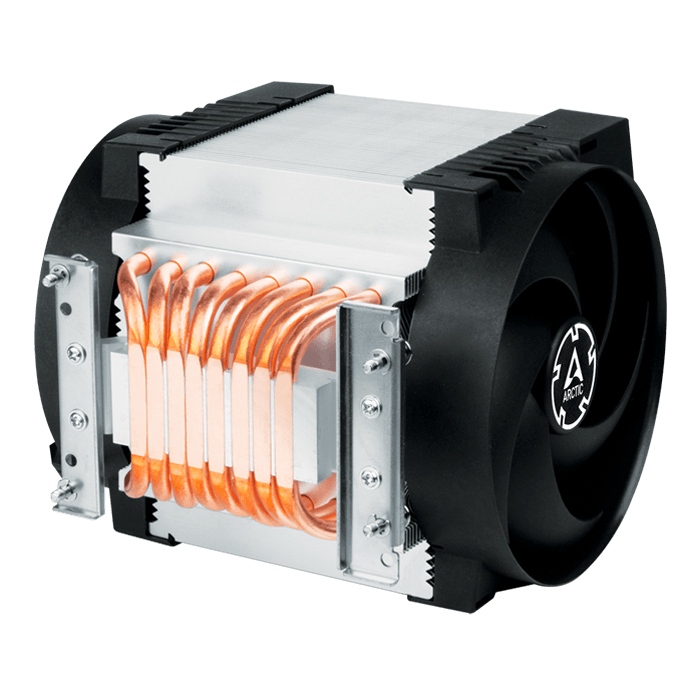

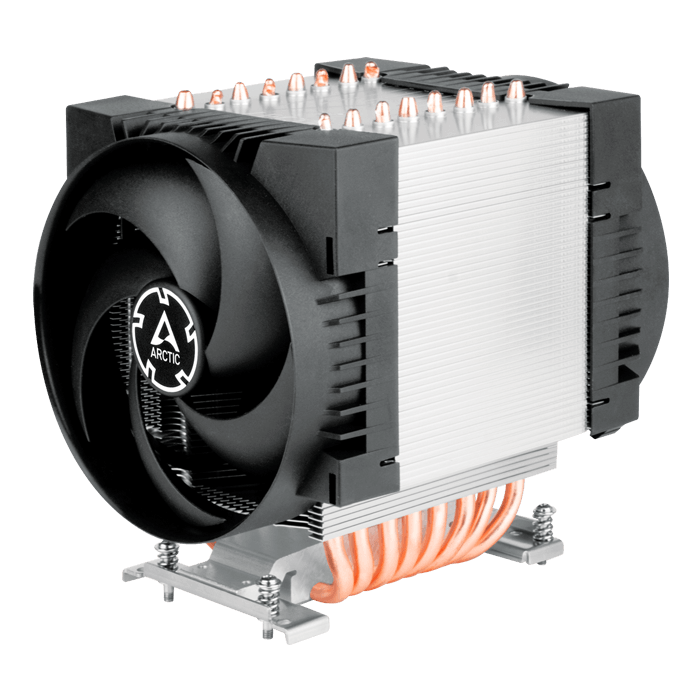

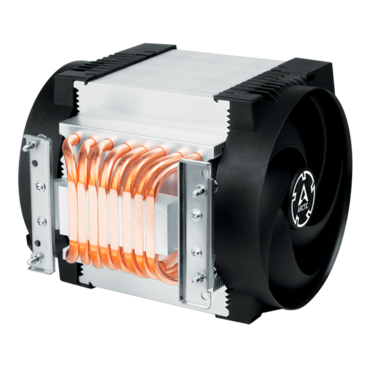

Freezer 4U SP3, 152mm Height, 300W TDP, Copper/Aluminum CPU Cooler

  • SKU: 14844917
  • Manufacturer: ARCTIC
  • MPN: ACFRE00081A
Starting At
General Specifications
Compatibillity AMD: SP3, TR4, sTRX4
Server Rack Unit 4U & up
Heatsink Single Tower Aluminum Heatsink
Fan 2x 120mm PWM Fans
TIM ARCTIC MX-5 0.8 g Syringe incl.
Noise Level 40 dBA
Thermal Resistance 0.134 (°C/W)
Maximum TDP 300 W
Dimensions 124 mm (L) x 156 mm (W) x 152 (H) mm
Input Power 2.88 W
Box Contents Freezer 4U SP3, MX-5 0.8g
Fan Specifications
Speed 400–2300 rpm ± 10%
RPM Control Pulse Wide Modulation
Connector 4-Pin 2510 Connector
Cable Length 200 mm
Bearing Dual Ball Bearing
Air Flow 71.9 cfm | 122.16 m3/h
Static Pressure 3.3 mm/H2O
Single Fan Current 0.12 A
Single Fan Voltage 12 V DC
Operating Temperature 0–40 °C
Heatsink Specifications
Heat Pipe Direct Touch, Ø 6 mm x 8
Number of Fins 59
Fin Thickness 0.4 mm
Fin Material Aluminum
Weight 1288 g
Shipping Information
Box Dimension 163 mm (L) x 127 mm (W) x 164 (H) mm
Gross Weight 1435 g
VPE - CT 12
EAN 4895213703543
UPC 840033401357
