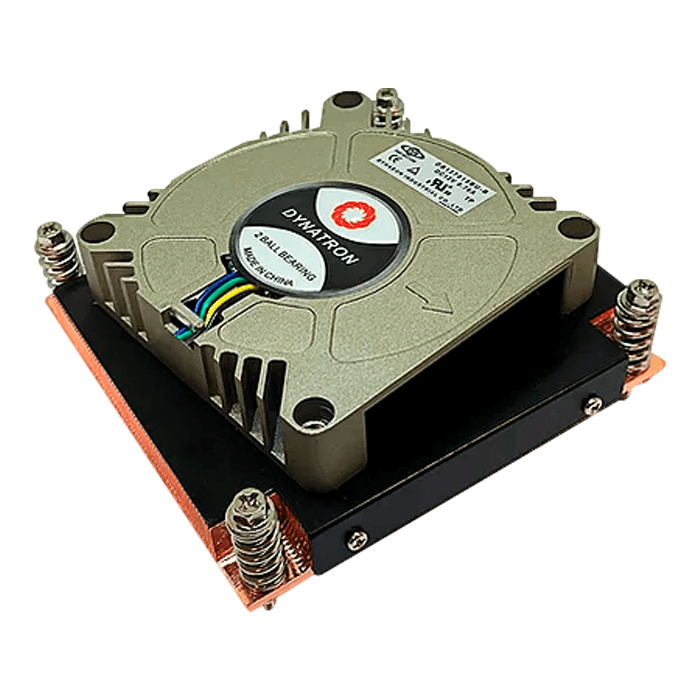

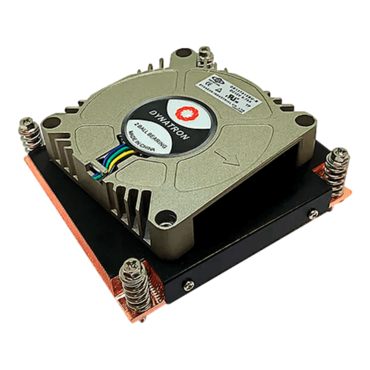

G199 Socket 1366 Active 1U CPU Cooler, 6000 RPM, Copper

SKU: 2016958

Manufacturer: DYNATRON

MPN: G199

Availability: Available


Price: $30.88
or as low as $1.00/month
Quantity:

The Dynatron G199 CPU cooler is designed for G199

CPU Support

Intel

CPU Socket

LGA 1356/1366

Solution

1U Server

Dimensions

90.0mm x 90.0mm x 27.8mm

Weight

475g ±5g

Material

Copper Heatsink with Skiving Fins

Fan Dimension

70mm x 70mm x 16mm

Speed

At Duty Cycle 20%: 1100+ 10%RPM
At Duty Cycle 50%: 2600+ 10%RPM
At Duty Cycle 100%: 6000+ 10%RPM

Bearing

2 Ball Bearing

Rated Voltage

12V

Power

At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 8.76 W

Air Flow

At Duty Cycle 20%: 2.45 CFM
At Duty Cycle 50%: 5.80 CFM
At Duty Cycle 100%: 14.32 CFM

Noise Level

At Duty Cycle 20%: 19.1 dBA
At Duty Cycle 50%: 34.2 dBA
At Duty Cycle 100%: 53.8 dBA

Static Pressure

At Duty Cycle 20%: 1.252mm-H2O
At Duty Cycle 50%: 6.997mm-H2O
At Duty Cycle 100%: 50.458mm-H2O

Lead Wire Pin Out

Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
